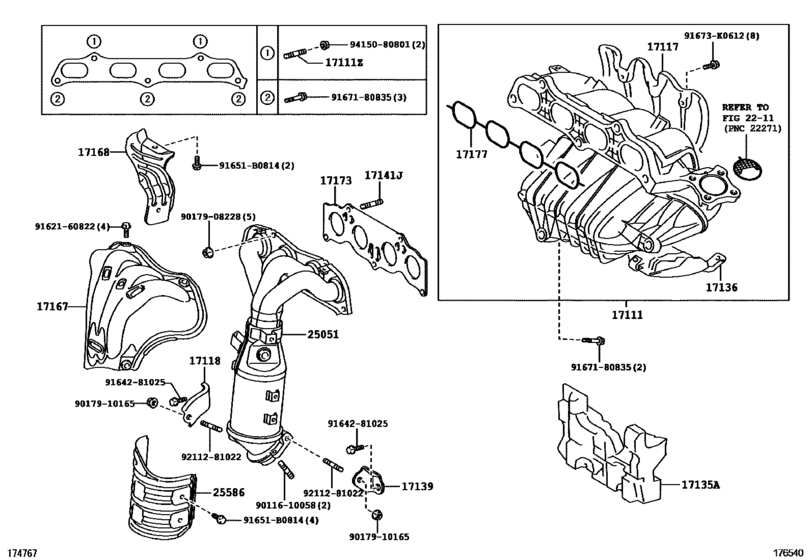

Manifold ([08.2009 - ] (0908- )2AZFE) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17120-28140 Manifold, Intake[08.2009 - 12.2011] 2AZFE..ACV40 |
17120-28140 |
US $511.06 |
||
| replacement | |||||
|
17111
|
17111
17120-28141 Manifold, Intake[08.2009 - 12.2011] 2AZFE..ACV40 |
17120-28141 |
US $385.84 |
||
|
17111
|
17111
17120-28141 Manifold, Intake[01.2012 -] 2AZFE..ACV40 |
17120-28141 |
US $385.84 |
||
|
17111Z
|
17111Z
90126-08026 Bolt, Stud(For Intake Manifold To Cylinder Head)[08.2009 -] 2AZFE..ACV40 |
90126-08026 |
from US $2.32 |
||
|
17117
|
17117
17117-28040 Insulator, Intake Pipe[08.2009 -] 2AZFE..ACV40 |
17117-28040 |
US $47.61 |
||
|
17118
|
17118
17118-28080 Stay, Manifold[08.2009 -] 2AZFE..ACV40 |
17118-28080 |
US $22.01 |
||
|
17135A
|
17135A
17135-28011 Insulator, Intake Manifold, No.1[08.2009 -] 2AZFE..ACV40 |
17135-28011 |
US $57.80 |
||
|
17136
|
17136
17136-28020 Insulator, Intake Manifold, No.2[08.2009 -] 2AZFE..ACV40 |
17136-28020 |
US $92.60 |
||
|
17139
|
17139
17139-28050 Stay, Manifold, No.2[08.2009 -] 2AZFE..ACV40 |
17139-28050 |
US $13.80 |
||
|
17141J
|
17141J
90126-08037 Bolt, Stud(For Oil Strainer)[08.2009 -] 2AZFE..ACV40 |
90126-08037 |
from US $3.59 |
||
|
17167
|
17167
17167-28060 Insulator, Exhaust Manifold Heat, No.1[08.2009 -] 2AZFE..ACV40 |
17167-28060 |
from US $89.41 |
||
|
17168
|
17168
17168-28030 Insulator, Exhaust Manifold Heat, No.2[08.2009 -] 2AZFE..ACV40 |
17168-28030 |
US $33.49 |
||
|
17173
|
17173
17173-28010 Gasket, Exhaust Manifold To Head[08.2009 -] 2AZFE..ACV40 |
17173-28010 |
from US $18.58 |
||
|
17177
|
17177
17177-28010
Gasket, Intake Manifold To Head, No.1
[08.2009 - 12.2011] 2AZFE..ACV40 |
17177-28010 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-28031 Gasket, Intake Manifold To Head, No.1[08.2009 - 12.2011] 2AZFE..ACV40 |
17177-28031 |
from US $6.99 |
||
|
17177
|
17177
17177-28031 Gasket, Intake Manifold To Head, No.1[01.2012 -] 2AZFE..ACV40 |
17177-28031 |
from US $6.99 |
||
|
25051
|
25051
25051-28330 Converter Sub-Assy, Exhaust ManifoldEXHAUST MANIFOLD [08.2009 -] 2AZFE..ACV40 *114=TOYOTA/28330/Y |
25051-28330 |
US $978.43 |
||
|
25586
|
25586
25586-28090 Insulator, Manifold Converter, No.1[08.2009 -] 2AZFE..ACV40 |
25586-28090 |
from US $27.87 |
||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
|
91673K0612
|
91673K0612
91673-K0612 New Genuine Part |
91673-K0612 |
US $0.73 |
||
|
9011610058
|
9011610058
90116-10058 Bolt, Stud(For Manifold Extension) |
90116-10058 |
from US $2.26 |
||
|
9017908228
|
9017908228
90179-08228 NUT |
90179-08228 |
from US $0.80 |
||
|
9017910165
|
9017910165
90179-10165 NUT |
90179-10165 |
from US $0.95 |
||
|
9162160822
|
9162160822
91621-60822 Bolt, W/washer(For Repair Actuator Set) |
91621-60822 |
US $1.61 |
||
|
9164281025
|
9164281025
91642-81025 BOLT WWASHER |
91642-81025 |
from US $0.95 |
||
|
9167180835
|
9167180835
91671-80835 Bolt, Compressor, No.1 |
91671-80835 |
US $1.79 |
||
|
9211281022
|
9211281022
92112-81022 BOLT STUD |
92112-81022 |
US $1.43 |
||
|
9415080801
|
9415080801
94150-80801 Nut |
94150-80801 |
US $1.43 |
||
