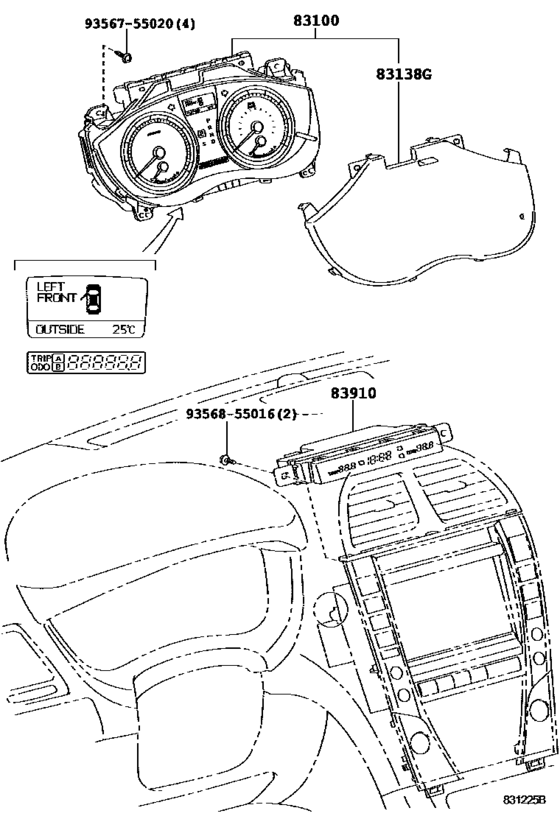

Meter ([05.2006 - ] (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83800-33J50
Meter Assy, Combination
[08.2009 - 03.2010] ACV40 |
83800-33J50 |
— | ||
| replacement | |||||
|
83100
|
83100
83800-33J51
Meter Assy, Combination
[08.2009 - 03.2010] ACV40 |
83800-33J51 |
— | ||
|
83100
|
83100
83800-33J51
Meter Assy, Combination
[04.2010 -] ACV40 |
83800-33J51 |
— | ||
|
83100
|
83100
83800-33L30
Meter Assy, Combination
[08.2010 -] ACV40 TAIWAN SPEC |
83800-33L30 |
— | ||
|
83138G
|
83138G
83852-33B70
Glass, Combination Meter
[08.2009 -] ACV40,GSV40 |
83852-33B70 |
— | ||
|
83910
|
83910
83910-33200
Clock Assy
[08.2009 - 06.2012] GSV40..CHI; GSV40..CHI TAIWAN SPEC&AUDIO-AM/FM 6CD-CHANGER 8SP; GSV40..CHI AUDIO-AM/FM 6CD-CHANGER 8SP; ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP; GSV40..CHI RUS |
83910-33200 |
— | ||
|
9356755020
|
9356755020
93567-55020 SCREW |
93567-55020 |
US $1.25 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.49 |
||
