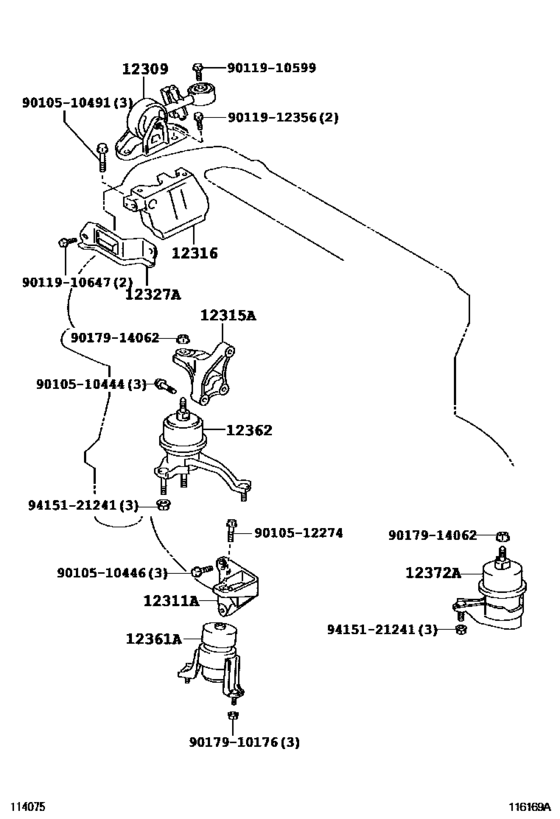

Mounting ([08.2009 - ] (0908- )2AZFE) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12309
|
12309
12309-28160
Rod Sub-Assy, Engine Moving Control
[08.2009 - 10.2010] 2AZFE..ACV40 |
12309-28160 |
— | ||
| replacement | |||||
|
12309
|
12309
12309-28161 Rod Sub-Assy, Engine Moving Control[08.2009 - 10.2010] 2AZFE..ACV40 |
12309-28161 |
from US $88.92 |
||
|
12309
|
12309
12309-28161 Rod Sub-Assy, Engine Moving Control[11.2010 -] 2AZFE..ACV40 |
12309-28161 |
from US $88.92 |
||
|
12311A
|
12311A
12311-28210 Bracket, Engine Mounting, Front(For Transverse Engine)[08.2009 -] 2AZFE..ACV40 |
12311-28210 |
US $38.29 |
||
|
12315A
|
12315A
12315-28070 Bracket, Engine Mounting, Rh(For Transverse Engine)[08.2009 -] 2AZFE..ACV40 |
12315-28070 |
US $42.52 |
||
|
12316
|
12316
12316-28061
Bracket, Engine Mounting, No.2 Rh
[08.2009 -] 2AZFE..ACV40 |
12316-28061 |
— | ||
|
12327A
|
12327A
12327-28030 Stay, Engine Mounting, No.2 Rh[08.2009 -] 2AZFE..ACV40 |
12327-28030 |
US $16.60 |
||
|
12361A
|
12361A
12361-28220
Insulator, Engine Mounting, Front(For Transverse Engine)
[08.2009 - 09.2009] 2AZFE..ACV40 |
12361-28220 |
— | ||
| replacement | |||||
|
12361A
|
12361A
12361-28221 Insulator, Engine Mounting, Front(For Transverse Engine)ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) [08.2009 - 09.2009] 2AZFE..ACV40 |
12361-28221 |
from US $179.23 |
||
|
12361A
|
12361A
12361-28221 Insulator, Engine Mounting, Front(For Transverse Engine)ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) [10.2009 -] 2AZFE..ACV40 |
12361-28221 |
from US $179.23 |
||
|
12362
|
12362
12362-36030 Insulator, Engine Mounting, Rh(For Transverse Engine)ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) [08.2009 -] 2AZFE..ACV40 |
12362-36030 |
from US $166.04 |
||
|
12372A
|
12372A
12372-28200 Insulator, Engine Mounting, Lh(For Transverse Engine)[08.2009 -] 2AZFE..ACV40 |
12372-28200 |
from US $96.37 |
||
|
9010510444
|
9010510444
90105-10444 Shaft, Clutch Pedal |
90105-10444 |
from US $1.31 |
||
|
9010510446
|
9010510446
90105-10446 New Genuine Part |
90105-10446 |
US $1.60 |
||
|
9010510491
|
9010510491
90105-10491 BOLT FLANGE |
90105-10491 |
US $3.49 |
||
|
9010512274
|
9010512274
90105-12274 BOLTWASHER BASED |
90105-12274 |
from US $1.52 |
||
|
9011910599
|
9011910599
90119-10599 BOLT WWASHER |
90119-10599 |
US $3.30 |
||
|
9011910647
|
9011910647
90119-10647 BOLT WWASHER |
90119-10647 |
US $3.40 |
||
|
9011912356
|
9011912356
90119-12356 BOLT WWASHER |
90119-12356 |
US $3.49 |
||
|
9017910176
|
9017910176
90179-10176 NUT |
90179-10176 |
US $2.69 |
||
|
9017914062
|
9017914062
90179-14062 Nut (For Steering Knuckle Rh) |
90179-14062 |
from US $1.12 |
||
|
9415121241
|
9415121241
94151-21241 Nut(For Front Stabilizer Link) |
94151-21241 |
from US $0.93 |
||
