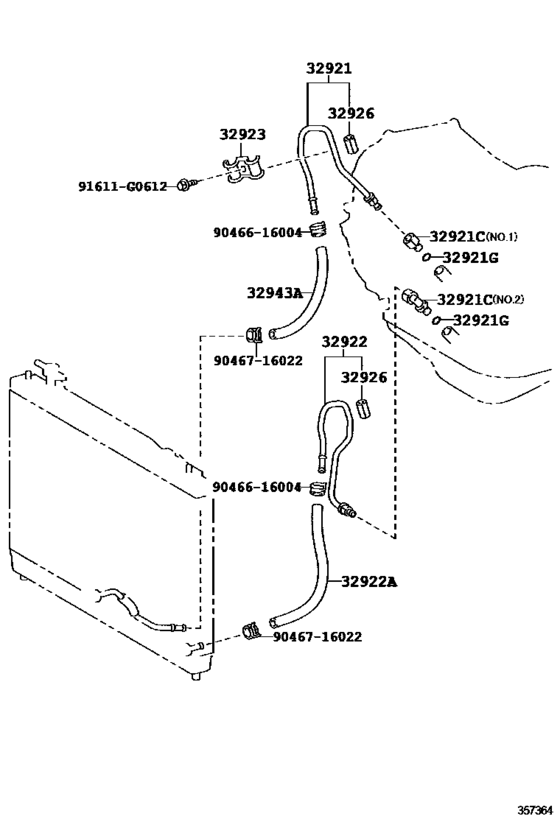

Oil Cooler & Tube (Atm) ([08.2009 - ] U250E (0908- )ACV40) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32921
|
32921
32921-33160 Tube, Oil Cooler Inlet, No.1[08.2009 -] ACV40 |
32921-33160 |
US $13.83 |
||
|
32921C
|
32921C
90404-16031 Union(For Transaxle Housing)[08.2009 -] ACV40 NO.1 |
90404-16031 |
US $6.09 |
||
|
32921C
|
32921C
90407-16010 Union(For Oil Cooler Tube)[08.2009 -] ACV40 NO.2 |
90407-16010 |
US $9.50 |
||
|
32921G
|
32921G
90301-10189 Ring, O(For Oil Cooler Tube Union)[08.2009 -] ACV40 |
90301-10189 |
from US $2.57 |
||
|
32922
|
32922
32922-33160 Tube, Oil Cooler Outlet, No.1[08.2009 -] ACV40 |
32922-33160 |
US $13.83 |
||
|
32922A
|
32922A
90445-17128 Hose(For Oil Cooler Inlet)[08.2009 -] ACV40 |
90445-17128 |
from US $14.69 |
||
|
32923
|
32923
90462-12074 Clamp, Automatic Transmission Oil Cooler Tube[08.2009 -] ACV40 |
90462-12074 |
US $3.14 |
||
|
32926
|
32926
32926-30020 Cushion, Oil Cooler Tube(Atm)[08.2009 -] ACV40 L=35,ID=10 |
32926-30020 |
US $3.05 |
||
|
32943A
|
32943A
32943-33140 Hose(For Oil Cooler Inlet)[12.2009 -] ACV40 |
32943-33140 |
US $15.29 |
||
| replacement | |||||
|
32943A
|
32943A
90445-17117 Hose(For Oil Cooler Inlet)[12.2009 -] ACV40 |
90445-17117 |
from US $15.05 |
||
|
32943A
|
32943A
32943-33260 Hose(For Oil Cooler Inlet)[08.2009 - 11.2009] ACV40 |
32943-33260 |
US $15.29 |
||
| replacement | |||||
|
32943A
|
32943A
90445-17117 Hose(For Oil Cooler Inlet)[08.2009 - 11.2009] ACV40 |
90445-17117 |
from US $15.05 |
||
|
91611G0612
|
91611G0612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
9046616004
|
9046616004
90466-16004 Clip(For Ventilation Hose No.2) |
90466-16004 |
from US $1.81 |
||
|
9046716022
|
9046716022
90467-16022 Clip(For Water Inlet Hose) |
90467-16022 |
from US $2.26 |
||
