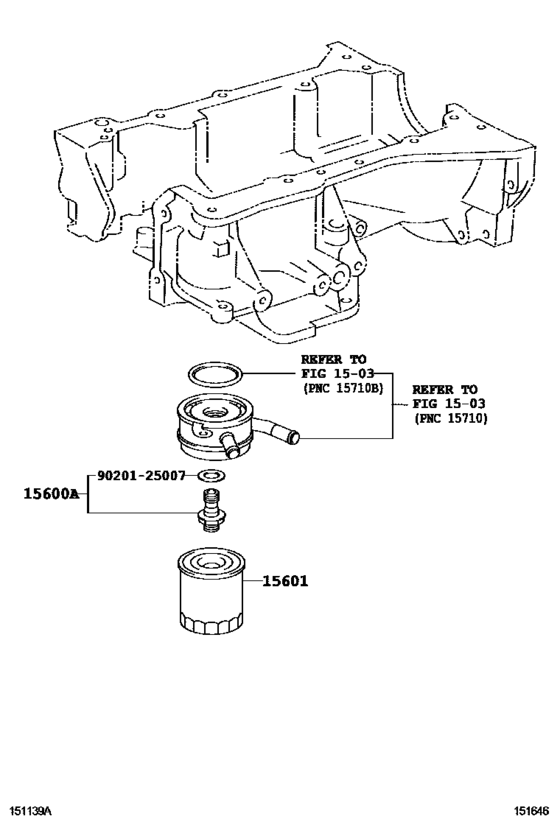

Oil Filter ([08.2009 - ] (0908- )2AZFE) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15600A
|
15600A
15695-28010 Union(For Oil Filter)[08.2009 -] 2AZFE..ACV40 |
15695-28010 |
US $16.07 |
||
|
15601
|
15601
90915-10004 Filter Sub-Assy, Oil (China-Thailand)[08.2009 -] 2AZFE..ACV40 |
90915-10004 |
from US $14.59 |
||
| replacement | |||||
|
15601
|
15601
90915-YZZE2 OIL FILTER[08.2009 -] 2AZFE..ACV40 |
90915-YZZE2 |
US $6.76 |
||
|
9020125007
|
9020125007
90201-25007 WASHER PLATE |
90201-25007 |
from US $0.59 |
||
