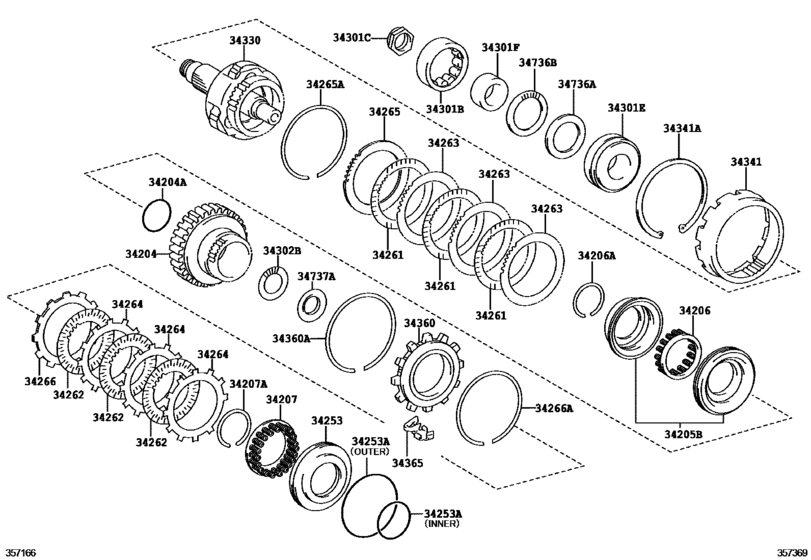

Overdrive Gear (Atm) ([08.2009 - ] U250E (0908- )ACV40) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34204
|
34204
34204-28020 Drum Sub-Assy, Underdrive Clutch[08.2009 -] ACV40 |
34204-28020 |
US $267.90 |
||
|
34204A
|
34204A
90301-44004 Ring, O (For Underdrive Clutch Drum)[08.2009 -] ACV40 |
90301-44004 |
from US $2.18 |
||
|
34205B
|
34205B
34205-28020 Piston Set, Underdrive Clutch[08.2009 -] ACV40 |
34205-28020 |
US $59.23 |
||
|
34206
|
34206
34206-32010 Spring Sub-Assy, Underdrive Clutch Return[08.2009 -] ACV40 |
34206-32010 |
from US $7.28 |
||
|
34206A
|
34206A
90520-46011 Ring, Shaft Snap (For Underdrive Return Spring)[08.2009 -] ACV40 |
90520-46011 |
US $1.60 |
||
|
34207
|
34207
34207-21010 Spring Sub-Assy, Underdrive Brake Return[08.2009 -] ACV40 |
34207-21010 |
US $10.20 |
||
|
34207A
|
34207A
90520-59004 Ring, Snap (For Underdrive Brake Return Spring)[08.2009 -] ACV40 |
90520-59004 |
from US $1.51 |
||
|
34253
|
34253
34253-28010 Piston, Underdrive Brake[08.2009 -] ACV40 |
34253-28010 |
US $17.47 |
||
|
34253A
|
34253A
90301-62007 Ring, O (For Underdrive Brake Piston)[08.2009 -] ACV40 INNER |
90301-62007 |
US $2.80 |
||
|
34253A
|
34253A
90301-99084 Ring, O (For Underdrive Brake Piston)[08.2009 -] ACV40 OUTER |
90301-99084 |
from US $2.62 |
||
|
34261
|
34261
34261-28040 Disc, Underdrive Clutch, No.1[08.2009 -] ACV40 |
34261-28040 |
from US $22.15 |
||
|
34262
|
34262
34262-33020 Disc, Underdrive Clutch, No.2[08.2009 -] ACV40 |
34262-33020 |
from US $22.71 |
||
|
34263
|
34263
34263-28020 Plate, Underdrive Clutch, No.1[08.2009 -] ACV40 |
34263-28020 |
from US $10.13 |
||
|
34264
|
34264
34264-28020 Plate, Underdrive Clutch, No.2[08.2009 -] ACV40 |
34264-28020 |
from US $9.26 |
||
|
34265
|
34265
34265-32010 Flange, Underdrive Clutch, No.1[08.2009 -] ACV40 T=3.0 MARK A |
34265-32010 |
from US $19.36 |
||
|
34265
|
34265
34265-32020 Flange, Underdrive Clutch, No.1[08.2009 -] ACV40 T=3.2 MARK B |
34265-32020 |
from US $19.36 |
||
|
34265
|
34265
34265-32030 Flange, Underdrive Clutch, No.1[08.2009 -] ACV40 T=3.4 MARK C |
34265-32030 |
US $19.36 |
||
|
34265
|
34265
34265-33030 Flange, Underdrive Clutch, No.1[08.2009 -] ACV40 T=3.1 MARK G |
34265-33030 |
US $19.36 |
||
|
34265
|
34265
34265-33040 Flange, Underdrive Clutch, No.1[08.2009 -] ACV40 T=3.3 MARK H |
34265-33040 |
US $19.36 |
||
|
34265A
|
34265A
90520-99041 Ring, Hole Snap (For Underdrive Clutch Flange No.1)[08.2009 -] ACV40 |
90520-99041 |
US $2.48 |
||
|
34266
|
34266
34266-32010 Flange, Underdrive Clutch, No.2[08.2009 -] ACV40 T=3.0 |
34266-32010 |
US $19.36 |
||
|
34266
|
34266
34266-32020 Flange, Underdrive Clutch, No.2[08.2009 -] ACV40 T=3.2 |
34266-32020 |
from US $19.36 |
||
|
34266
|
34266
34266-32030 Flange, Underdrive Clutch, No.2[08.2009 -] ACV40 T=3.4 |
34266-32030 |
US $19.36 |
||
|
34266A
|
34266A
90520-99041 Ring, Hole Snap (For Underdrive Clutch Flange No.1)[08.2009 -] ACV40 |
90520-99041 |
US $2.48 |
||
|
34301B
|
34301B
90365-48001 Bearing, Cylindrical Roller, No.1 (For Underdrive)[08.2009 -] ACV40 |
90365-48001 |
US $37.13 |
||
|
34301C
|
34301C
90179-32002 Nut (For Underdrive Input Shaft)[08.2009 -] ACV40 |
90179-32002 |
from US $1.37 |
||
|
34301E
|
34301E
90369-43016
Bearing, Tapered Roller (For Underdrive)
[08.2009 -] ACV40 |
90369-43016 |
— | ||
|
34301F
|
34301F
34733-32011 Race, Cylindrical Roller Bearing, Inner[08.2009 -] ACV40 |
34733-32011 |
from US $14.85 |
||
|
34302B
|
34302B
90374-40003 Bearing, Needle Roller(For Underdrive Planetary Sun Gear)[08.2009 -] ACV40 |
90374-40003 |
from US $13.26 |
||
|
34330
|
34330
34330-28020 Gear Assy, Underdrive Planetary[08.2009 -] ACV40 |
34330-28020 |
US $802.26 |
||
|
34341
|
34341
34341-28020 Gear, Underdrive Planetary Ring[08.2009 -] ACV40 |
34341-28020 |
from US $97.55 |
||
|
34341A
|
34341A
90521-99121 Ring, Hole Snap (For Underdrive Planetary Ring)[08.2009 -] ACV40 |
90521-99121 |
from US $2.48 |
||
|
34360
|
34360
34360-28020 Clutch Assy, Underdrive 1 Way[08.2009 -] ACV40 |
34360-28020 |
US $221.31 |
||
|
34360A
|
34360A
90520-99040 Ring, Shaft Snap (For Underdrive 1 Way Clutch)[08.2009 -] ACV40 |
90520-99040 |
US $3.20 |
||
|
34365
|
34365
34365-32011
Retainer, Outer Race
[08.2009 -] ACV40 |
34365-32011 |
— | ||
|
34736A
|
34736A
34736-32010 Race, Thrust Bearing Underdrive, No.2[08.2009 -] ACV40 T=3.5 |
34736-32010 |
from US $20.68 |
||
|
34736A
|
34736A
34736-32020 Race, Thrust Bearing Underdrive, No.2[08.2009 -] ACV40 T=3.8 |
34736-32020 |
from US $22.57 |
||
|
34736B
|
34736B
90374-53004 Bearing, Thrust Needle Roller[08.2009 -] ACV40 |
90374-53004 |
from US $14.54 |
||
|
34737A
|
34737A
34737-21010 Race, Thrust Bearing Underdrive, No.3[08.2009 -] ACV40 |
34737-21010 |
US $11.07 |
