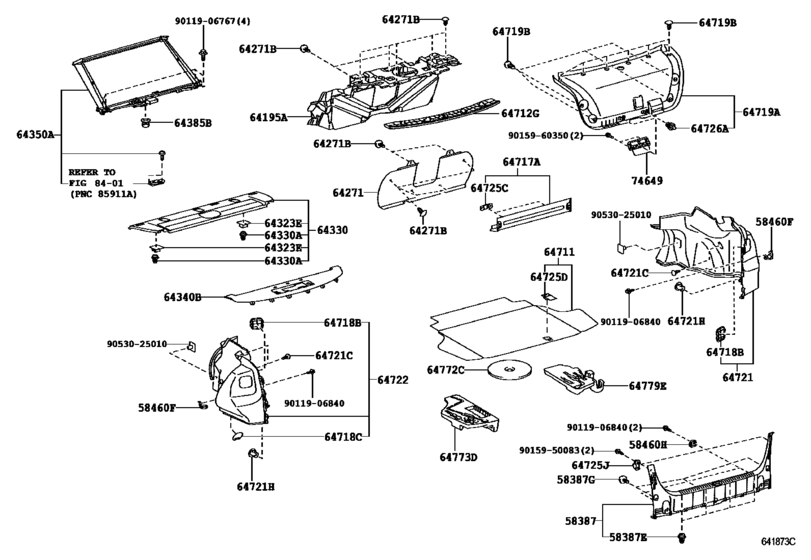

Package Tray Panel & Luggage Compartment Mat ([05.2006 - ] (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58387
|
58387
58387-33100-C0
Plate, Rear Floor Finish
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM0#,1#,2# |
58387-33100-C0 |
— | ||
| replacement | |||||
|
58387
|
58387
58387-33101-C0
Plate, Rear Floor Finish
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM0#,1#,2# |
58387-33101-C0 |
— | ||
|
58387E
|
58387E
90467-10161 Clip[08.2009 -] ACV40,GSV40 |
90467-10161 |
from US $0.87 |
||
|
58387G
|
58387G
90467-08186-C0 Clip(For Front Bumper), No.1[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM0#,1#,2# |
90467-08186-C0 |
from US $0.87 |
||
|
58460F
|
58460F
58460-33020 Striker Assy, Luggage Hold Belt[08.2009 -] ACV40,GSV40 |
58460-33020 |
from US $10.37 |
||
|
58460H
|
58460H
58460-33020 Striker Assy, Luggage Hold Belt[08.2009 -] ACV40,GSV40 |
58460-33020 |
from US $10.37 |
||
|
64195A
|
64195A
64195-33060 Insulator, Room Partition PanelROOM PARTITION PANEL [08.2009 -] ACV40,GSV40 |
64195-33060 |
US $124.20 |
||
|
64271
|
64271
64271-33090-C1
Board, Room Partition, No.1
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM0#,1#,2# |
64271-33090-C1 |
— | ||
| replacement | |||||
|
64271
|
64271
64271-33091-C1
Board, Room Partition, No.1
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM0#,1#,2# |
64271-33091-C1 |
— | ||
|
64271B
|
64271B
90467-08186-C0 Clip(For Front Bumper), No.1[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM0#,1#,2# |
90467-08186-C0 |
from US $0.87 |
||
|
64323E
|
64323E
64323-33040
Clamp, Package Tray Trim
[08.2009 -] ACV40,GSV40 |
64323-33040 |
— | ||
|
64330
|
64330
64330-33650-C0
Panel Assy, Package Tray Trim
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM1#,2# |
64330-33650-C0 |
— | ||
| replacement | |||||
|
64330
|
64330
64330-33651-C0
Panel Assy, Package Tray Trim
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM1#,2# |
64330-33651-C0 |
— | ||
|
64330
|
64330
64330-33650-E0
Panel Assy, Package Tray Trim
[08.2009 - 06.2012] ACV40,GSV40 ORCHID BROWN,TRIM0# |
64330-33650-E0 |
— | ||
| replacement | |||||
|
64330
|
64330
64330-33651-E0
Panel Assy, Package Tray Trim
[08.2009 - 06.2012] ACV40,GSV40 ORCHID BROWN,TRIM0# |
64330-33651-E0 |
— | ||
|
64330
|
64330
64330-33660-C0
Panel Assy, Package Tray Trim
[08.2009 - 08.2010] ACV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM1#,2# |
64330-33660-C0 |
— | ||
|
64330
|
64330
64330-33660-E0
Panel Assy, Package Tray Trim
[08.2009 - 08.2010] ACV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,ORCHID BROWN,TRIM0# |
64330-33660-E0 |
— | ||
|
64330A
|
64330A
90467-10161 Clip[08.2009 -] ACV40,GSV40 |
90467-10161 |
from US $0.87 |
||
|
64340B
|
64340B
64340-33030-C0
Panel Assy, Package Tray Trim, No.2
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM1#,2# |
64340-33030-C0 |
— | ||
| replacement | |||||
|
64340B
|
64340B
64340-33031-C0
Panel Assy, Package Tray Trim, No.2
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM1#,2# |
64340-33031-C0 |
— | ||
|
64340B
|
64340B
64340-33030-E0
Panel Assy, Package Tray Trim, No.2
[08.2009 - 06.2012] ACV40,GSV40 ORCHID BROWN,TRIM0# |
64340-33030-E0 |
— | ||
| replacement | |||||
|
64340B
|
64340B
64340-33031-E0
Panel Assy, Package Tray Trim, No.2
[08.2009 - 06.2012] ACV40,GSV40 ORCHID BROWN,TRIM0# |
64340-33031-E0 |
— | ||
|
64350A
|
64350A
64350-33070 Shade Assy, Rear WindowREAR WINDOW [08.2009 - 08.2010] ACV40,GSV40 |
64350-33070 |
US $1,238.33 |
||
|
64350A
|
64350A
64350-33071
Shade Assy, Rear Window
[08.2010 -] ACV40,GSV40 |
64350-33071 |
— | ||
|
64385B
|
64385B
90467-06121 Clip, Rear Bumper Side[08.2009 -] ACV40,GSV40 |
90467-06121 |
from US $2.95 |
||
|
64711
|
64711
64711-33210-C0
Mat, Luggage Compartment Floor
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM0#,1#,2# |
64711-33210-C0 |
— | ||
| replacement | |||||
|
64711
|
64711
64711-33211-C0
Mat, Luggage Compartment Floor
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM0#,1#,2# |
64711-33211-C0 |
— | ||
|
64712G
|
64712G
64712-33010
Garnish, Luggage Compartment, Upper
[08.2009 -] ACV40,GSV40 |
64712-33010 |
— | ||
|
64717A
|
64717A
64717-33060-C0 Cover, Luggage Compartment Trim, Front[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM0#,1#,2# |
64717-33060-C0 |
from US $70.76 |
||
|
64718B
|
64718B
64718-33010 Cover, Luggage Trim Service Hole[08.2009 -] ACV40,GSV40 |
64718-33010 |
from US $10.11 |
||
|
64718C
|
64718C
64718-22020-C0 Cover, Deck Trim Service HoleLUGGAGE TRIM SERVICE HOLE [08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM0#,1#,2# |
64718-22020-C0 |
from US $5.09 |
||
|
64719A
|
64719A
64719-33090-C0
Cover, Luggage Compartment Door
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM0#,1#,2# |
64719-33090-C0 |
— | ||
| replacement | |||||
|
64719A
|
64719A
64719-33091-C0
Cover, Luggage Compartment Door
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM0#,1#,2# |
64719-33091-C0 |
— | ||
|
64719B
|
64719B
90467-08186-C0 Clip(For Front Bumper), No.1[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM0#,1#,2# |
90467-08186-C0 |
from US $0.87 |
||
|
64721
|
64721
64721-33120-C1
Cover, Luggage Compartment Trim, Inner Rh
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM0#,1#,2# |
64721-33120-C1 |
— | ||
| replacement | |||||
|
64721
|
64721
64721-33121-C1
Cover, Luggage Compartment Trim, Inner Rh
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM0#,1#,2# |
64721-33121-C1 |
— | ||
|
64721C
|
64721C
90467-08186-C0 Clip(For Front Bumper), No.1[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM0#,1#,2# |
90467-08186-C0 |
from US $0.87 |
||
|
64721H
|
64721H
90467-12069 Clip(For Rear Floor Finish Plate)[08.2009 -] ACV40,GSV40 |
90467-12069 |
from US $1.48 |
||
|
64722
|
64722
64722-33140-C1
Cover, Luggage Compartment Trim, Inner Lh
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM0#,1#,2# |
64722-33140-C1 |
— | ||
| replacement | |||||
|
64722
|
64722
64722-33141-C1
Cover, Luggage Compartment Trim, Inner Lh
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM0#,1#,2# |
64722-33141-C1 |
— | ||
|
64725C
|
64725C
64725-33020 Retainer, Luggage Compartment Cover[08.2009 -] ACV40,GSV40 |
64725-33020 |
US $1.60 |
||
|
64725D
|
64725D
64725-30080-C0 Hook, Luggage Compartment Trim, No.1[08.2009 - 06.2012] ACV40,GSV40 BLACK |
64725-30080-C0 |
from US $14.52 |
||
|
64725J
|
64725J
64725-33061 Hook, Luggage Compartment Trim, No.1[08.2009 -] ACV40,GSV40 |
64725-33061 |
from US $14.12 |
||
|
64726A
|
64726A
90467-10161 Clip[08.2009 -] ACV40,GSV40 |
90467-10161 |
from US $0.87 |
||
|
64772C
|
64772C
64772-33101
Pad, Spare Wheel Cover
[08.2009 -] ACV40,GSV40 |
64772-33101 |
— | ||
|
64773D
|
64773D
64773-33090
Cover, Spare Wheel, No.2
[08.2009 -] ACV40,GSV40 |
64773-33090 |
— | ||
|
64779E
|
64779E
64779-33050
Tray, Spare Wheel Cover
[08.2009 -] ACV40,GSV40 |
64779-33050 |
— | ||
|
74649
|
74649
74649-51010-C0 Grip, Back Door AssistLUGGAGE COMPARTMENT DOOR ASSIST [08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM0#,1#,2# |
74649-51010-C0 |
from US $10.81 |
||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.67 |
||
|
9011906840
|
9011906840
90119-06840 BOLT WWASHER |
90119-06840 |
from US $0.65 |
||
|
9015950083
|
9015950083
90159-50083 SCREW |
90159-50083 |
from US $0.70 |
||
|
9015960350
|
9015960350
90159-60350 SCREW WWASHER |
90159-60350 |
US $1.08 |
||
|
9053025010
|
9053025010
90530-25010 Fastener, Hook |
90530-25010 |
from US $1.48 |
||
