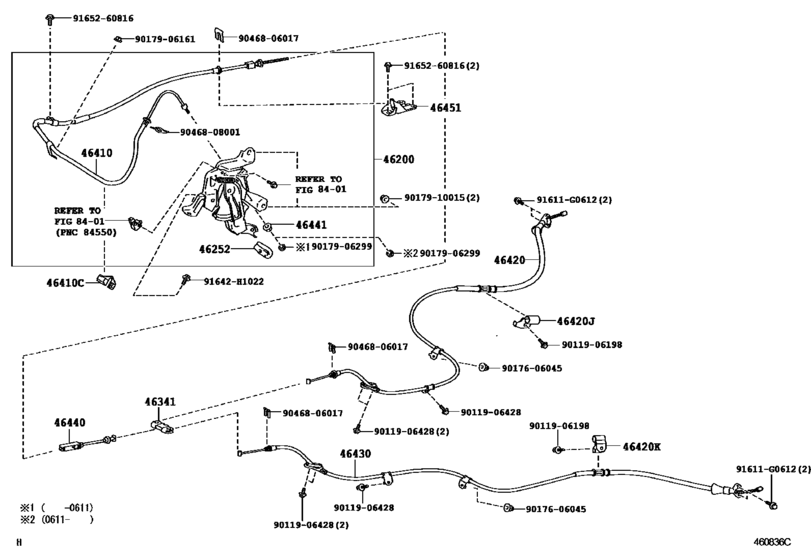

Parking Brake & Cable ([05.2006 - ] (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46200
|
46200
46200-33110
Pedal Assy, Parking Brake Control
[08.2009 -] ACV40,GSV40 |
46200-33110 |
— | ||
|
46252
|
46252
46252-22010 Pad, Parking Pedal[08.2009 -] ACV40,GSV40 |
46252-22010 |
from US $3.65 |
||
|
46341
|
46341
46341-33030 Equalizer, Parking Brake[08.2009 -] ACV40,GSV40 |
46341-33030 |
US $3.64 |
||
|
46410
|
46410
46410-33170
Cable Assy, Parking Brake, No.1
[08.2009 -] ACV40,GSV40 |
46410-33170 |
— | ||
|
46410C
|
46410C
46411-33010
Clamp(For Parking Brake Front Cable)
[08.2009 -] ACV40,GSV40 |
46411-33010 |
— | ||
|
46420
|
46420
46420-33170 Cable Assy, Parking Brake, No.2[08.2009 - 03.2012] ACV40,GSV40 |
46420-33170 |
US $61.01 |
||
| replacement | |||||
|
46420
|
46420
46420-33171 Cable Assy, Parking Brake, No.2[08.2009 - 03.2012] ACV40,GSV40 |
46420-33171 |
from US $46.16 |
||
|
46420
|
46420
46420-33171 Cable Assy, Parking Brake, No.2[04.2012 -] ACV40,GSV40 |
46420-33171 |
from US $46.16 |
||
|
46420J
|
46420J
90949-01C61 Clamp, No.1(For Parking Brake Cable)[08.2009 -] ACV40,GSV40 |
90949-01C61 |
US $3.79 |
||
|
46420K
|
46420K
90949-01C62 Clamp, No.2(For Parking Brake Cable)[08.2009 -] ACV40,GSV40 |
90949-01C62 |
US $3.79 |
||
|
46430
|
46430
46430-33170 Cable Assy, Parking Brake, No.3[08.2009 - 03.2012] ACV40,GSV40 |
46430-33170 |
US $61.01 |
||
| replacement | |||||
|
46430
|
46430
46430-33171 Cable Assy, Parking Brake, No.3[08.2009 - 03.2012] ACV40,GSV40 |
46430-33171 |
from US $46.16 |
||
|
46430
|
46430
46430-33171 Cable Assy, Parking Brake, No.3[04.2012 -] ACV40,GSV40 |
46430-33171 |
from US $46.16 |
||
|
46440
|
46440
46440-33061 Cable Assy, Parking Brake, No.4[08.2009 -] ACV40,GSV40 |
46440-33061 |
US $15.72 |
||
|
46441
|
46441
46441-12010 Nut, Wire Adjusting, No.1[08.2009 -] ACV40,GSV40 |
46441-12010 |
US $2.87 |
||
|
46451
|
46451
46451-33100 Bracket, Cable Support[08.2009 -] ACV40,GSV40 |
46451-33100 |
US $11.65 |
||
|
91611G0612
|
91611G0612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
91642H1022
|
91642H1022
91642-H1022 BOLT WWASHER |
91642-H1022 |
US $2.51 |
||
|
9011906198
|
9011906198
90119-06198 New Genuine Part |
90119-06198 |
US $1.24 |
||
|
9011906428
|
9011906428
90119-06428 New Genuine Part |
90119-06428 |
US $1.43 |
||
|
9017606045
|
9017606045
90176-06045 NUT, CAP CYL HEAD COVER |
90176-06045 |
from US $0.76 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.78 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.65 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.03 |
||
|
9046806017
|
9046806017
90468-06017 New Genuine Part |
90468-06017 |
US $0.83 |
||
|
9046808001
|
9046808001
90468-08001 CLIP |
90468-08001 |
US $3.76 |
||
|
9165260816
|
9165260816
91652-60816 New Genuine Part |
91652-60816 |
US $1.51 |
||
