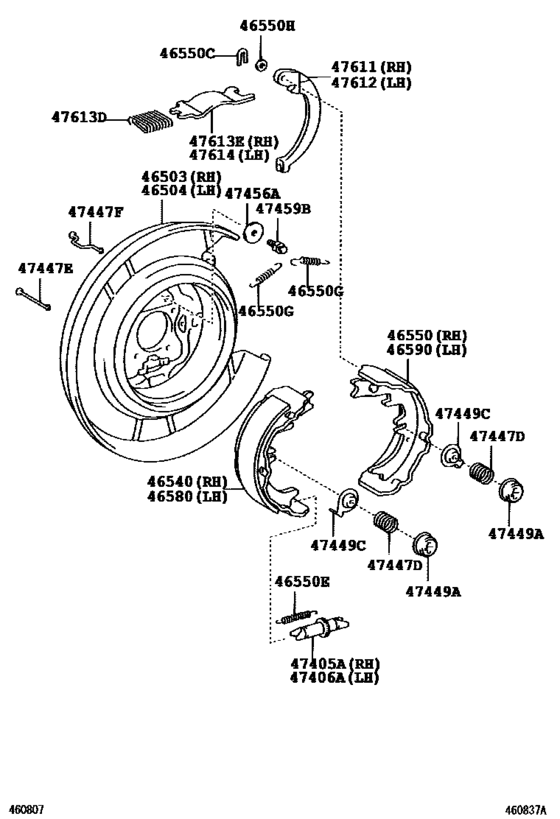

Parking Brake & Cable ([05.2006 - ] (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46503
|
46503
46503-33080 Plate Sub-Assy, Parking Brake, Rh[08.2009 -] ACV40,GSV40 |
46503-33080 |
US $244.80 |
||
|
46504
|
46504
46504-33080 Plate Sub-Assy, Parking Brake, Lh[08.2009 -] ACV40,GSV40 |
46504-33080 |
from US $195.72 |
||
|
46540
|
46540
46540-20070 Shoe Assy, Parking Brake, Rh Or Center No.1[08.2009 -] ACV40,GSV40 |
46540-20070 |
from US $17.73 |
||
|
46550
|
46550
46550-33020 Shoe Assy, Parking Brake, Rh Or Center No.2[08.2009 -] ACV40,GSV40 |
46550-33020 |
from US $17.90 |
||
|
46550C
|
46550C
90213-07018 Washer, Type C(For Parking Brake Shoe)[08.2009 -] ACV40,GSV40 |
90213-07018 |
from US $0.84 |
||
|
46550E
|
46550E
90506-12010 Spring, Tension, No.2(For Parking Brake Shoe Return)[08.2009 -] ACV40,GSV40 |
90506-12010 |
from US $5.30 |
||
|
46550G
|
46550G
90507-16009 Spring, Tension, No.1(For Parking Brake Shoe Return)[08.2009 -] ACV40,GSV40 |
90507-16009 |
from US $2.53 |
||
|
46550H
|
46550H
90564-09184 Shim(For Parking Brake Shoe)[08.2009 -] ACV40,GSV40 T=0.3 |
90564-09184 |
from US $1.61 |
||
|
46550H
|
46550H
90564-09185 Shim(For Parking Brake Shoe)[08.2009 -] ACV40,GSV40 T=0.6 |
90564-09185 |
from US $1.46 |
||
|
46550H
|
46550H
90564-09186 Shim(For Parking Brake Shoe)[08.2009 -] ACV40,GSV40 T=0.9 |
90564-09186 |
US $1.61 |
||
|
46580
|
46580
46540-20070 Shoe Assy, Parking Brake, Rh Or Center No.1[08.2009 -] ACV40,GSV40 |
46540-20070 |
from US $17.73 |
||
|
46590
|
46590
46590-33020 Shoe Assy, Parking Brake, Lh No.2[08.2009 -] ACV40,GSV40 |
46590-33020 |
from US $17.21 |
||
|
47405A
|
47405A
47405-30040 Adjuster Sub-Assy, Parking Brake Shoe, Rh Or Center[08.2009 -] ACV40,GSV40 |
47405-30040 |
from US $23.52 |
||
|
47406A
|
47406A
47406-30040 Adjuster Sub-Assy, Parking Brake Shoe, Lh[08.2009 -] ACV40,GSV40 |
47406-30040 |
from US $23.52 |
||
|
47447D
|
47447D
90501-14049 Spring, Brake Shoe Hold Down[08.2009 -] ACV40,GSV40 |
90501-14049 |
from US $1.33 |
||
|
47447E
|
47447E
47447-20030 Pin, Shoe Hold Down Spring[08.2009 -] ACV40,GSV40 |
47447-20030 |
from US $1.58 |
||
|
47447F
|
47447F
47447-22020 Pin, Shoe Hold Down Spring[08.2009 -] ACV40,GSV40 |
47447-22020 |
from US $2.01 |
||
|
47449A
|
47449A
47449-30030 Cup, Brake Shoe Hold Down[08.2009 -] ACV40,GSV40 |
47449-30030 |
from US $1.41 |
||
|
47449C
|
47449C
47449-32010 Cup, Shoe Hold Down Spring, No.1(For Parking Brake)[08.2009 -] ACV40,GSV40 |
47449-32010 |
from US $1.79 |
||
|
47456A
|
47456A
47456-33010 Plate, Shoe Guide(For Parking Brake)[08.2009 -] ACV40,GSV40 |
47456-33010 |
US $2.15 |
||
|
47459B
|
47459B
47459-30010 Bolt, Parking Brake Shoe Guide Plate Set[08.2009 -] ACV40,GSV40 |
47459-30010 |
from US $3.48 |
||
|
47611
|
47611
47611-20030 Lever, Parking Brake Shoe, Rh[08.2009 -] ACV40,GSV40 |
47611-20030 |
from US $15.37 |
||
|
47612
|
47612
47612-20030 Lever, Parking Brake Shoe, Lh[08.2009 -] ACV40,GSV40 |
47612-20030 |
from US $15.26 |
||
|
47613D
|
47613D
90504-14002 Spring, Compression(For Parking Brake Shoe Strut)[08.2009 -] ACV40,GSV40 |
90504-14002 |
from US $3.57 |
||
|
47613E
|
47613E
47613-20040 Strut, Parking Brake Shoe[08.2009 -] ACV40,GSV40 |
47613-20040 |
from US $5.91 |
||
|
47614
|
47614
47614-20010 Strut, Parking Brake Shoe[08.2009 -] ACV40,GSV40 |
47614-20010 |
from US $5.91 |
