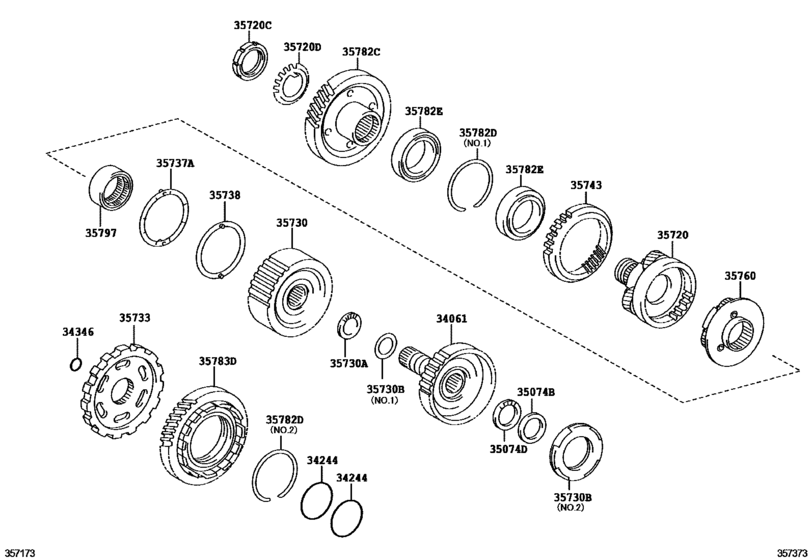

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2009 - ] U250E (0908- )ACV40) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34061
|
34061
34061-33010 Hub Sub-Assy, Overdreve Direct Clutch[08.2009 -] ACV40 |
34061-33010 |
US $74.26 |
||
|
34244
|
34244
34244-21010 Ring, Underdrive Clutch Drum Oil Seal[08.2009 -] ACV40 |
34244-21010 |
US $4.95 |
||
|
34346
|
34346
34346-21011 Ring, Underdrive Output Shaft Oil Seal[08.2009 -] ACV40 |
34346-21011 |
from US $0.87 |
||
|
35074B
|
35074B
35789-33030 Race, Thrust Bearing (For Rear Planetary Ring Gear Front)[08.2009 -] ACV40 |
35789-33030 |
US $10.48 |
||
|
35074D
|
35074D
90374-25010 Bearing, Thrust (For Rear Planetary Ring Gear Rear)[08.2009 -] ACV40 |
90374-25010 |
US $12.08 |
||
|
35720
|
35720
35720-28080 Gear Assy, Front Planetary[08.2009 -] ACV40 |
35720-28080 |
US $471.74 |
||
|
35720C
|
35720C
90179-46001 Nut (For Front Planetary Gear)[08.2009 -] ACV40 |
90179-46001 |
US $2.91 |
||
|
35720D
|
35720D
90209-46001 Washer (For Front Planetary Gear)[08.2009 -] ACV40 |
90209-46001 |
US $1.60 |
||
|
35730
|
35730
35730-33011 Gear Assy, Rear Planetary Sun[08.2009 -] ACV40 |
35730-33011 |
US $142.69 |
||
|
35730A
|
35730A
35788-33010 Race, Thrust Bearing (For Rear Planetary Sun Gear)[08.2009 -] ACV40 |
35788-33010 |
US $3.49 |
||
|
35730B
|
35730B
90374-31007 Bearing, Thrust Needle Roller (For Rear Planerary Sun Gear)[08.2009 - 06.2012] ACV40 NO.1 |
90374-31007 |
US $16.02 |
||
|
35730B
|
35730B
90374-55002 Bearing, Thrust Needle Roller (For Rear Planerary Sun Gear)[08.2009 - 06.2012] ACV40 NO.2,T=3.4 |
90374-55002 |
US $17.47 |
||
|
35730B
|
35730B
90374-55003 Bearing, Thrust Needle Roller (For Rear Planerary Sun Gear)[08.2009 - 06.2012] ACV40 NO.2,T=3.7 |
90374-55003 |
US $11.36 |
||
|
35733
|
35733
35733-32040 Gear, Parking Lock[08.2009 -] ACV40 |
35733-32040 |
US $46.74 |
||
|
35737A
|
35737A
35737-28010 Washer, Planetary Carrier Thrust, No.1[08.2009 -] ACV40 |
35737-28010 |
from US $16.25 |
||
|
35738
|
35738
35738-33030 Washer, Planetary Carrier Thrust, No.2[08.2009 -] ACV40 |
35738-33030 |
US $15.43 |
||
|
35743
|
35743
35743-28010 Gear, Front Planetary Ring[08.2009 -] ACV40 |
35743-28010 |
from US $78.26 |
||
|
35760
|
35760
35760-33060
Gear Assy, Rear Planetary
[08.2009 -] ACV40 |
35760-33060 |
— | ||
|
35782C
|
35782C
35782-28020 Gear, Counter Drive[08.2009 -] ACV40 |
35782-28020 |
from US $240.24 |
||
|
35782D
|
35782D
90520-84001 Ring, Hole Snap(For Counter Drive Gear)[08.2009 -] ACV40 NO.1 |
90520-84001 |
from US $3.91 |
||
|
35782D
|
35782D
90520-89004 Ring, Hole Snap(For Counter Drive Gear)[08.2009 -] ACV40 NO.2 |
90520-89004 |
US $1.89 |
||
|
35782E
|
35782E
90369-59001 Bearing(For Counter Drive Gear)[08.2009 -] ACV40 |
90369-59001 |
from US $34.07 |
||
|
35783D
|
35783D
35783-28020 Gear, Counter Driven[08.2009 -] ACV40 |
35783-28020 |
from US $85.90 |
||
|
35797
|
35797
35797-21010 Race, 1 Way Clutch Inner[08.2009 -] ACV40 |
35797-21010 |
US $72.81 |
