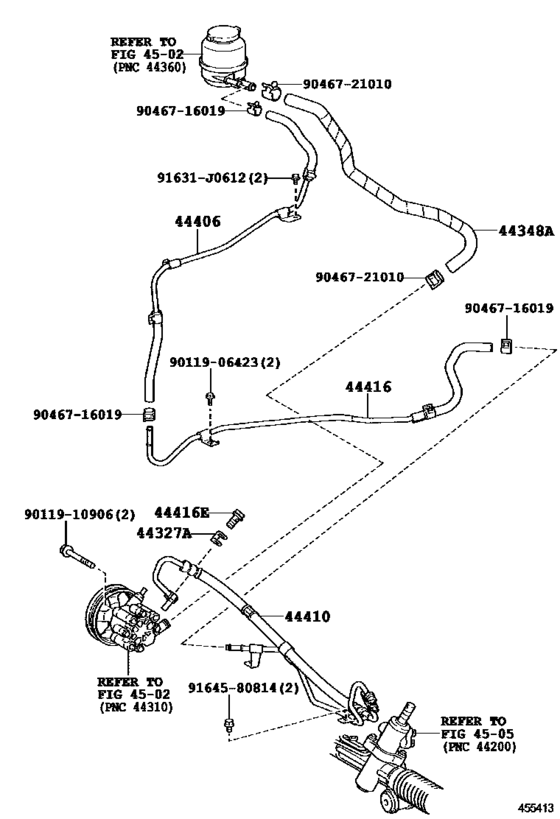

Power Steering Tube ([08.2009 - ] (0908- )ACV40) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44327A
|
44327A
44327-30030 Gasket(For Pressure Hose)[08.2009 -] ACV40,GSV40 |
44327-30030 |
from US $1.90 |
||
|
44348A
|
44348A
44348-33240 Hose, Oil Reservoir To Pump, No.1OIL RESERVOIR TO PUMP, NO.1 [08.2009 -] ACV40 |
44348-33240 |
US $65.15 |
||
|
44406
|
44406
44406-33121 Tube Sub-Assy, Return[08.2009 -] ACV40,GSV40..CHI |
44406-33121 |
from US $71.74 |
||
|
44410
|
44410
44410-33182 Tube Assy, Pressure FeedPRESSURE FEED [08.2009 -] ACV40 |
44410-33182 |
US $208.60 |
||
|
44416
|
44416
44416-33171
Tube, Return(For Steering Gear Outlet)
[08.2009 -] ACV40 |
44416-33171 |
— | ||
|
44416E
|
44416E
96341-41603 Bolt, Union(For Rear Stabilizer Contorol Tube)[08.2009 -] ACV40,GSV40 |
96341-41603 |
US $5.56 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9011906423
|
9011906423
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.25 |
||
|
9011910906
|
9011910906
90119-10906 New Genuine Part |
90119-10906 |
US $3.03 |
||
|
9046716019
|
9046716019
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.34 |
||
|
9046721010
|
9046721010
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.43 |
||
|
9164580814
|
9164580814
91645-80814 New Genuine Part |
91645-80814 |
US $1.46 |
