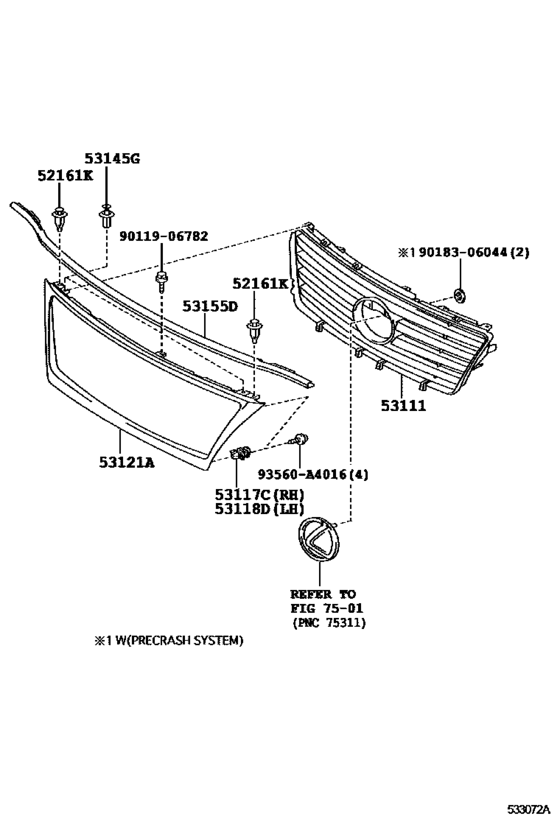

Radiator Grille ([08.2009 - ] (0908- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52161K
|
52161K
52161-16010 Clip[08.2009 -] ACV40,GSV40 |
52161-16010 |
from US $1.67 |
||
| replacements | |||||
|
52161K
|
52161K
52161-0K040 Clip[08.2009 -] ACV40,GSV40 |
52161-0K040 |
from US $1.46 |
||
|
52161K
|
52161K
52161-02020 Clip[08.2009 -] ACV40,GSV40 |
52161-02020 |
US $5.27 |
||
|
53111
|
53111
53112-33080 Grille, RadiatorRADIATOR [08.2009 -] ACV40;GSV40..GCC |
53112-33080 |
from US $389.63 |
||
|
53117C
|
53117C
53117-33020
Retainer, Radiator Grille, No.1
[08.2009 -] ACV40,GSV40 |
53117-33020 |
— | ||
|
53118D
|
53118D
53118-33010 Retainer, Radiator Grille, No.2[08.2009 -] ACV40,GSV40 |
53118-33010 |
US $2.91 |
||
|
53121A
|
53121A
53111-33350 Moulding, Radiator GrilleRADIATOR GRILLE [08.2009 -] ACV40,GSV40 |
53111-33350 |
US $104.99 |
||
|
53145G
|
53145G
90467-07201 Clamp(For Cool Air Intake)[08.2009 -] ACV40,GSV40 |
90467-07201 |
from US $0.93 |
||
|
53155D
|
53155D
53155-33040 Seal, Radiator Grille, No.1RADIATOR GRILLE, NO.1 [08.2009 -] ACV40,GSV40 |
53155-33040 |
US $24.46 |
||
|
93560A4016
|
93560A4016
93560-A4016 SCREW TAPPING |
93560-A4016 |
US $1.38 |
||
|
9011906782
|
9011906782
90119-06782 BOLT WWASHER |
90119-06782 |
from US $0.65 |
||
|
9018306044
|
9018306044
90183-06044 NUT SPRING |
90183-06044 |
from US $0.70 |
||
