Radiator & Water Outlet ([08.2009 - ] (0908- )2AZFE) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?

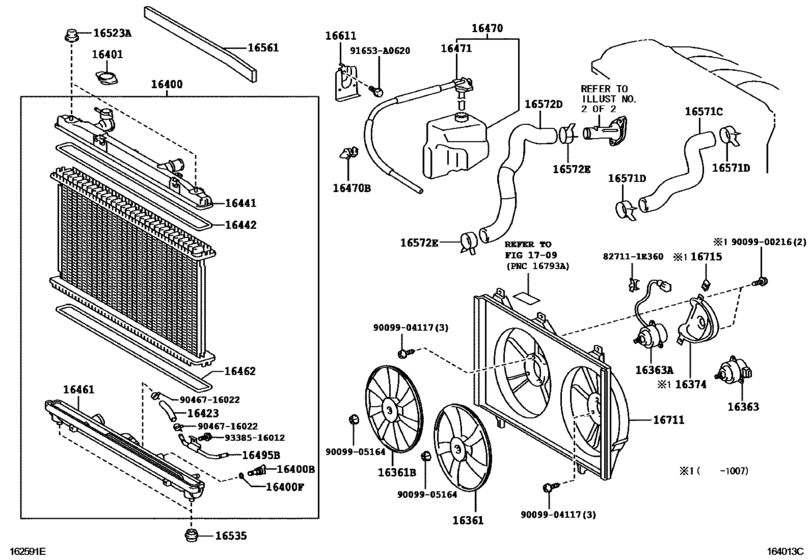

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16361
|
16361
16361-28260 Fan[08.2009 -] 2AZFE..ACV40 |
16361-28260 |
US $59.81 |
||
|
16361B
|
16361B
16361-28180 Fan, No.2[08.2009 -] 2AZFE..ACV40 |
16361-28180 |
US $79.97 |
||
|
16363
|
16363
16363-23010 Motor, Cooling Fan[08.2009 -] 2AZFE..ACV40 |
16363-23010 |
from US $86.74 |
||
|
16363A
|
16363A
16363-28230 Motor, Cooling Fan, No.2[08.2009 -] 2AZFE..ACV40 |
16363-28230 |
from US $271.89 |
||
|
16374
|
16374
16366-28130 Insulator, Cooling Fan Motor[08.2009 - 07.2010] 2AZFE..ACV40 |
16366-28130 |
US $19.22 |
||
|
16400
|
16400
16400-28690
Radiator Assy
[08.2009 -] 2AZFE..ACV40 |
16400-28690 |
— | ||
|
16400B
|
16400B
16417-21280 Cock Sub-Assy, Radiator Drain[08.2009 -] 2AZFE..ACV40 |
16417-21280 |
from US $3.46 |
||
|
16400F
|
16400F
16492-21050 Ring, O(For Oil Cooler Drain Cock)[08.2009 -] 2GRFE..GSV40; 2AZFE..ACV40 |
16492-21050 |
from US $2.13 |
||
|
16401
|
16401
16401-31480 Cap Sub-Assy, Radiator[08.2009 -] 2GRFE..GSV40; 2AZFE..ACV40 |
16401-31480 |
from US $16.31 |
||
|
16423
|
16423
16492-31470
Hose, Radiator Tank
[08.2009 -] 2AZFE..ACV40 |
16492-31470 |
— | ||
|
16441
|
16441
16441-28631 Tank, Radiator, UpperRADIATOR, UPPER [08.2009 -] 2AZFE..ACV40 |
16441-28631 |
US $45.14 |
||
|
16442
|
16442
16442-46090
Ring, O(For Radiator Upper Tank)
[08.2009 -] 2AZFE..ACV40 |
16442-46090 |
— | ||
|
16461
|
16461
16460-28551
Tank, Radiator, Lower
[08.2009 -] 2AZFE..ACV40 |
16460-28551 |
— | ||
|
16462
|
16462
16442-46090
Ring, O(For Radiator Upper Tank)
[08.2009 -] 2AZFE..ACV40 |
16442-46090 |
— | ||
|
16470
|
16470
16470-28100 Tank Assy, Radiator Reserve[08.2009 -] 2GRFE..GSV40; 2AZFE..ACV40 |
16470-28100 |
from US $37.56 |
||
|
16470B
|
16470B
90469-12014 Clamp Or Clip(For Radiator Reserve Tank Hose)[08.2009 -] 2GRFE..GSV40; 2AZFE..ACV40 |
90469-12014 |
US $1.97 |
||
|
16471
|
16471
16405-28070 Cap Sub-Assy, Reserve Tank[08.2009 -] 2GRFE..GSV40; 2AZFE..ACV40 |
16405-28070 |
US $19.30 |
||
|
16495B
|
16495B
16495-31470
Pipe (For Atm Oil Cooler)
[08.2009 -] 2GRFE..GSV40..GCC NO.2; 2AZFE..ACV40 |
16495-31470 |
— | ||
|
16523A
|
16523A
16523-20020 Cushion, Radiator Support[08.2009 -] 2GRFE..GSV40; 2AZFE..ACV40 |
16523-20020 |
from US $5.89 |
||
|
16535
|
16535
16535-28030 Support, Radiator, Lower[08.2009 -] 2AZFE..ACV40 |
16535-28030 |
from US $6.16 |
||
|
16561
|
16561
16561-28020 Seal, Radiator To Support, No.1[08.2009 -] 2AZFE..ACV40 |
16561-28020 |
US $13.62 |
||
|
16571C
|
16571C
16571-28240 Hose, Radiator, No.1[08.2009 -] 2AZFE..ACV40 |
16571-28240 |
from US $24.85 |
||
|
16571D
|
16571D
90466-35001 Clamp Or Clip, Hose(For Radiator Inlet)[08.2009 -] 2AZFE..ACV40 |
90466-35001 |
from US $5.38 |
||
|
16572D
|
16572D
16572-28170 Hose, Radiator, No.2[08.2009 -] 2AZFE..ACV40 |
16572-28170 |
from US $29.39 |
||
|
16572E
|
16572E
90466-35001 Clamp Or Clip, Hose(For Radiator Inlet)[08.2009 -] 2AZFE..ACV40 |
90466-35001 |
from US $5.38 |
||
|
16611
|
16611
16611-28010 Bracket, Radiator Reserve Tank[08.2009 -] 2GRFE..GSV40; 2AZFE..ACV40 |
16611-28010 |
US $12 |
||
|
16711
|
16711
16711-28300 Shroud, Fan[08.2009 -] 2AZFE..ACV40 |
16711-28300 |
from US $89.66 |
||
|
16715
|
16715
88688-18030 Bracket, Fan Shroud[08.2009 - 07.2010] 2AZFE..ACV40 |
88688-18030 |
from US $0.55 |
||
|
91653A0620
|
91653A0620
91653-A0620 New Genuine Part |
91653-A0620 |
US $1.08 |
||
|
827111E360
|
827111E360
82711-1E360 Clamp, Wiring Harness |
82711-1E360 |
US $1.08 |
||
|
9009900216
|
9009900216
90099-00216
New Genuine Part
|
90099-00216 |
— | ||
|
9009904117
|
9009904117
90099-04117 Bolt, Radiator Side Support Plate |
90099-04117 |
from US $0.61 |
||
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.83 |
||
|
9046716022
|
9046716022
90467-16022 Clip(For Water Inlet Hose) |
90467-16022 |
from US $2.26 |
||
|
9338516012
|
9338516012
93385-16012 New Genuine Part |
93385-16012 |
US $0.96 |
