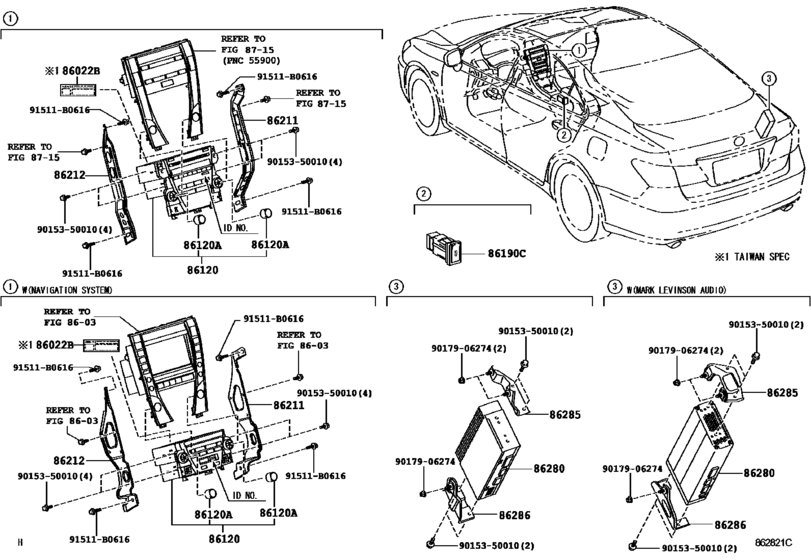

Radio Receiver & Amplifier & Condenser ([05.2006 - ] (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86120
|
86120
86120-33F10
Receiver Assy, Radio
[08.2010 -] ACV40 PIONEER,ID=P2892,TAIWAN SPEC; GSV40..CHI PIONEER,ID=P2892,TAIWAN SPEC&AUDIO-AM/FM 6CD-CHANGER 8SP |
86120-33F10 |
— | ||
|
86120
|
86120
86120-33F20
Receiver Assy, Radio
[08.2010 - 03.2011] ACV40 PIONEER,ID=P2890,TAIWAN SPEC&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
86120-33F20 |
— | ||
| replacement | |||||
|
86120
|
86120
86120-33F21
Receiver Assy, Radio
[08.2010 - 03.2011] ACV40 PIONEER,ID=P2890,TAIWAN SPEC&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
86120-33F21 |
— | ||
|
86120
|
86120
86120-33F21
Receiver Assy, Radio
[04.2011 -] GSV40..CHI PIONEER,ID=P2890,TAIWAN SPEC; ACV40 PIONEER,ID=P2890,TAIWAN SPEC&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; GSV40..GCC PIONEER,ID=P2890,AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
86120-33F21 |
— | ||
|
86120
|
86120
86120-33F40
Receiver Assy, Radio
[08.2009 -] ACV40 PIONEER,ID=P2893 |
86120-33F40 |
— | ||
|
86120
|
86120
86120-33F50
Receiver Assy, Radio
[08.2009 -] GSV40..CHI PIONEER,ID=P2891; ACV40 PIONEER,ID=P2891,AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
86120-33F50 |
— | ||
|
86120
|
86120
86120-33F60
Receiver Assy, Radio
[08.2009 -] ACV40,GSV40..CHI PIONEER,ID=P7571,AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
86120-33F60 |
— | ||
|
86120
|
86120
86120-33F70
Receiver Assy, Radio
[08.2010 - 03.2011] ACV40 PIONEER,ID=P7569,TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
86120-33F70 |
— | ||
| replacement | |||||
|
86120
|
86120
86120-33F71
Receiver Assy, Radio
[08.2010 - 03.2011] ACV40 PIONEER,ID=P7569,TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
86120-33F71 |
— | ||
|
86120
|
86120
86120-33F71
Receiver Assy, Radio
[04.2011 -] ACV40,GSV40..CHI PIONEER,ID=P7569,TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
86120-33F71 |
— | ||
|
86120A
|
86120A
90010-22070
Knob, Radio Receiver Switch
[08.2009 - 06.2012] ACV40,GSV40 |
90010-22070 |
— | ||
|
86190C
|
86190C
86190-53040 Adapter Assy, Stereo Jack, No.1STEREO JACK, NO.1 [08.2009 - 06.2012] ACV40,GSV40..CHI; GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP&AUDIO JACK-MINI JACK & USB; GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP&AUDIO JACK-MINI JACK & USB; GSV40..GCC AUDIO JACK-MINI JACK & USB |
86190-53040 |
US $113.57 |
||
|
86211
|
86211
86211-33191
Bracket, Radio, No.1
[08.2009 -] ACV40;GSV40..GCC |
86211-33191 |
— | ||
|
86211
|
86211
86211-33220
Bracket, Radio, No.1
[08.2009 -] GSV40..CHI; ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
86211-33220 |
— | ||
|
86212
|
86212
86212-33191
Bracket, Radio, No.2
[08.2009 -] ACV40;GSV40..GCC |
86212-33191 |
— | ||
|
86212
|
86212
86212-33220
Bracket, Radio, No.2
[08.2009 -] GSV40..CHI; ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
86212-33220 |
— | ||
|
86280
|
86280
86280-0W730
Amplifier Assy, Stereo Component
[08.2009 -] ACV40,GSV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
86280-0W730 |
— | ||
|
86280
|
86280
86280-33160
Amplifier Assy, Stereo Component
[08.2009 -] ACV40;GSV40..GCC |
86280-33160 |
— | ||
|
86280
|
86280
86280-33170
Amplifier Assy, Stereo Component
[08.2009 -] GSV40..CHI; ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
86280-33170 |
— | ||
|
86285
|
86285
86285-33090
Bracket, Amplifier, No.1
[08.2009 -] ACV40,GSV40 |
86285-33090 |
— | ||
|
86285
|
86285
86285-33120
Bracket, Amplifier, No.1
[08.2009 -] ACV40,GSV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
86285-33120 |
— | ||
|
86286
|
86286
86286-33110
Bracket, Amplifier, No.2
[08.2009 -] ACV40,GSV40 |
86286-33110 |
— | ||
|
86286
|
86286
86286-33120
Bracket, Amplifier, No.2
[08.2009 -] ACV40,GSV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
86286-33120 |
— | ||
|
91511B0616
|
91511B0616
91511-B0616 BOLTFLANGE |
91511-B0616 |
from US $0.84 |
||
| replacement | |||||
|
91511B0616
|
91511B0616
90080-10164 New Genuine Part |
90080-10164 |
US $2.67 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
