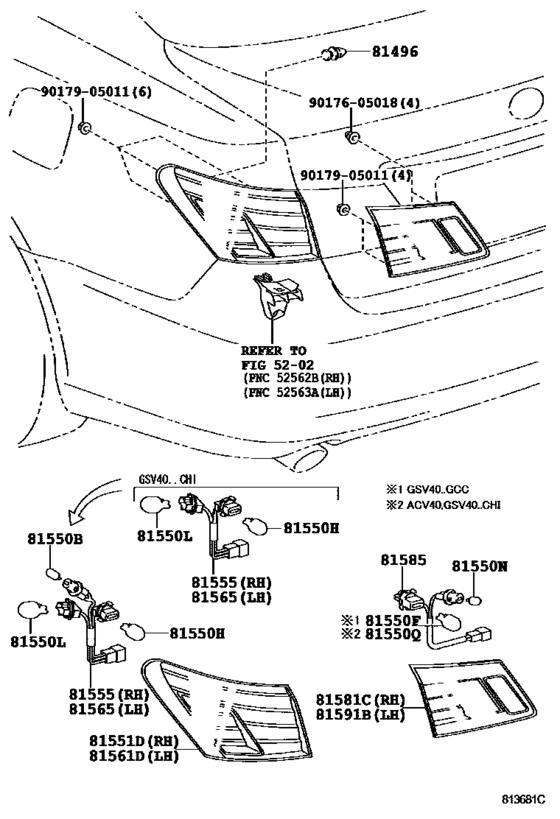

Rear Combination Lamp ([03.2006 - ] (0603- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81496
|
81496
81496-28010 Guide, Rear Combination Lamp[08.2009 -] ACV40,GSV40 |
81496-28010 |
from US $1.54 |
||
|
81550H
|
81550H
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[08.2009 -] ACV40,GSV40 |
90981-13044 |
from US $3.46 |
||
|
81550L
|
81550L
90981-15021 Bulb (For Front Turn Signal Lamp)[08.2009 -] ACV40,GSV40 |
90981-15021 |
from US $3.14 |
||
|
81550N
|
81550N
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[08.2009 -] ACV40,GSV40 |
90981-11059 |
from US $3.15 |
||
|
81550Q
|
81550Q
90981-13043 Bulb (12V 21W)[08.2009 -] ACV40,GSV40..CHI |
90981-13043 |
from US $3.15 |
||
|
81551D
|
81551D
81551-33480 Lens & Body, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.2009 -] ACV40,GSV40..CHI |
81551-33480 |
US $365.66 |
||
|
81555
|
81555
81555-33510
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.2009 -] ACV40,GSV40..CHI |
81555-33510 |
— | ||
|
81561D
|
81561D
81561-33420 Lens & Body, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.2009 -] ACV40,GSV40..CHI |
81561-33420 |
US $357.52 |
||
|
81565
|
81565
81555-33510
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.2009 -] ACV40,GSV40..CHI |
81555-33510 |
— | ||
|
81581C
|
81581C
81581-33200
Lens And Body, Rear Lamp, Rh
[08.2009 -] ACV40,GSV40..CHI |
81581-33200 |
— | ||
|
81585
|
81585
81585-33160
Socket & Wire, Rear Lamp
[08.2009 -] ACV40,GSV40..CHI |
81585-33160 |
— | ||
|
81591B
|
81591B
81591-33190 Lens And Body, Rear Lamp, LhREAR LAMP, LH [08.2009 -] ACV40,GSV40..CHI |
81591-33190 |
US $330.22 |
||
|
9017605018
|
9017605018
90176-05018 NUT, CAP |
90176-05018 |
from US $0.76 |
||
|
9017905011
|
9017905011
90179-05011 NUT |
90179-05011 |
from US $0.76 |
||
| replacement | |||||
|
9017905011
|
9017905011
90178-A0005 New Genuine Part |
90178-A0005 |
US $3.02 |
||
