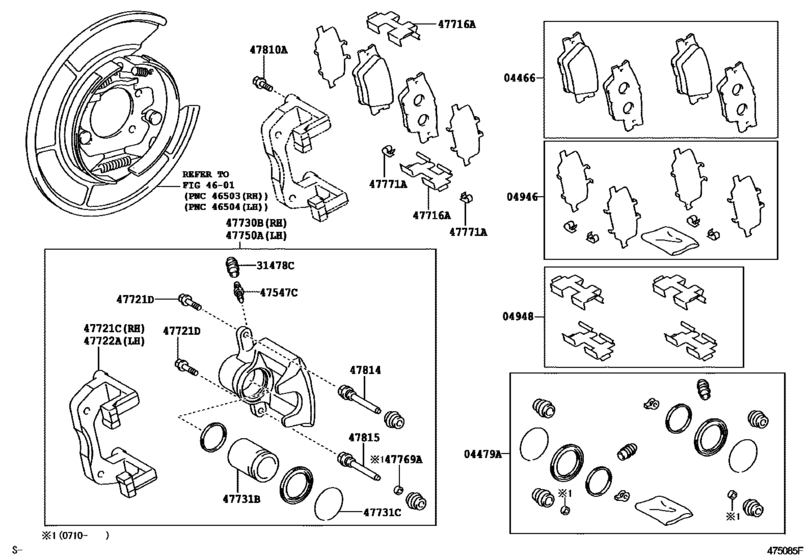

Rear Disc Brake Caliper & Dust Cover ([05.2006 - ] (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04466
|
04466
04466-33180 Pad Kit, Disc Brake, Rear[08.2009 -] ACV40,GSV40 MARK NBK D6247 |
04466-33180 |
from US $69.96 |
||
|
04479A
|
04479A
04479-33290 Cylinder Kit, Disc Brake, RearDISC BRAKE, REAR [08.2009 - 09.2011] ACV40,GSV40 |
04479-33290 |
US $62.83 |
||
|
04479A
|
04479A
04479-33350 Cylinder Kit, Disc Brake, Rear[09.2011 -] ACV40,GSV40 |
04479-33350 |
from US $36.96 |
||
|
04946
|
04946
04946-33040 Shim Kit, Anti Squeal(For Rear Disc Brake)[08.2009 - 12.2011] ACV40,GSV40 |
04946-33040 |
US $22.28 |
||
| replacement | |||||
|
04946
|
04946
04946-33060 Shim Kit, Anti Squeal(For Rear Disc Brake)[08.2009 - 12.2011] ACV40,GSV40 |
04946-33060 |
from US $22.59 |
||
|
04946
|
04946
04946-33060 Shim Kit, Anti Squeal(For Rear Disc Brake)[01.2012 - 05.2012] ACV40,GSV40 |
04946-33060 |
from US $22.59 |
||
|
04948
|
04948
04948-33040 Fitting Kit, Disc Brake, Rear[08.2009 -] ACV40,GSV40 |
04948-33040 |
from US $19.30 |
||
|
31478C
|
31478C
31478-50020 Cap, Bleeder Plug(For Front Disc Brake)[08.2009 -] ACV40,GSV40 |
31478-50020 |
from US $2.22 |
||
|
47547C
|
47547C
47547-20010 Plug, Bleeder(For Release Cylinder)[08.2009 -] ACV40,GSV40 |
47547-20010 |
from US $3.58 |
||
|
47716A
|
47716A
47816-33211 Plate, Pad Support, No.1(For Rear Disc Brake)[08.2009 -] ACV40,GSV40 |
47816-33211 |
from US $3.49 |
||
|
47721C
|
47721C
47821-33211 Mounting, Rear Disc Brake Cylinder, Rh[08.2009 - 09.2010] ACV40,GSV40 |
47821-33211 |
US $44.26 |
||
| replacement | |||||
|
47721C
|
47721C
47821-33240 Mounting, Rear Disc Brake Cylinder, Rh[08.2009 - 09.2010] ACV40,GSV40 |
47821-33240 |
from US $44.26 |
||
|
47721C
|
47721C
47821-33240 Mounting, Rear Disc Brake Cylinder, Rh[09.2010 - 09.2011] ACV40,GSV40 |
47821-33240 |
from US $44.26 |
||
|
47721C
|
47721C
47821-33241 Mounting, Rear Disc Brake Cylinder, Rh[09.2011 -] ACV40,GSV40 |
47821-33241 |
US $63.07 |
||
|
47721D
|
47721D
90105-08164 Bolt(For Front Disc Brake Cylinder Slide)[08.2009 -] ACV40,GSV40 *8-1.00PX23-15 |
90105-08164 |
from US $0.89 |
||
|
47722A
|
47722A
47822-33211 Mounting, Rear Disc Brake Cylinder, Lh[08.2009 - 09.2010] ACV40,GSV40 |
47822-33211 |
US $44.26 |
||
| replacement | |||||
|
47722A
|
47722A
47822-33240 Mounting, Rear Disc Brake Cylinder, Lh[08.2009 - 09.2010] ACV40,GSV40 |
47822-33240 |
from US $44.26 |
||
|
47722A
|
47722A
47822-33240 Mounting, Rear Disc Brake Cylinder, Lh[09.2010 - 09.2011] ACV40,GSV40 |
47822-33240 |
from US $44.26 |
||
|
47722A
|
47722A
47822-33241 Mounting, Rear Disc Brake Cylinder, Lh[09.2011 -] ACV40,GSV40 |
47822-33241 |
US $57.80 |
||
|
47730B
|
47730B
47830-33211 Cylinder Assy, Disc Brake, Rear Rh[08.2009 - 09.2011] ACV40,GSV40 |
47830-33211 |
US $465.92 |
||
|
47730B
|
47730B
47830-33240 Cylinder Assy, Disc Brake, Rear Rh[09.2011 -] ACV40,GSV40 |
47830-33240 |
US $350.90 |
||
|
47731B
|
47731B
47831-33210 Piston, Rear Disc Brake[08.2009 -] ACV40,GSV40 |
47831-33210 |
from US $12.90 |
||
|
47731C
|
47731C
90520-52006 Ring, Set(For Disc Brake Piston)[08.2009 -] ACV40,GSV40 |
90520-52006 |
US $1.14 |
||
|
47750A
|
47750A
47850-33211 Cylinder Assy, Disc Brake, Rear Lh[08.2009 - 09.2011] ACV40,GSV40 |
47850-33211 |
US $465.92 |
||
|
47750A
|
47750A
47850-33240 Cylinder Assy, Disc Brake, Rear Lh[09.2011 -] ACV40,GSV40 |
47850-33240 |
US $350.90 |
||
|
47769A
|
47769A
47879-33211 Bush, Cylinder Slide, No.1(For Rear Disc Brake)[08.2009 - 09.2011] ACV40,GSV40 |
47879-33211 |
from US $0.99 |
||
|
47769A
|
47769A
47879-33240 Bush, Cylinder Slide, No.1(For Rear Disc Brake)[09.2011 -] ACV40,GSV40 |
47879-33240 |
from US $6.14 |
||
|
47771A
|
47771A
47771-32030 Plate, Pad Wear Indicator(For Rear Disc Brake)[08.2009 - 01.2012] ACV40,GSV40 |
47771-32030 |
from US $1.37 |
||
|
47771A
|
47771A
47771-72010 Plate, Pad Wear Indicator(For Rear Disc Brake)[01.2012 - 05.2012] ACV40,GSV40 |
47771-72010 |
US $1.79 |
||
|
47810A
|
47810A
90119-10379 Bolt, Hexagon(For Rear Caliper)[08.2009 - 06.2012] ACV40,GSV40 |
90119-10379 |
from US $0.91 |
||
|
47814
|
47814
47814-33210 Pin, Cylinder Slide, No.1(For Rear Disc Brake)[08.2009 - 09.2011] ACV40,GSV40 |
47814-33210 |
from US $11.59 |
||
|
47814
|
47814
47814-33240 Pin, Cylinder Slide, No.1(For Rear Disc Brake)[09.2011 -] ACV40,GSV40 |
47814-33240 |
from US $7.81 |
||
|
47815
|
47815
47814-33211 Pin, Cylinder Slide, No.1(For Rear Disc Brake)[08.2009 - 09.2011] ACV40,GSV40 |
47814-33211 |
from US $10.64 |
||
|
47815
|
47815
47815-33240 Pin, Cylinder Slide, No.1(For Rear Disc Brake)[09.2011 -] ACV40,GSV40 |
47815-33240 |
from US $7.92 |
||
