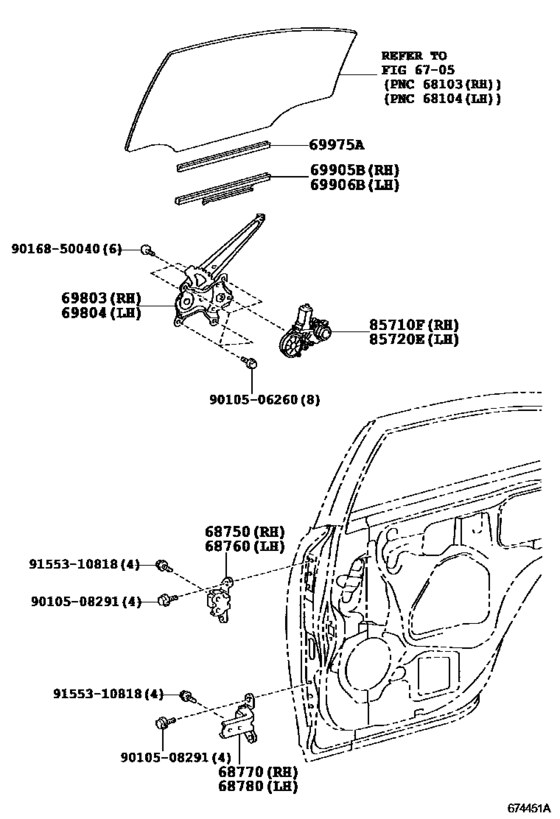

Rear Door Window Regulator & Hinge ([05.2006 - ] (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68750
|
68750
68750-20121
Hinge Assy, Rear Door, Upper Rh
[08.2009 - 05.2012] ACV40,GSV40 |
68750-20121 |
— | ||
| replacement | |||||
|
68750
|
68750
68750-20122 Hinge Assy, Rear Door, Upper Rh[08.2009 - 05.2012] ACV40,GSV40 |
68750-20122 |
from US $31.08 |
||
|
68760
|
68760
68760-20121
Hinge Assy, Rear Door, Upper Lh
[08.2009 - 05.2012] ACV40,GSV40 |
68760-20121 |
— | ||
| replacement | |||||
|
68760
|
68760
68760-20122 Hinge Assy, Rear Door, Upper Lh[08.2009 - 05.2012] ACV40,GSV40 |
68760-20122 |
from US $30.89 |
||
|
68770
|
68770
68770-52031 Hinge Assy, Rear Door, Lower Rh[08.2009 -] ACV40,GSV40 |
68770-52031 |
from US $27.89 |
||
|
68780
|
68780
68780-52031 Hinge Assy, Rear Door, Lower Lh[08.2009 -] ACV40,GSV40 |
68780-52031 |
from US $28.77 |
||
|
69803
|
69803
69803-12180 Regulator Sub-Assy, Rear Door Window, Rh[08.2009 -] ACV40,GSV40 |
69803-12180 |
US $46.74 |
||
|
69804
|
69804
69804-12180 Regulator Sub-Assy, Rear Door Window, Lh[08.2009 -] ACV40,GSV40 |
69804-12180 |
US $46.74 |
||
|
69905B
|
69905B
69905-22060 Bracket Sub-Assy, Rear Door Glass, Rh[08.2009 - 06.2012] ACV40,GSV40 |
69905-22060 |
from US $10.75 |
||
|
69906B
|
69906B
69906-22050 Bracket Sub-Assy, Rear Door Glass, Lh[08.2009 - 06.2012] ACV40,GSV40 |
69906-22050 |
from US $10.75 |
||
|
69975A
|
69975A
69975-60040
Filler, Rear Door Glass Channel
[08.2009 - 06.2012] ACV40,GSV40 |
69975-60040 |
— | ||
| replacement | |||||
|
69975A
|
69975A
69975-22030 Filler, Rear Door Glass Channel[08.2009 - 06.2012] ACV40,GSV40 |
69975-22030 |
from US $6.48 |
||
|
85710F
|
85710F
85720-33221
Motor Assy, Power Window Regulator, Rh
[08.2009 -] ACV40,GSV40 |
85720-33221 |
— | ||
|
85720E
|
85720E
85710-33211
Motor Assy, Power Window Regulator, Lh
[08.2009 -] ACV40,GSV40 |
85710-33211 |
— | ||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.65 |
||
|
9010508291
|
9010508291
90105-08291 BOLT |
90105-08291 |
from US $0.82 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.80 |
||
|
9155310818
|
9155310818
91553-10818 BOLT FLANGE |
91553-10818 |
US $1.97 |
||
