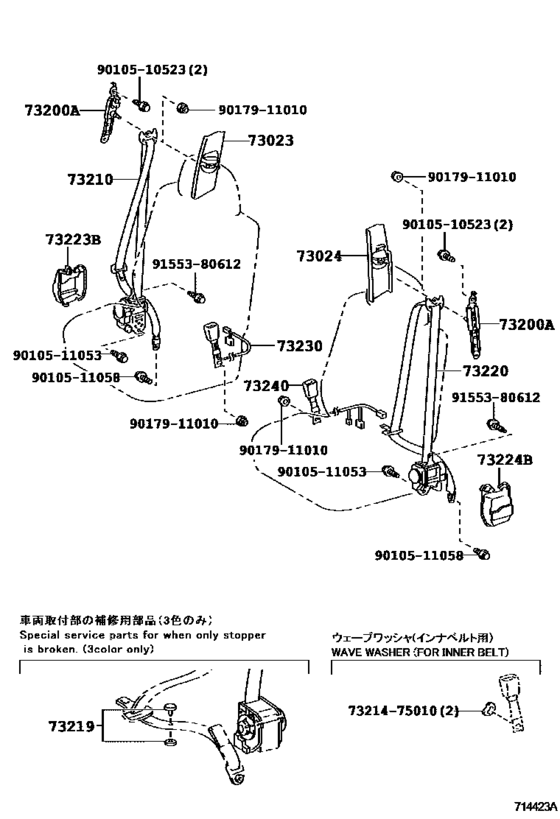

Seat Belt & Child Restraint Seat ([05.2006 - ] FRONT SEAT BELT (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73023
|
73023
73023-53020-A1 Plate Sub-Assy, Front Shoulder Belt Anchor, RhFRONT SHOULDER BELT ANCHOR, RH [08.2009 - 11.2009] ACV40,GSV40..CHI TAIWAN SPEC,IVORY,TRIM0#; GSV40..CHI RUSSIA SPEC,IVORY,TRIM0# |
73023-53020-A1 |
US $19.95 |
||
|
73023
|
73023
73023-53020-B0 Plate Sub-Assy, Front Shoulder Belt Anchor, Rh[08.2009 - 11.2009] ACV40,GSV40..CHI TAIWAN SPEC,LT.GRAY,TRIM1#,2#; GSV40..CHI RUSSIA SPEC,LT.GRAY,TRIM1#,2# |
73023-53020-B0 |
US $18.05 |
||
|
73024
|
73024
73024-53020-A1 Plate Sub-Assy, Front Shoulder Belt Anchor, LhFRONT SHOULDER BELT ANCHOR, LH [08.2009 - 11.2009] ACV40,GSV40..CHI TAIWAN SPEC,IVORY,TRIM0#; GSV40..CHI RUSSIA SPEC,IVORY,TRIM0# |
73024-53020-A1 |
US $19.95 |
||
|
73024
|
73024
73024-53020-B0 Plate Sub-Assy, Front Shoulder Belt Anchor, Lh[08.2009 - 11.2009] ACV40,GSV40..CHI TAIWAN SPEC,LT.GRAY,TRIM1#,2#; GSV40..CHI RUSSIA SPEC,LT.GRAY,TRIM1#,2# |
73024-53020-B0 |
US $18.05 |
||
|
73200A
|
73200A
73200-53010 Adjuster Assy, Front Shoulder Belt Anchor[08.2009 -] ACV40,GSV40 |
73200-53010 |
US $36.16 |
||
|
73210
|
73210
73210-33451-A1
Belt Assy, Front Seat Outer, Rh
[08.2009 - 06.2012] ACV40 IVORY,TRIM0# |
73210-33451-A1 |
— | ||
|
73210
|
73210
73210-33451-B0
Belt Assy, Front Seat Outer, Rh
[08.2009 - 06.2012] ACV40 GRAY,TRIM1# |
73210-33451-B0 |
— | ||
|
73210
|
73210
73210-33451-C1
Belt Assy, Front Seat Outer, Rh
[08.2009 - 06.2012] ACV40 BLACK,TRIM2# |
73210-33451-C1 |
— | ||
|
73210
|
73210
73210-33473-A1
Belt Assy, Front Seat Outer, Rh
[08.2010 - 06.2012] ACV40,GSV40..CHI TAIWAN SPEC,IVORY,TRIM0#; GSV40..CHI RUSSIA SPEC,IVORY,TRIM0# |
73210-33473-A1 |
— | ||
|
73210
|
73210
73210-33473-B0
Belt Assy, Front Seat Outer, Rh
[08.2010 - 06.2012] ACV40,GSV40..CHI TAIWAN SPEC,LT.GRAY/GRAY,TRIM1#; GSV40..CHI RUSSIA SPEC,LT.GRAY/GRAY,TRIM1# |
73210-33473-B0 |
— | ||
|
73210
|
73210
73210-33473-C1
Belt Assy, Front Seat Outer, Rh
[08.2010 - 06.2012] ACV40,GSV40..CHI TAIWAN SPEC,BLACK,TRIM2#; GSV40..CHI RUSSIA SPEC,BLACK,TRIM2# |
73210-33473-C1 |
— | ||
|
73219
|
73219
73219-33010 Stopper, Tongue Plate[08.2009 -] ACV40,GSV40 BLACK |
73219-33010 |
from US $0.89 |
||
|
73219
|
73219
73219-33020 Stopper, Tongue Plate[08.2009 -] ACV40,GSV40 GRAY |
73219-33020 |
from US $1.05 |
||
|
73219
|
73219
73219-33030 Stopper, Tongue Plate[08.2009 -] ACV40,GSV40 BEIGE |
73219-33030 |
from US $0.89 |
||
|
73220
|
73220
73220-33441-A1
Belt Assy, Front Seat Outer, Lh
[08.2009 - 06.2012] ACV40 IVORY,TRIM0# |
73220-33441-A1 |
— | ||
|
73220
|
73220
73220-33441-B0
Belt Assy, Front Seat Outer, Lh
[08.2009 - 06.2012] ACV40 GRAY,TRIM1# |
73220-33441-B0 |
— | ||
|
73220
|
73220
73220-33441-C1
Belt Assy, Front Seat Outer, Lh
[08.2009 - 06.2012] ACV40 BLACK,TRIM2# |
73220-33441-C1 |
— | ||
|
73220
|
73220
73220-33511-A1
Belt Assy, Front Seat Outer, Lh
[08.2010 - 06.2012] ACV40,GSV40..CHI TAIWAN SPEC,IVORY,TRIM0#; GSV40..CHI RUSSIA SPEC,IVORY,TRIM0# |
73220-33511-A1 |
— | ||
|
73220
|
73220
73220-33511-B0
Belt Assy, Front Seat Outer, Lh
[08.2010 - 06.2012] ACV40,GSV40..CHI TAIWAN SPEC,LT.GRAY/GRAY,TRIM1#; GSV40..CHI RUSSIA SPEC,LT.GRAY/GRAY,TRIM1# |
73220-33511-B0 |
— | ||
|
73220
|
73220
73220-33511-C1
Belt Assy, Front Seat Outer, Lh
[08.2010 - 06.2012] ACV40,GSV40..CHI TAIWAN SPEC,BLACK,TRIM2#; GSV40..CHI RUSSIA SPEC,BLACK,TRIM2# |
73220-33511-C1 |
— | ||
|
73223B
|
73223B
73223-33030
Cover, Front Seat Belt Retractor, Rh
[08.2009 -] ACV40,GSV40 |
73223-33030 |
— | ||
|
73224B
|
73224B
73224-33010
Cover, Front Seat Belt Retractor, Lh
[08.2009 -] ACV40,GSV40 |
73224-33010 |
— | ||
|
73230
|
73230
73230-33610-A1
Belt Assy, Front Seat Inner, Rh
[08.2009 - 06.2012] ACV40;GSV40..GCC IVORY,TRIM0# |
73230-33610-A1 |
— | ||
|
73230
|
73230
73230-33610-B0
Belt Assy, Front Seat Inner, Rh
[08.2009 - 06.2012] ACV40;GSV40..GCC LT.GRAY,TRIM1# |
73230-33610-B0 |
— | ||
|
73230
|
73230
73230-33610-C0
Belt Assy, Front Seat Inner, Rh
[08.2009 - 06.2012] ACV40;GSV40..GCC BLACK,TRIM2# |
73230-33610-C0 |
— | ||
|
73240
|
73240
73230-33600-A1
Belt Assy, Front Seat Inner, Lh
[08.2009 - 06.2012] ACV40,GSV40 IVORY,TRIM0# |
73230-33600-A1 |
— | ||
|
73240
|
73240
73230-33600-B0
Belt Assy, Front Seat Inner, Lh
[08.2009 - 06.2012] ACV40,GSV40 LT.GRAY,TRIM1# |
73230-33600-B0 |
— | ||
|
73240
|
73240
73230-33600-C0
Belt Assy, Front Seat Inner, Lh
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM2# |
73230-33600-C0 |
— | ||
|
7321475010
|
7321475010
73214-75010 Plate, Front Seat Belt Anchor |
73214-75010 |
US $3.05 |
||
|
9010510523
|
9010510523
90105-10523 BOLT FLANGE |
90105-10523 |
US $1.79 |
||
|
9010511053
|
9010511053
90105-11053 BOLT FLANGE |
90105-11053 |
from US $1.05 |
||
|
9010511058
|
9010511058
90105-11058 BOLT FLANGE |
90105-11058 |
from US $0.89 |
||
|
9017911010
|
9017911010
90179-11010 NUT |
90179-11010 |
US $1.97 |
||
|
9155380612
|
9155380612
91553-80612 BOLT FLANGE |
91553-80612 |
from US $0.61 |
