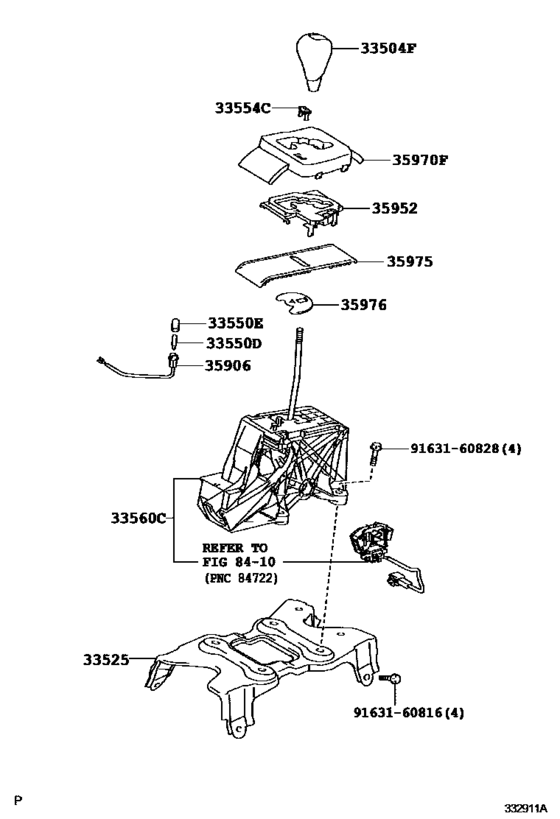

Shift Lever & Retainer ([05.2006 - ] (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-33070-C0
Knob Sub-Assy, Shift Lever
[08.2009 - 06.2012] ACV40 BLACK,TRIM1#,2#,SILVER PAINTED |
33504-33070-C0 |
— | ||
|
33504F
|
33504F
33504-33070-E0
Knob Sub-Assy, Shift Lever
[08.2009 - 06.2012] ACV40 ORCHID BROWN,TRIM0#,SILVER PAINTED |
33504-33070-E0 |
— | ||
|
33504F
|
33504F
33504-33080-C0
Knob Sub-Assy, Shift Lever
[08.2009 - 06.2012] GSV40 BLACK & MD.BROWN,TRIM1#,2#,WALNUT WOOD; ACV40 STEERING WHEEL-3-SPOKE WOOD & LEATHER,BLACK & MD.BROWN,TRIM1#,2#,WALNUT WOOD |
33504-33080-C0 |
— | ||
|
33504F
|
33504F
33504-33080-E0
Knob Sub-Assy, Shift Lever
[08.2009 - 06.2012] GSV40 ORCHID BROWN & MD.BROWN,TRIM00,WALNUT WOOD; ACV40 STEERING WHEEL-3-SPOKE WOOD & LEATHER,ORCHID BROWN & MD.BROWN,TRIM00,WALNUT WOOD |
33504-33080-E0 |
— | ||
|
33504F
|
33504F
33504-33090-C1
Knob Sub-Assy, Shift Lever
[08.2009 - 06.2012] GSV40 BLACK & DK.BROWN,TRIM1#,2#,BIRDS EYE MAPLE WOOD; ACV40 STEERING WHEEL-3-SPOKE WOOD & LEATHER,BLACK & DK.BROWN,TRIM1#,2#,BIRDS EYE MAPLE W OOD |
33504-33090-C1 |
— | ||
|
33504F
|
33504F
33504-33090-E1
Knob Sub-Assy, Shift Lever
[08.2009 - 06.2012] GSV40 ORCHID BROWN & DK.BROWN,TRIM01,BIRDS EYE MAPLE WOOD; ACV40 STEERING WHEEL-3-SPOKE WOOD & LEATHER,ORCHID BROWN & DK.BROWN,TRIM01,BIRDS EYE MAP LE WOOD |
33504-33090-E1 |
— | ||
|
33525
|
33525
58123-33030
Support, Shift Lever
[08.2009 -] ACV40,GSV40 |
58123-33030 |
— | ||
|
33550D
|
33550D
90981-30001 Bulb, Position Indicator Lamp[08.2009 -] ACV40,GSV40 14V 0.7W |
90981-30001 |
US $1.03 |
||
|
33550E
|
33550E
90339-04049 Cap, Position Indicator Lamp[08.2009 -] ACV40,GSV40 |
90339-04049 |
from US $1.48 |
||
|
33554C
|
33554C
33554-33080 Cover, Shift Lock Release ButtonSHIFT LOCK RELEASE BUTTON [08.2009 -] ACV40,GSV40 |
33554-33080 |
from US $3.49 |
||
|
33560C
|
33560C
33560-33150
Lever Assy, Shift, Lower
[08.2009 -] ACV40,GSV40 |
33560-33150 |
— | ||
|
35906
|
35906
35906-33120 Wire Sub-Assy, Indicator Lamp[08.2009 -] ACV40,GSV40 |
35906-33120 |
US $5.24 |
||
|
35952
|
35952
35952-33020 Lens, Position IndicatorPOSITION INDICATOR [08.2009 -] ACV40,GSV40 |
35952-33020 |
US $16.60 |
||
|
35970F
|
35970F
35970-33110 Housing Assy, Position IndicatorPOSITION INDICATOR [08.2009 -] ACV40,GSV40 |
35970-33110 |
US $110.66 |
||
|
35975
|
35975
35975-33090
Cover, Slide (For Position Indicator)
[08.2009 -] ACV40,GSV40 |
35975-33090 |
— | ||
|
35976
|
35976
35976-33110
Cover, Slide, No.2 (For Position Indicator)
[08.2009 -] ACV40,GSV40 |
35976-33110 |
— | ||
|
9163160816
|
9163160816
91631-60816 BOLT |
91631-60816 |
from US $1.05 |
||
|
9163160828
|
9163160828
91631-60828 BOLT WWASHER |
91631-60828 |
US $1.02 |
