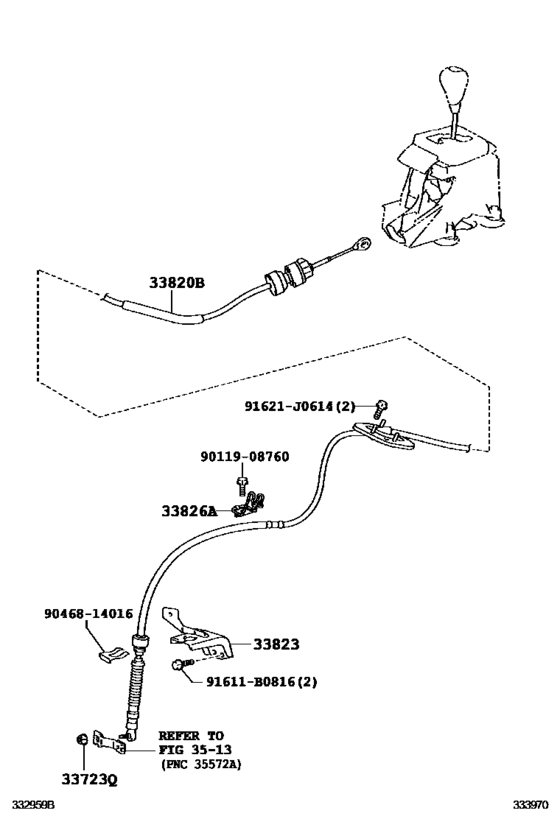

Shift Lever & Retainer ([08.2009 - ] (0908- )ACV40) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33723Q
|
33723Q
90179-08054 Nut (For Connecting Rod Swivel)[08.2009 -] ACV40,GSV40 |
90179-08054 |
US $1.79 |
||
|
33820B
|
33820B
33820-33320
Cable Assy, Transmission Control
[08.2009 -] ACV40 |
33820-33320 |
— | ||
|
33823
|
33823
33823-33090 Bracket, Transmission Control Cable, No.1[08.2009 -] ACV40 |
33823-33090 |
US $16.02 |
||
|
33826A
|
33826A
33826-33041 Bracket, Transmission Control Cable, No.2[08.2009 -] ACV40 |
33826-33041 |
US $3.49 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
91621J0614
|
91621J0614
91621-J0614 BOLT W-WASHER |
91621-J0614 |
from US $0.87 |
||
|
9011908760
|
9011908760
90119-08760 Bolt |
90119-08760 |
US $0.96 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.14 |
