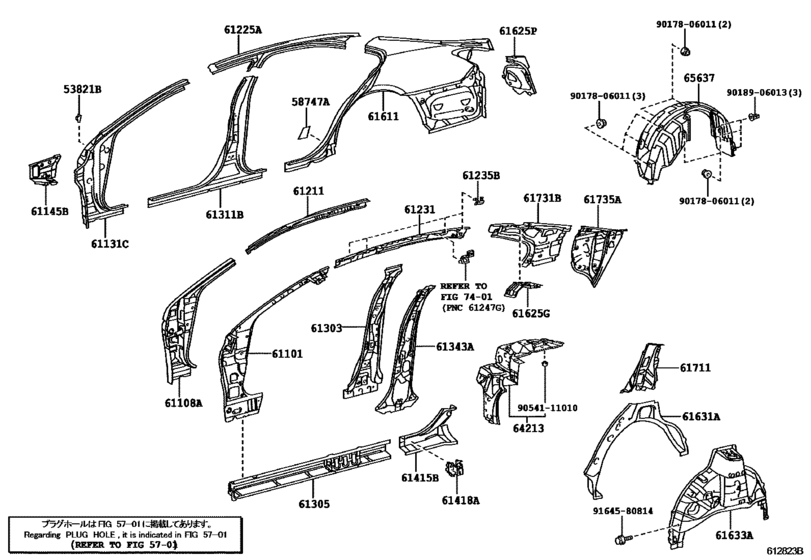

Side Member ([05.2006 - ] RH (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53821B
|
53821B
53821-48010 Bracket, Front Fender, Rear Rh[08.2009 -] ACV40,GSV40 |
53821-48010 |
US $4.37 |
||
|
58747A
|
58747A
58747-33050 Protector, Quarter Panel, Rear RhQUARTER PANEL, REAR RH [08.2009 -] ACV40,GSV40 |
58747-33050 |
from US $17.18 |
||
|
61101
|
61101
61101-33140 Panel Sub-Assy, Cowl Side, RhCOWL SIDE, RH [08.2009 - 06.2012] ACV40,GSV40 |
61101-33140 |
US $144.14 |
||
|
61108A
|
61108A
61108-33906 Reinforce Sub-Assy, Front Body Pillar, Lower RhFRONT BODY PILLAR, LOWER RH [08.2009 -] ACV40,GSV40 |
61108-33906 |
US $205.30 |
||
|
61131C
|
61131C
61131-33080 Pillar, Front Body, Outer RhFRONT BODY, OUTER RH [08.2009 -] ACV40,GSV40; ACV40,GSV40..CHI TAIWAN SPEC |
61131-33080 |
US $321.78 |
||
|
61145B
|
61145B
61145-33060 Gusset, Front Body Pillar, Lower RhFRONT BODY PILLAR, LOWER RH [08.2009 -] ACV40,GSV40 |
61145-33060 |
US $60.86 |
||
|
61211
|
61211
61201-33901
Rail, Roof Side, Outer Rh
[08.2009 -] ACV40,GSV40 |
61201-33901 |
— | ||
|
61225A
|
61225A
61213-33090
Rail, Roof Side Outer Upper No.1, Rh
[08.2009 -] ACV40,GSV40; ACV40,GSV40..CHI TAIWAN SPEC |
61213-33090 |
— | ||
|
61231
|
61231
61231-33100
Rail, Roof Side, Inner Rh
[08.2009 - 06.2012] ACV40,GSV40 |
61231-33100 |
— | ||
|
61235B
|
61235B
61235-33050
Bracket, Assist Grip
[08.2009 - 06.2012] ACV40,GSV40 |
61235-33050 |
— | ||
|
61303
|
61303
61303-33908
Reinforce Sub-Assy, Center Body Pillar, Upper Rh
[08.2009 -] ACV40,GSV40 |
61303-33908 |
— | ||
|
61305
|
61305
61305-33903 Reinforce Sub-Assy, Center Body Pillar, Lower RhCENTER BODY PILLAR, LOWER RH [08.2009 -] ACV40,GSV40 |
61305-33903 |
US $240.24 |
||
|
61311B
|
61311B
61311-33070
Pillar, Center Body, Outer Rh
[08.2009 -] ACV40,GSV40; ACV40,GSV40..CHI TAIWAN SPEC |
61311-33070 |
— | ||
|
61343A
|
61343A
61343-33903 Pillar, Center Body, Inner RhCENTER BODY, INNER RH [08.2009 -] ACV40,GSV40 |
61343-33903 |
US $286.83 |
||
|
61415B
|
61415B
61415-33060
Extension, Rocker, Outer Rh
[08.2009 -] ACV40,GSV40 |
61415-33060 |
— | ||
|
61418A
|
61418A
61418-33070 Reinforcement, Rocker Panel, Rh[08.2009 -] ACV40,GSV40 |
61418-33070 |
US $19.36 |
||
|
61611
|
61611
61601-33340 Panel, Quarter, RhQUARTER, RH [08.2009 -] ACV40,GSV40; ACV40,GSV40..CHI TAIWAN SPEC |
61601-33340 |
from US $802.28 |
||
|
61625G
|
61625G
61625-33070 Extension, Quarter Panel, Rear RhQUARTER PANEL, REAR RH [08.2009 -] ACV40,GSV40 |
61625-33070 |
US $25.63 |
||
|
61625P
|
61625P
61601-33320 Panel, Rear Body Rear Side Corner, RhREAR BODY REAR SIDE CORNER, RH [08.2009 -] ACV40,GSV40 |
61601-33320 |
US $106.53 |
||
|
61631A
|
61631A
61631-33080
Panel, Quarter Wheel House, Outer Rh
[08.2009 -] ACV40,GSV40 |
61631-33080 |
— | ||
|
61633A
|
61633A
61607-33060
Panel, Quarter Wheel House, Inner Rh
[08.2009 -] ACV40,GSV40 |
61607-33060 |
— | ||
|
61711
|
61711
61711-33080
Panel, Roof Side, Outer Rh
[08.2009 -] ACV40,GSV40 |
61711-33080 |
— | ||
|
61731B
|
61731B
61731-33120 Panel, Roof Side, Inner RhROOF SIDE, INNER RH [08.2009 -] ACV40,GSV40 |
61731-33120 |
US $170.35 |
||
|
61735A
|
61735A
61735-33090
Panel, Roof Side, Inner Rear Rh
[08.2009 -] ACV40,GSV40 |
61735-33090 |
— | ||
|
64213
|
64213
64201-33060 Extension, Package Tray Strainer, RhPACKAGE TRAY STRAINER, RH [08.2009 -] ACV40,GSV40 |
64201-33060 |
US $152.88 |
||
|
65637
|
65637
65637-33040
Liner, Rear Wheel House, Rh
[08.2009 -] ACV40,GSV40 |
65637-33040 |
— | ||
|
9017806011
|
9017806011
90178-06011 NUT FLANGE |
90178-06011 |
from US $0.72 |
||
|
9018906013
|
9018906013
90189-06013 CLIP |
90189-06013 |
from US $0.68 |
||
|
9054111010
|
9054111010
90541-11010 Cushion, Luggage Compartment Door |
90541-11010 |
from US $0.96 |
||
|
9164580814
|
9164580814
91645-80814 New Genuine Part |
91645-80814 |
US $1.46 |
