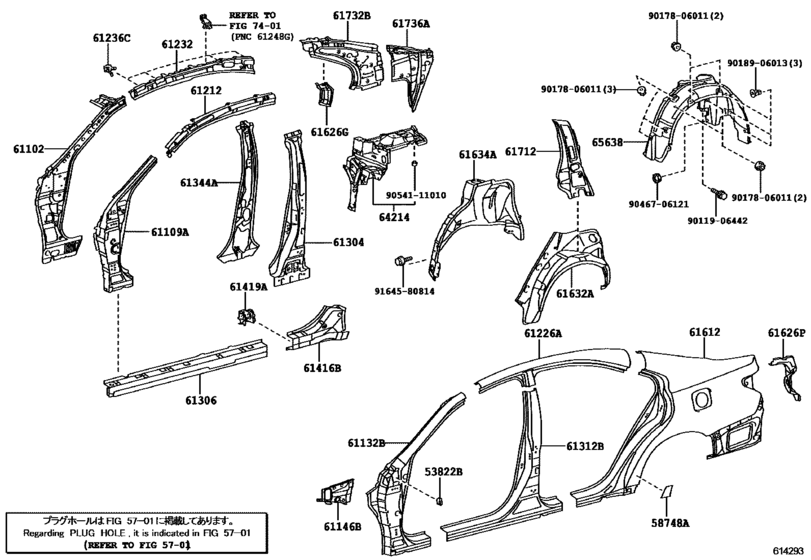

Side Member ([05.2006 - ] LH (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53822B
|
53822B
53822-48010 Bracket, Front Fender, Rear Lh[08.2009 -] ACV40,GSV40 |
53822-48010 |
US $4.37 |
||
|
58748A
|
58748A
58748-33050 Protector, Quarter Panel, Rear LhQUARTER PANEL, REAR LH [08.2009 -] ACV40,GSV40 |
58748-33050 |
from US $17.18 |
||
|
61102
|
61102
61102-33160
Panel Sub-Assy, Cowl Side, Lh
[08.2009 - 06.2012] ACV40,GSV40 |
61102-33160 |
— | ||
|
61109A
|
61109A
61109-33907
Reinforce Sub-Assy, Front Body Pillar, Lower Lh
[08.2009 -] ACV40,GSV40 |
61109-33907 |
— | ||
|
61132B
|
61132B
61132-33080 Pillar, Front Body, Outer LhFRONT BODY, OUTER LH [08.2009 -] ACV40,GSV40; ACV40,GSV40..CHI TAIWAN SPEC |
61132-33080 |
from US $248.92 |
||
|
61146B
|
61146B
61146-33060
Gusset, Front Body Pillar, Lower Lh
[08.2009 -] ACV40,GSV40 |
61146-33060 |
— | ||
|
61212
|
61212
61202-33901
Rail, Roof Side, Outer Lh
[08.2009 -] ACV40,GSV40 |
61202-33901 |
— | ||
|
61226A
|
61226A
61214-33090
Rail, Roof Side Outer Upper No.1, Lh
[08.2009 -] ACV40,GSV40; ACV40,GSV40..CHI TAIWAN SPEC |
61214-33090 |
— | ||
|
61232
|
61232
61232-33100
Rail, Roof Side, Inner Lh
[08.2009 - 06.2012] ACV40,GSV40 |
61232-33100 |
— | ||
|
61236C
|
61236C
61235-33050
Bracket, Assist Grip
[08.2009 - 06.2012] ACV40,GSV40 |
61235-33050 |
— | ||
|
61304
|
61304
61304-33906
Reinforce Sub-Assy, Center Body Pillar, Upper Lh
[08.2009 -] ACV40,GSV40 |
61304-33906 |
— | ||
|
61306
|
61306
61306-33902
Reinforce Sub-Assy, Center Body Pillar, Lower Lh
[08.2009 -] ACV40,GSV40 |
61306-33902 |
— | ||
|
61312B
|
61312B
61312-33070 Pillar, Center Body, Outer LhCENTER BODY, OUTER LH [08.2009 -] ACV40,GSV40; ACV40,GSV40..CHI TAIWAN SPEC |
61312-33070 |
US $205.28 |
||
|
61344A
|
61344A
61344-33903 Pillar, Center Body, Inner LhCENTER BODY, INNER LH [08.2009 -] ACV40,GSV40 |
61344-33903 |
US $288.29 |
||
|
61416B
|
61416B
61416-33060
Extension, Rocker, Outer Lh
[08.2009 -] ACV40,GSV40 |
61416-33060 |
— | ||
|
61419A
|
61419A
61418-33070 Reinforcement, Rocker Panel, Rh[08.2009 -] ACV40,GSV40 |
61418-33070 |
US $19.36 |
||
|
61612
|
61612
61602-33230
Panel, Quarter, Lh
[08.2009 -] ACV40,GSV40; ACV40,GSV40..CHI TAIWAN SPEC |
61602-33230 |
— | ||
|
61626G
|
61626G
61626-33070 Extension, Quarter Panel, Rear LhQUARTER PANEL, REAR LH [08.2009 -] ACV40,GSV40 |
61626-33070 |
US $25.63 |
||
|
61626P
|
61626P
61602-33210
Panel, Rear Body Rear Side Corner, Lh
[08.2009 -] ACV40,GSV40 |
61602-33210 |
— | ||
|
61632A
|
61632A
61632-33080
Panel, Quarter Wheel House, Outer Lh
[08.2009 -] ACV40,GSV40 |
61632-33080 |
— | ||
|
61634A
|
61634A
61608-33060
Panel, Quarter Wheel House, Inner Lh
[08.2009 -] ACV40,GSV40 |
61608-33060 |
— | ||
|
61712
|
61712
61712-33080
Panel, Roof Side, Outer Lh
[08.2009 -] ACV40,GSV40 |
61712-33080 |
— | ||
|
61732B
|
61732B
61732-33110 Panel, Roof Side, Inner LhROOF SIDE, INNER LH [08.2009 -] ACV40,GSV40 |
61732-33110 |
US $170.35 |
||
|
61736A
|
61736A
61736-33090
Panel, Roof Side, Inner Rear Lh
[08.2009 -] ACV40,GSV40 |
61736-33090 |
— | ||
|
64214
|
64214
64202-33060 Extension, Package Tray Strainer, LhPACKAGE TRAY STRAINER, LH [08.2009 -] ACV40,GSV40 |
64202-33060 |
US $151.42 |
||
|
65638
|
65638
65638-33040 Liner, Rear Wheel House, LhREAR WHEEL HOUSE, LH [08.2009 -] ACV40,GSV40 |
65638-33040 |
US $72.22 |
||
|
9011906442
|
9011906442
90119-06442 BOLT WWASHER |
90119-06442 |
from US $0.89 |
||
|
9017806011
|
9017806011
90178-06011 NUT FLANGE |
90178-06011 |
from US $0.72 |
||
|
9018906013
|
9018906013
90189-06013 CLIP |
90189-06013 |
from US $0.68 |
||
|
9046706121
|
9046706121
90467-06121 Clip, Rear Bumper Side |
90467-06121 |
from US $2.95 |
||
|
9054111010
|
9054111010
90541-11010 Cushion, Luggage Compartment Door |
90541-11010 |
from US $0.96 |
||
|
9164580814
|
9164580814
91645-80814 New Genuine Part |
91645-80814 |
US $1.46 |
