Starter ([05.2006 - ] 12V 1.7KW (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?

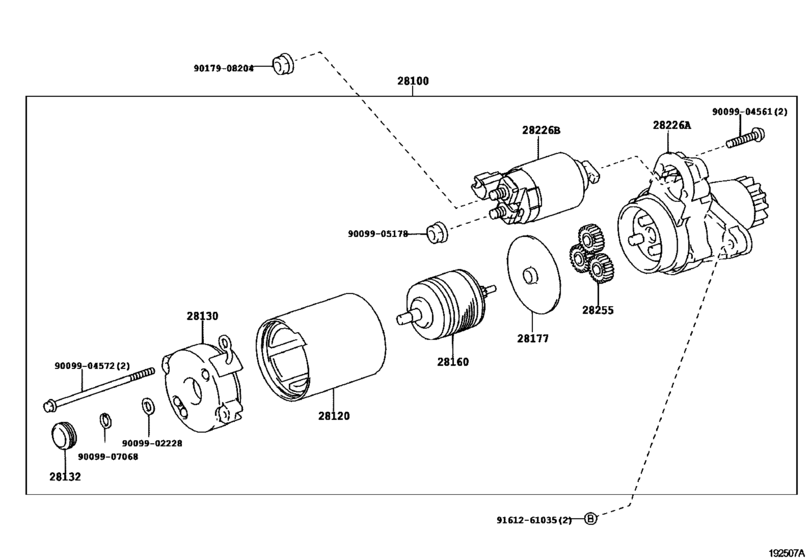

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28100
|
28100
28100-20020
Starter Assy
[08.2009 - 11.2009] 2AZFE,2GRFE..ACV40,GSV40 12V 1.7KW |
28100-20020 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-20022 Starter Assy[08.2009 - 11.2009] 2AZFE,2GRFE..ACV40,GSV40 12V 1.7KW |
28100-20022 |
US $886.70 |
||
|
28100
|
28100
28100-20021
Starter Assy
[12.2009 -] 2AZFE,2GRFE..ACV40,GSV40 12V 1.7KW |
28100-20021 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-20022 Starter Assy[12.2009 -] 2AZFE,2GRFE..ACV40,GSV40 12V 1.7KW |
28100-20022 |
US $886.70 |
||
|
28120
|
28120
28120-28060
Yoke Assy, Starter
[08.2009 -] 2AZFE,2GRFE..ACV40,GSV40 |
28120-28060 |
— | ||
|
28130
|
28130
28130-20020 Frame Assy, Starter Commutator End[08.2009 -] 2AZFE,2GRFE..ACV40,GSV40 |
28130-20020 |
US $32.85 |
||
|
28132
|
28132
28132-28040 Cover, Starter Bearing(For Drive Housing)[08.2009 -] 2AZFE,2GRFE..ACV40,GSV40 |
28132-28040 |
US $1.75 |
||
|
28160
|
28160
28160-28040 Armature Assy, Starter[08.2009 -] 2AZFE,2GRFE..ACV40,GSV40 |
28160-28040 |
US $211.41 |
||
|
28177
|
28177
28177-28040 Plate(For Starter Armature)[08.2009 -] 2AZFE,2GRFE..ACV40,GSV40 |
28177-28040 |
US $4.19 |
||
|
28226A
|
28226A
28226-28041
Starter Kit, Battery Terminal
[08.2009 -] 2AZFE,2GRFE..ACV40,GSV40 |
28226-28041 |
— | ||
|
28226B
|
28226B
28226-28051 Starter Kit, Repair Service[08.2009 -] 2AZFE,2GRFE..ACV40,GSV40 |
28226-28051 |
US $122.30 |
||
|
28255
|
28255
28255-20020
Gear, Planet
[08.2009 -] 2AZFE,2GRFE..ACV40,GSV40 |
28255-20020 |
— | ||
|
9009902228
|
9009902228
90099-02228 WASHER |
90099-02228 |
US $0.55 |
||
|
9009904561
|
9009904561
90099-04561
BOLT
|
90099-04561 |
— | ||
|
9009904572
|
9009904572
90099-04572
BOLT
|
90099-04572 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9009907068
|
9009907068
90099-07068 RING SNAP |
90099-07068 |
US $0.28 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $2.51 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
US $1.79 |
||
