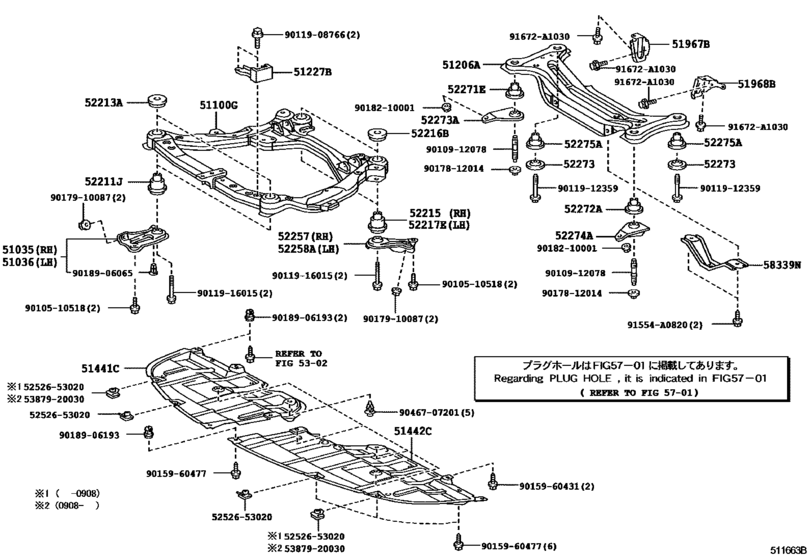

Suspension Crossmember & Under Cover ([05.2006 - ] (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51035
|
51035
51035-33030 Plate Sub-Assy, Frame Side Rail, Rh[08.2009 -] ACV40,GSV40 |
51035-33030 |
from US $41.35 |
||
|
51036
|
51036
51036-33030 Plate Sub-Assy, Frame Side Rail, Lh[08.2009 -] ACV40,GSV40 |
51036-33030 |
from US $41.35 |
||
|
51100G
|
51100G
51100-33070
Member Sub-Assy, Engine Front Support
[08.2009 -] ACV40,GSV40 |
51100-33070 |
— | ||
| replacements | |||||
|
51100G
|
51100G
51100-33072
Frame Assy, Front
[08.2009 -] ACV40,GSV40 |
51100-33072 |
— | ||
|
51100G
|
51100G
90119-08D06 BOLT W-WASHER[08.2009 -] ACV40,GSV40 |
90119-08D06 |
US $1.97 |
||
|
51206A
|
51206A
51206-33090
Member Sub-Assy, Rear Suspension
[08.2009 - 04.2010] ACV40,GSV40 |
51206-33090 |
— | ||
| replacement | |||||
|
51206A
|
51206A
51206-33091 Member Sub-Assy, Rear Suspension[08.2009 - 04.2010] ACV40,GSV40 |
51206-33091 |
US $653.20 |
||
|
51206A
|
51206A
51206-33091 Member Sub-Assy, Rear Suspension[05.2010 -] ACV40,GSV40 |
51206-33091 |
US $653.20 |
||
|
51227B
|
51227B
51227-33110 Damper, Front Suspension Member Dynamic[08.2009 -] ACV40,GSV40 |
51227-33110 |
US $50.81 |
||
|
51441C
|
51441C
51441-33120 Cover, Engine Under, RhENGINE UNDER, RH [08.2009 -] ACV40,GSV40..CHI |
51441-33120 |
US $83.37 |
||
|
51442C
|
51442C
51442-33120 Cover, Engine Under, LhENGINE UNDER, LH [08.2009 -] ACV40,GSV40..CHI |
51442-33120 |
US $106.06 |
||
|
51967B
|
51967B
51967-33030 Hook, Transport, Rear Rh[08.2009 -] ACV40,GSV40 |
51967-33030 |
US $27.37 |
||
|
51968B
|
51968B
51968-33020 Hook, Transport, Rear LhTRANSPORT, REAR LH [08.2009 -] ACV40,GSV40 |
51968-33020 |
from US $27.66 |
||
|
52211J
|
52211J
52211-33090 Cushion, Front Suspension Member Body Mounting, Front[08.2009 -] ACV40 |
52211-33090 |
US $45.94 |
||
|
52213A
|
52213A
52213-33090 Stopper, Front Suspension Member Body Mounting, Front[08.2009 -] ACV40 |
52213-33090 |
US $22.13 |
||
|
52215
|
52215
52215-33090 Cushion, Front Suspension Member Body Mounting, Rear[08.2009 -] ACV40,GSV40 |
52215-33090 |
US $87.36 |
||
|
52216B
|
52216B
52216-33070 Stopper, Front Suspension Member Body Mounting, Rear[08.2009 -] ACV40,GSV40 |
52216-33070 |
US $22.13 |
||
|
52217E
|
52217E
52217-33020 Cushion, Front Suspension Member Body Mounting, Rear Lh[08.2009 -] ACV40,GSV40 |
52217-33020 |
US $80.72 |
||
|
52257
|
52257
51023-33060 Bracket Sub-Assy, Front Suspension Member, Rh[08.2009 -] ACV40,GSV40 |
51023-33060 |
from US $33.20 |
||
|
52258A
|
52258A
51024-33070 Bracket Sub-Assy, Front Suspension Member, Lh[08.2009 -] ACV40,GSV40 |
51024-33070 |
from US $35.47 |
||
|
52271E
|
52271E
52271-33050 Cushion, Rear Suspension Member Body Mounting, Front[08.2009 - 05.2011] ACV40,GSV40 |
52271-33050 |
from US $30.23 |
||
|
52271E
|
52271E
52271-33051 Cushion, Rear Suspension Member Body Mounting, Front[06.2011 -] ACV40,GSV40 |
52271-33051 |
US $28.25 |
||
|
52272A
|
52272A
52272-33050 Cushion, Rear Suspension Member[08.2009 - 05.2011] ACV40,GSV40 |
52272-33050 |
from US $26.73 |
||
|
52272A
|
52272A
52272-33051 Cushion, Rear Suspension Member[06.2011 -] ACV40,GSV40 |
52272-33051 |
US $24.90 |
||
|
52273
|
52273
52273-33010 Stopper, Rear Suspension Member, Lower[08.2009 -] ACV40,GSV40 |
52273-33010 |
from US $8.04 |
||
|
52273A
|
52273A
52203-33030 Stopper Sub-Assy, Rear Suspension Member, Lower Rh[08.2009 -] ACV40,GSV40 |
52203-33030 |
from US $29.80 |
||
|
52274A
|
52274A
52204-33030 Stopper Sub-Assy, Rear Suspension Member, Lower Lh[08.2009 -] ACV40,GSV40 |
52204-33030 |
from US $29.80 |
||
|
52275A
|
52275A
52275-33050 Cushion, Rear Suspension Member Body Mounting, Rear[08.2009 - 05.2011] ACV40,GSV40 |
52275-33050 |
US $34.77 |
||
|
52275A
|
52275A
52275-33051 Cushion, Rear Suspension Member Body Mounting, Rear[06.2011 -] ACV40,GSV40 |
52275-33051 |
US $24.90 |
||
|
91554A0820
|
91554A0820
91554-A0820
New Genuine Part
|
91554-A0820 |
— | ||
|
91672A1030
|
91672A1030
91672-A1030 BOLT FLANGE |
91672-A1030 |
from US $1.14 |
||
|
5252653020
|
5252653020
52526-53020 Retainer, Front Bumper, Lower Side |
52526-53020 |
from US $1.41 |
||
|
5387920030
|
5387920030
53879-20030 Retainer, Front Fender Liner |
53879-20030 |
US $4.37 |
||
|
9010510518
|
9010510518
90105-10518 BOLT FLANGE |
90105-10518 |
from US $0.91 |
||
|
9010912078
|
9010912078
90109-12078 BOLT |
90109-12078 |
from US $2.62 |
||
|
9011908766
|
9011908766
90119-08766 BOLT WWASHER |
90119-08766 |
US $1.93 |
||
|
9011912359
|
9011912359
90119-12359 BOLT W-WASHER |
90119-12359 |
from US $3.23 |
||
| replacement | |||||
|
9011912359
|
9011912359
90080-11721 New Genuine Part |
90080-11721 |
US $21.72 |
||
|
9011916015
|
9011916015
90119-16015 BOLT |
90119-16015 |
from US $5.64 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.72 |
||
|
9015960477
|
9015960477
90159-60477 SCREW, WWASHER |
90159-60477 |
from US $0.68 |
||
|
9017812014
|
9017812014
90178-12014 NUT FLANGE |
90178-12014 |
from US $1.46 |
||
|
9017910087
|
9017910087
90179-10087 Nut (For Front Lower Ball Joint Setting) |
90179-10087 |
from US $0.99 |
||
|
9018210001
|
9018210001
90182-10001 NUT WWASHER |
90182-10001 |
US $2.33 |
||
|
9018906065
|
9018906065
90189-06065 CLIP |
90189-06065 |
from US $0.74 |
||
|
9018906193
|
9018906193
90189-06193 Grommet(For Engine Under Cover) |
90189-06193 |
from US $0.74 |
||
|
9046707201
|
9046707201
90467-07201 Clamp(For Cool Air Intake) |
90467-07201 |
from US $0.93 |
||
