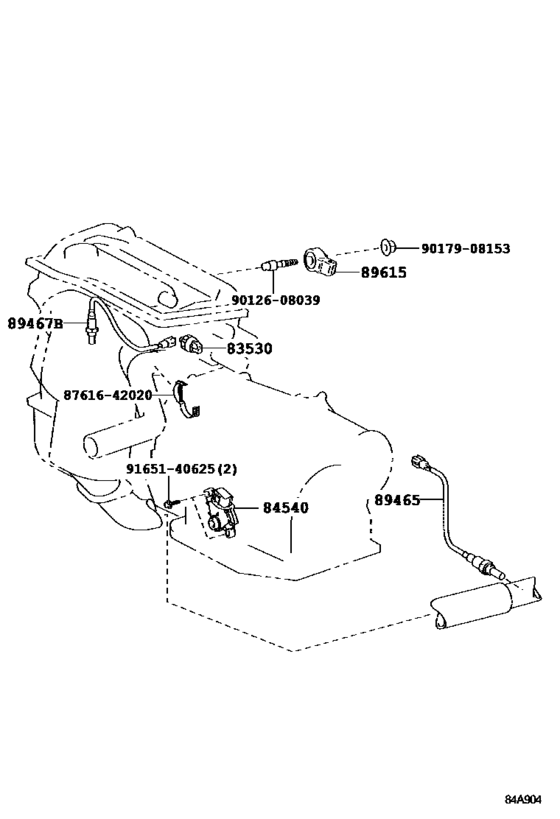

Switch & Relay & Computer ([08.2009 - ] ENGINE & TRANSMISSION (0908- )ACV40) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[08.2009 -] ACV40,GSV40 DENSO |
83530-28020 |
from US $23.56 |
||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [08.2009 -] ACV40,GSV40 DENSO |
83530-60020 |
from US $23.22 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [08.2009 -] ACV40,GSV40 YAZAKI |
83530-60020 |
from US $23.22 |
||
|
84540
|
84540
84540-48010 Switch Assy, Neutral Start[08.2009 - 06.2012] ACV40 |
84540-48010 |
from US $121.13 |
||
|
89465
|
89465
89465-33440 Sensor, OxygenOXYGEN [08.2009 -] ACV40 |
89465-33440 |
US $182.40 |
||
|
89467B
|
89467B
89467-33160 Sensor, Air Fuel Ratio[08.2009 -] ACV40 |
89467-33160 |
from US $199.92 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[08.2009 -] ACV40 |
89615-20090 |
from US $39.82 |
||
|
8761642020
|
8761642020
87616-42020 Clamp, Cooling Unit Case |
87616-42020 |
US $4.66 |
||
|
9012608039
|
9012608039
90126-08039 Bolt, Stud(For Oil Pan) |
90126-08039 |
US $4.30 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.76 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.25 |
||
