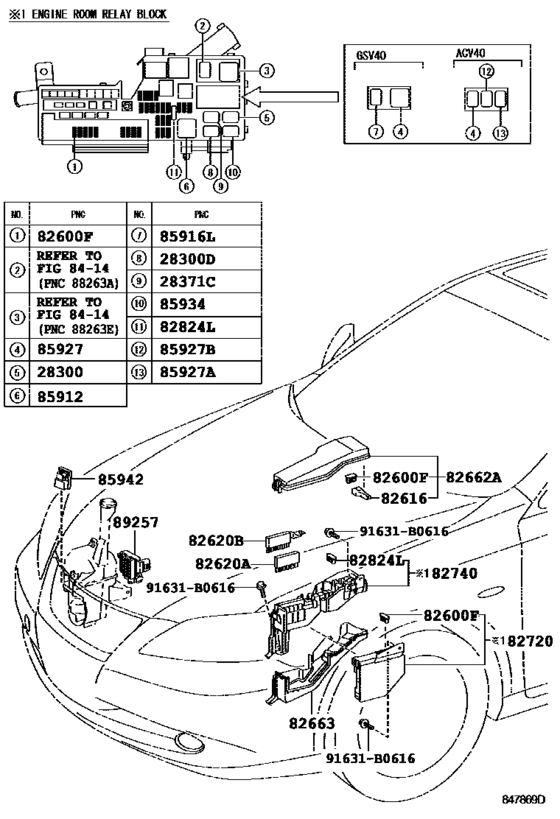

Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-28010
Relay Assy, Starter
[08.2009 -] 2AZFE,2GRFE..ACV40,GSV40 |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[08.2009 -] 2AZFE,2GRFE..ACV40,GSV40 |
28300-21020 |
from US $40.58 |
||
|
28300D
|
28300D
90987-02027 Relay[08.2009 -] 2AZFE,2GRFE..ACV40,GSV40 |
90987-02027 |
from US $44.54 |
||
|
28371C
|
28371C
90987-02027 Relay[08.2009 -] 2AZFE,2GRFE..ACV40,GSV40 |
90987-02027 |
from US $44.54 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[08.2009 -] ACV40,GSV40 7.5A,MINI FUSE; GSV40..GCC 7.5A,MINI FUSE,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[08.2009 -] ACV40,GSV40 10A,MINI FUSE; GSV40..GCC 10A,MINI FUSE,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[08.2009 -] ACV40,GSV40 15A,MINI FUSE; GSV40..GCC 15A,MINI FUSE,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[08.2009 -] ACV40,GSV40 20A,MINI FUSE; GSV40..GCC 20A,MINI FUSE,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[08.2009 -] ACV40,GSV40 25A,MINI FUSE; GSV40..GCC 25A,MINI FUSE,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[08.2009 -] ACV40,GSV40 30A,MINI FUSE; GSV40..GCC 30A,MINI FUSE,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
90982-09025 |
from US $0.96 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[08.2009 -] ACV40,GSV40 |
82616-58010 |
from US $2.40 |
||
|
82620A
|
82620A
82620-07090 Block Assy, Fusible Link[08.2009 -] ACV40,GSV40 |
82620-07090 |
from US $18.72 |
||
|
82620B
|
82620B
82620-07080 Block Assy, Fusible LinkFUSIBLE LINK [08.2009 -] ACV40,GSV40 |
82620-07080 |
US $21.33 |
||
|
82662A
|
82662A
82662-33280
Cover, Relay Block, Upper, No.1
[08.2009 -] ACV40 |
82662-33280 |
— | ||
|
82663
|
82663
82663-33070 Cover, Relay Block, Lower[08.2009 -] ACV40,GSV40 |
82663-33070 |
from US $36.64 |
||
|
82720
|
82720
82720-33120 Block Assy, Engine Room Junction[08.2009 -] ACV40 |
82720-33120 |
from US $185.27 |
||
|
82740
|
82740
82740-33020 Block Assy, Engine Room Relay[08.2009 -] ACV40 |
82740-33020 |
US $70.62 |
||
|
82824L
|
82824L
82824-41010 Pin, Short[08.2009 -] ACV40,GSV40 |
82824-41010 |
from US $3.24 |
||
|
85912
|
85912
90987-04010 Relay Assy (For Heater Blower Motor)[08.2009 -] ACV40,GSV40 |
90987-04010 |
from US $42.71 |
||
|
85916L
|
85916L
90987-02027 Relay[08.2009 -] ACV40,GSV40..CHI |
90987-02027 |
from US $44.54 |
||
|
85927
|
85927
90987-02027 Relay[08.2009 -] ACV40 |
90987-02027 |
from US $44.54 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[08.2009 -] ACV40 |
90987-04004 |
from US $42.71 |
||
|
85927B
|
85927B
90987-02027 Relay[08.2009 -] ACV40 |
90987-02027 |
from US $44.54 |
||
|
85942
|
85942
85942-30020 Relay, Headlamp Cleaner Control[08.2009 - 06.2010] ACV40,GSV40 |
85942-30020 |
US $145.60 |
||
| replacement | |||||
|
85942
|
85942
85942-58010 Relay, Cleaner Control[08.2009 - 06.2010] ACV40,GSV40 |
85942-58010 |
from US $115.77 |
||
|
85942
|
85942
85942-58010 Relay, Cleaner Control[07.2010 - 06.2012] ACV40,GSV40 |
85942-58010 |
from US $115.77 |
||
|
91631B0616
|
91631B0616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.70 |
||
