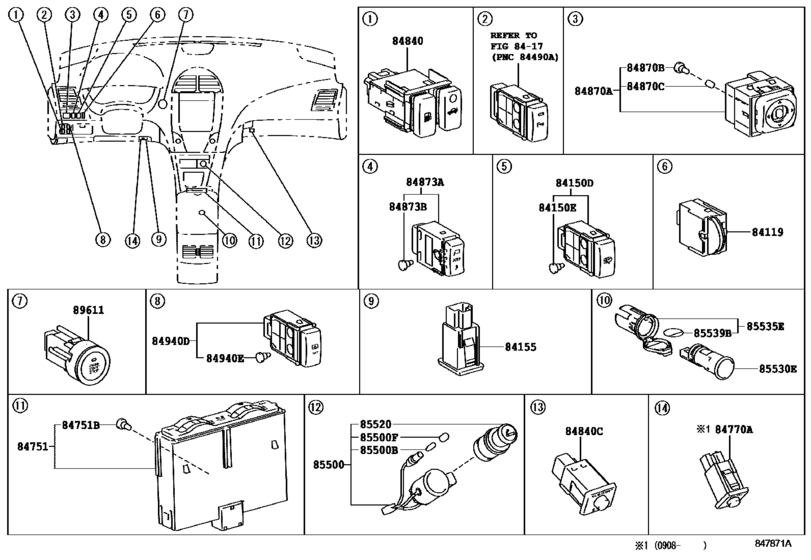

Switch & Relay & Computer ([05.2006 - ] INSTRUMENT PANEL (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84119
|
84119
84119-33140 Rheostat, Light Control[08.2009 -] ACV40,GSV40 |
84119-33140 |
US $67.27 |
||
|
84150D
|
84150D
84150-30010 Switch Assy, Headlamp Cleaner[08.2009 -] ACV40,GSV40 |
84150-30010 |
from US $47.76 |
||
|
84150E
|
84150E
90010-01096 Bulb, Retractable Outer Mirror Switch[08.2009 -] ACV40,GSV40 14V 0.91W,W(CAP) |
90010-01096 |
from US $3.88 |
||
|
84155
|
84155
84155-48010 Switch, Headlamp Swivel Main[08.2009 -] ACV40,GSV40 |
84155-48010 |
US $40.19 |
||
|
84751
|
84751
84751-30180 Switch, Seat Heater[08.2009 -] ACV40,GSV40 |
84751-30180 |
US $195.10 |
||
|
84751B
|
84751B
90010-01070 Bulb, Seat Heater Switch[08.2009 -] ACV40,GSV40 14V 1.8W,W(GREEN CAP) |
90010-01070 |
from US $4.73 |
||
|
84840
|
84840
84840-33080 Switch Assy, Luggage Compartment Door Opening[08.2009 -] ACV40,GSV40 |
84840-33080 |
US $52.85 |
||
|
84840C
|
84840C
84840-51020 Switch Assy, Luggage Door Opening, Cancel[08.2009 -] ACV40,GSV40 |
84840-51020 |
US $31.16 |
||
|
84870A
|
84870A
84872-30020 Switch Assy, Outer Mirror, No.2[08.2009 -] ACV40,GSV40 |
84872-30020 |
US $100.04 |
||
|
84870B
|
84870B
84999-10470 Bulb, Hazard Warning Signal Switch[08.2009 -] ACV40,GSV40 14V 1.12W |
84999-10470 |
from US $4.92 |
||
|
84870C
|
84870C
84998-10430 Cap, Outer Mirror Switch Bulb[08.2009 -] ACV40,GSV40 |
84998-10430 |
from US $1.71 |
||
|
84873A
|
84873A
84873-30020 Switch, Retractable Outer Mirror[08.2009 -] ACV40,GSV40 |
84873-30020 |
US $69.96 |
||
|
84873B
|
84873B
90010-01095 Bulb, Retractable Outer Mirror Switch[08.2009 -] ACV40,GSV40 14V0.63W,W(GREEN CAP) |
90010-01095 |
US $4.80 |
||
|
84940D
|
84940D
84940-33030
Switch Assy, Rear Sun Shade
[08.2009 -] ACV40,GSV40 |
84940-33030 |
— | ||
|
84940E
|
84940E
90010-01117
Bulb(For Back Sonar Switch)
[08.2009 -] ACV40,GSV40 14V 0.98W |
90010-01117 |
— | ||
|
85500
|
85500
85500-24050 Lighter Assy, Cigarette[08.2009 - 06.2012] ACV40,GSV40 |
85500-24050 |
US $64.28 |
||
|
85500B
|
85500B
90981-11018 Bulb, Position Indicator Lamp[08.2009 -] ACV40,GSV40 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.01 |
||
|
85500F
|
85500F
84998-10510 Cap, Cigarette Lighter Bulb[08.2009 -] ACV40,GSV40 |
84998-10510 |
US $4.12 |
||
|
85520
|
85520
85520-89101 Knob And Element Assy, Cigarette Lighter[08.2009 -] ACV40,GSV40 |
85520-89101 |
from US $16.74 |
||
|
85530E
|
85530E
85530-42010 Socket Assy, Power Outlet, No.1[08.2009 -] ACV40,GSV40 |
85530-42010 |
from US $25.59 |
||
|
85535E
|
85535E
85535-28060-C0
Cover, Power Outlet Socket, No.1
[08.2009 - 06.2012] ACV40,GSV40..CHI BLACK,TRIM0#,1#,2# |
85535-28060-C0 |
— | ||
|
85539B
|
85539B
85539-48030
Label, Power Outlet Notice
[08.2009 -] ACV40,GSV40..CHI |
85539-48030 |
— | ||
|
89611
|
89611
89611-30021 Switch, Push Start[08.2009 - 12.2009] ACV40,GSV40 |
89611-30021 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-30025 Switch, Push Start[08.2009 - 12.2009] ACV40,GSV40 |
89611-30025 |
US $153.70 |
||
|
89611
|
89611
89611-30022 Switch, Push StartPUSH START [01.2010 - 04.2011] ACV40,GSV40 |
89611-30022 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-30025 Switch, Push Start[01.2010 - 04.2011] ACV40,GSV40 |
89611-30025 |
US $153.70 |
||
|
89611
|
89611
89611-30023 Switch, Push Start[05.2011 - 05.2012] ACV40,GSV40 |
89611-30023 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-30025 Switch, Push Start[05.2011 - 05.2012] ACV40,GSV40 |
89611-30025 |
US $153.70 |
||
