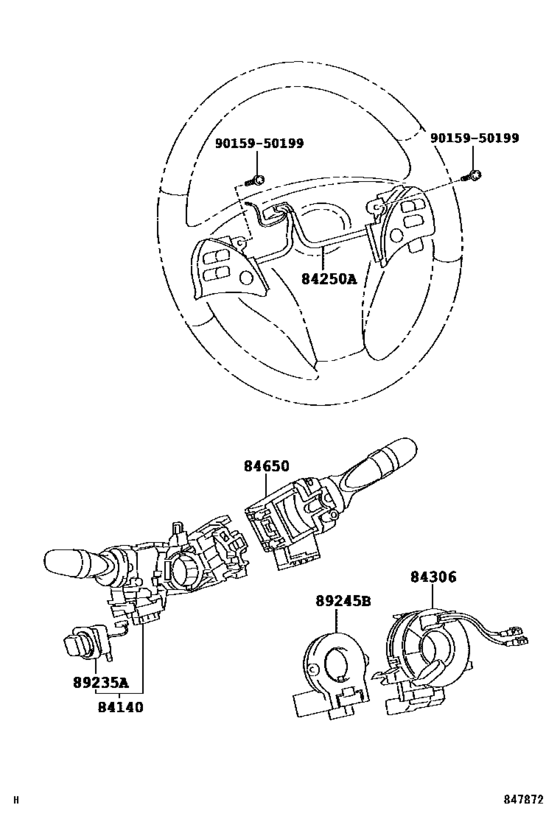

Switch & Relay & Computer ([05.2006 - ] IGNITION & COMBINATION SWITCH (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-30311 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2009 -] ACV40,GSV40..CHI |
84140-30311 |
from US $125.22 |
||
|
84250A
|
84250A
84250-33260
Switch Assy, Steering Pad
[08.2009 -] ACV40;GSV40..GCC |
84250-33260 |
— | ||
|
84250A
|
84250A
84250-33280
Switch Assy, Steering Pad
[08.2009 -] ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; ACV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
84250-33280 |
— | ||
|
84306
|
84306
84306-48030 Cable Sub-Assy, Spiral[08.2009 -] ACV40,GSV40 |
84306-48030 |
US $147.04 |
||
| replacement | |||||
|
84306
|
84306
84306-48031 CABLE SUBASSY[08.2009 -] ACV40,GSV40 |
84306-48031 |
from US $141.19 |
||
|
84650
|
84650
84652-33441
Switch Assy, Windshield Wiper
[08.2009 -] ACV40,GSV40 |
84652-33441 |
— | ||
|
89235A
|
89235A
89235-48010 Switch, Tilt & Telescopic[08.2009 -] ACV40,GSV40 |
89235-48010 |
US $40.19 |
||
|
89245B
|
89245B
89245-52030 Sensor, Steering[08.2009 - 06.2012] ACV40,GSV40 |
89245-52030 |
from US $211.41 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.67 |
||
