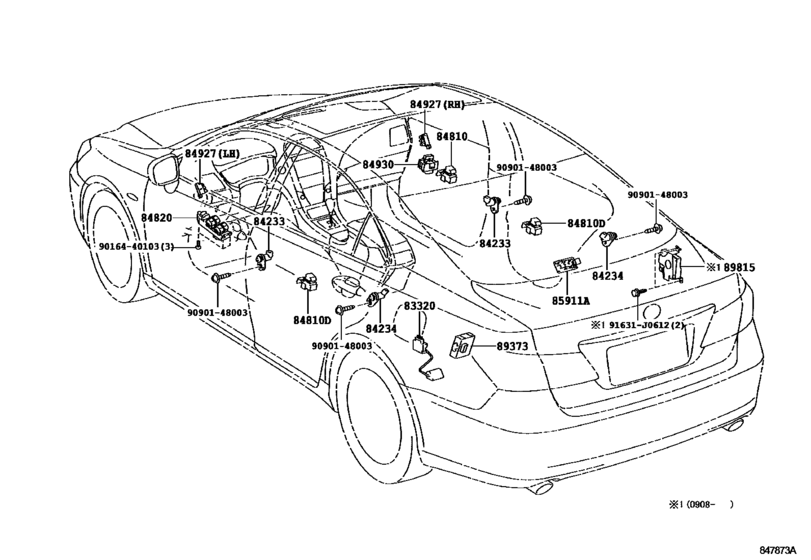

Switch & Relay & Computer ([05.2006 - ] DOOR,ROOF,FLOOR & LUGGAGE (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-33100 Gage Assy, Fuel Sender[08.2009 - 06.2012] ACV40 |
83320-33100 |
from US $36.69 |
||
|
84233
|
84233
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[08.2009 -] ACV40,GSV40 |
84231-53010 |
from US $11.83 |
||
|
84234
|
84234
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[08.2009 -] ACV40,GSV40 |
84231-53010 |
from US $11.83 |
||
|
84810
|
84810
84810-33110 Switch Assy, Power Window Regulator[08.2009 -] ACV40,GSV40 |
84810-33110 |
US $128.13 |
||
|
84810D
|
84810D
84810-33110 Switch Assy, Power Window Regulator[08.2009 -] ACV40,GSV40 |
84810-33110 |
US $128.13 |
||
|
84820
|
84820
84040-33070
Master Switch Assy, Power Window Regulator
[08.2009 -] ACV40,GSV40 |
84040-33070 |
— | ||
|
84927
|
84927
84927-33060
Switch, Seat Memory
[08.2009 - 06.2012] GSV40 LH; ACV40 ULTRA LUXURY PACKAGE,LH |
84927-33060 |
— | ||
|
84927
|
84927
84927-33070
Switch, Seat Memory
[08.2009 - 06.2012] GSV40 RH; ACV40 ULTRA LUXURY PACKAGE,RH |
84927-33070 |
— | ||
|
84930
|
84930
84930-30070 Switch Assy, Door Control[08.2009 -] ACV40,GSV40 |
84930-30070 |
US $37.13 |
||
|
85911A
|
85911A
85911-50010 Relay, Rear Sunshade[08.2009 - 06.2012] ACV40,GSV40 |
85911-50010 |
US $313.04 |
||
|
89373
|
89373
89373-43020 Sensor, Lamp Failure Indicator[08.2009 -] ACV40,GSV40..CHI |
89373-43020 |
US $145.60 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.72 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.97 |
