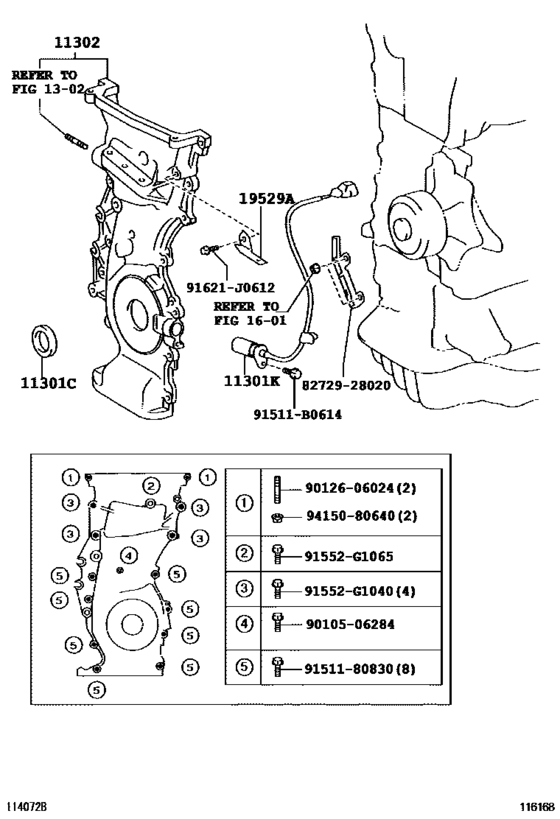

Timing Gear Cover & Rear End Plate ([08.2009 - ] (0908- )2AZFE) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11301C
|
11301C
90311-38089 Seal, Oil(For Timing Gear Case Or Timing Chain Case)[08.2009 - 04.2012] 2AZFE..ACV40 |
90311-38089 |
from US $7.17 |
||
|
11301C
|
11301C
90311-38098 Seal, Oil(For Timing Gear Case Or Timing Chain Case)[04.2012 -] 2AZFE..ACV40 |
90311-38098 |
from US $7.17 |
||
|
11301K
|
11301K
90919-05047 Sensor, Crank Position[08.2009 -] 2AZFE..ACV40 |
90919-05047 |
from US $78.79 |
||
|
11302
|
11302
11310-28071 Cover Sub-Assy, Timing Chain Or Belt[08.2009 -] 2AZFE..ACV40 |
11310-28071 |
from US $208.91 |
||
|
19529A
|
19529A
19529-28010 Clamp[08.2009 -] 2AZFE..ACV40 |
19529-28010 |
US $4.22 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.67 |
||
|
91552G1040
|
91552G1040
91552-G1040 BOLT FLANGE |
91552-G1040 |
US $2.15 |
||
|
91552G1065
|
91552G1065
91552-G1065 BOLT FLANGE |
91552-G1065 |
US $1.93 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
8272928020
|
8272928020
82729-28020 New Genuine Part |
82729-28020 |
US $2.91 |
||
|
9010506284
|
9010506284
90105-06284 New Genuine Part |
90105-06284 |
US $0.73 |
||
|
9012606024
|
9012606024
90126-06024 STUD HEX LOBULAR |
90126-06024 |
US $1.79 |
||
|
9151180830
|
9151180830
91511-80830 Bolt(For Alternator) |
91511-80830 |
US $3.58 |
||
|
9415080640
|
9415080640
94150-80640 NUT FLANGE |
94150-80640 |
from US $0.72 |
