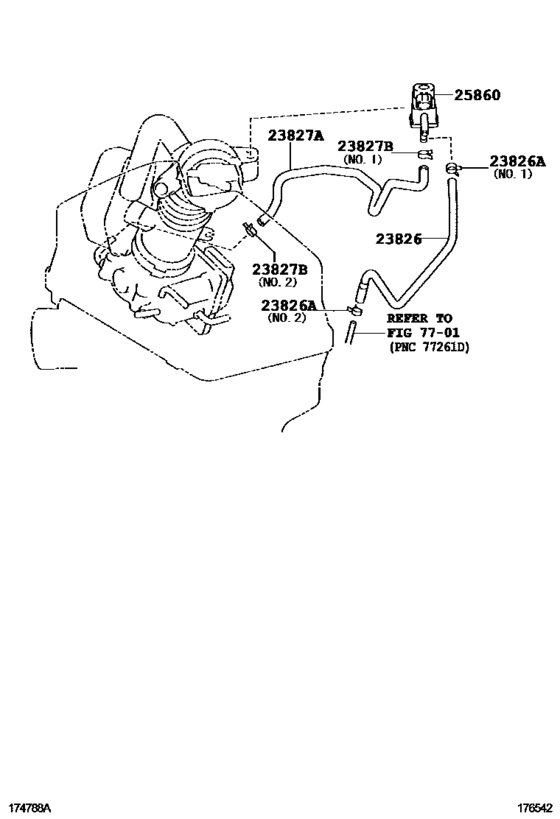

Vacuum Piping ([08.2009 - ] (0908- )2AZFE) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23826
|
23826
23826-28300 Hose, Fuel Vapor Feed, No.1[08.2009 -] 2AZFE..ACV40 |
23826-28300 |
from US $13.59 |
||
|
23826A
|
23826A
90466-11003 Clamp Or Clip(For Radiator Reserve Tank Hose)[08.2009 -] 2GRFE..GSV40 NO.1; 2AZFE..ACV40 NO.1 |
90466-11003 |
from US $1.79 |
||
| replacement | |||||
|
23826A
|
23826A
90466-A0001 Clip(For Fuel Vapor Feed Hose, No.1)[08.2009 -] 2GRFE..GSV40 NO.1; 2AZFE..ACV40 NO.1 |
90466-A0001 |
US $3.15 |
||
|
23826A
|
23826A
96132-51300 Clip(For Ventilation Hose No.2)[08.2009 -] 2AZFE..ACV40 NO.2 |
96132-51300 |
from US $1.44 |
||
|
23827A
|
23827A
23826-28290 Hose, Fuel Vapor Feed, No.2[08.2009 -] 2AZFE..ACV40 |
23826-28290 |
from US $11.95 |
||
|
23827B
|
23827B
90466-11003 Clamp Or Clip(For Radiator Reserve Tank Hose)[08.2009 -] 2AZFE..ACV40 NO.1 |
90466-11003 |
from US $1.79 |
||
| replacement | |||||
|
23827B
|
23827B
90466-A0001 Clip(For Fuel Vapor Feed Hose, No.1)[08.2009 -] 2AZFE..ACV40 NO.1 |
90466-A0001 |
US $3.15 |
||
|
23827B
|
23827B
96132-51000 Clip Or Clamp(For Ventilation Hose)[08.2009 -] 2AZFE..ACV40 NO.2 |
96132-51000 |
from US $1.44 |
||
|
25860
|
25860
25860-28160 Valve Assy, Vacuum Switching, No.1[08.2009 -] 2AZFE..ACV40 |
25860-28160 |
from US $48.64 |
||
