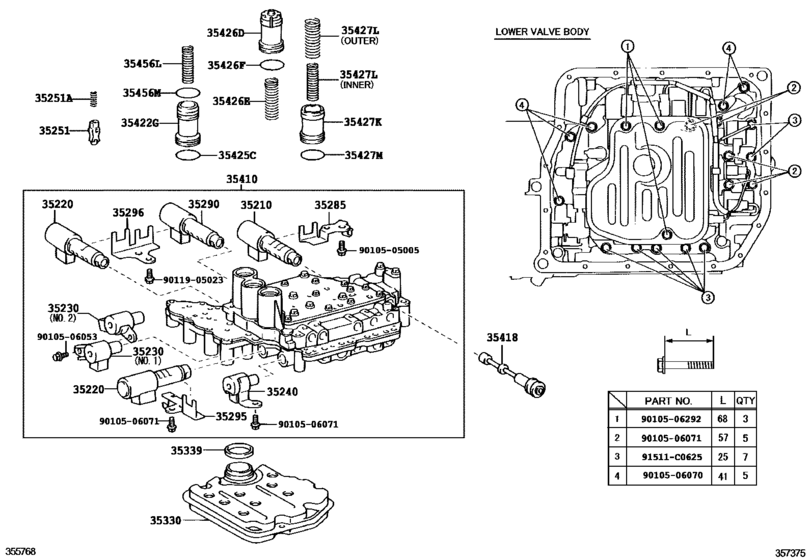

Valve Body & Oil Strainer (Atm) ([08.2009 - ] U250E (0908- )ACV40) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35210
|
35210
35210-33020 Solenoid Assy, Clutch Control, No.1[08.2009 -] ACV40 |
35210-33020 |
from US $117.29 |
||
|
35220
|
35220
35220-33020 Solenoid Assy, Clutch Control, No.2[08.2009 -] ACV40 |
35220-33020 |
from US $122.76 |
||
|
35230
|
35230
35230-33010 Solenoid Assy, Transmission 3Way, No.2[08.2009 -] ACV40 NO.1 |
35230-33010 |
US $227.14 |
||
|
35230
|
35230
35230-33020 Solenoid Assy, Transmission 3Way, No.2[08.2009 -] ACV40 NO.2 |
35230-33020 |
US $209.66 |
||
|
35240
|
35240
35240-33030 Solenoid Assy, Automatic Transmission 3Way[08.2009 -] ACV40 |
35240-33030 |
US $209.66 |
||
|
35251
|
35251
35251-30020 Body, Check Ball[08.2009 -] ACV40 |
35251-30020 |
US $14.50 |
||
|
35251A
|
35251A
90501-03005 Spring, Compression (For Check Ball Body)[08.2009 -] ACV40 |
90501-03005 |
from US $0.79 |
||
|
35285
|
35285
35285-33030 Plate, Solenoid Lock[08.2009 -] ACV40 |
35285-33030 |
US $3.79 |
||
|
35290
|
35290
35290-33020 Solenoid Assy, Line Pressure Control[08.2009 -] ACV40 |
35290-33020 |
from US $131.04 |
||
|
35295
|
35295
35295-33010 Plate, Solenoid Lock, No.2[08.2009 -] ACV40 |
35295-33010 |
US $4.37 |
||
|
35296
|
35296
35296-33010 Plate, Solenoid Lock, No.3[08.2009 -] ACV40 |
35296-33010 |
US $4.37 |
||
|
35330
|
35330
35330-08010 Strainer Assy, Valve Body Oil[08.2009 -] ACV40 |
35330-08010 |
from US $58.03 |
||
|
35339
|
35339
90301-32012 Gasket, Oil Strainer[08.2009 -] ACV40 |
90301-32012 |
from US $2.22 |
||
|
35410
|
35410
35410-33131 Body Assy, Transmission Valve[08.2009 -] ACV40 |
35410-33131 |
from US $1,243.99 |
||
|
35418
|
35418
35418-33010
Valve, Manual
[08.2009 -] ACV40 |
35418-33010 |
— | ||
|
35422G
|
35422G
35422-33040
Piston, Reverse Clutch Accumulator
[08.2009 -] ACV40 |
35422-33040 |
— | ||
|
35425C
|
35425C
90301-30007 Ring, O (For C-1 Accumulator Piston)[08.2009 -] ACV40 |
90301-30007 |
from US $2.53 |
||
|
35426D
|
35426D
35406-21010 Piston, C-3 Accumulator[08.2009 -] ACV40 |
35406-21010 |
from US $25.31 |
||
|
35426E
|
35426E
90501-22056 Spring, Compression (For C-3 Accumulator Piston)[08.2009 -] ACV40 |
90501-22056 |
US $2.80 |
||
|
35426F
|
35426F
90301-30007 Ring, O (For C-1 Accumulator Piston)[08.2009 -] ACV40 |
90301-30007 |
from US $2.53 |
||
|
35427K
|
35427K
35427-28010 Piston, B-3 Accumulator[08.2009 -] ACV40 |
35427-28010 |
US $23.41 |
||
|
35427L
|
35427L
90501-19037 Spring, Compression (For B-3 Accumulator Piston)[08.2009 -] ACV40 INNER |
90501-19037 |
US $1.40 |
||
|
35427L
|
35427L
90501-26096 Spring, Compression (For B-3 Accumulator Piston)[08.2009 -] ACV40 OUTER |
90501-26096 |
US $3.32 |
||
|
35427M
|
35427M
90301-28008 Ring, O (For C-2 Accumulator Piston)[08.2009 -] ACV40 |
90301-28008 |
from US $2.34 |
||
|
35456L
|
35456L
90501-19038 Spring, Compression (For C-2 Control Valve)[08.2009 -] ACV40 |
90501-19038 |
US $1.40 |
||
|
35456M
|
35456M
90301-19016 Ring, O (For B-2 Accumulator Piston)[08.2009 -] ACV40 |
90301-19016 |
US $2.80 |
||
|
91511C0625
|
91511C0625
91511-C0625
Bolt(For Cylinder Head Cover)
|
91511-C0625 |
— | ||
| replacement | |||||
|
91511C0625
|
91511C0625
91551-A0625 Bolt(For Cylinder Head Cover) |
91551-A0625 |
US $1.08 |
||
|
9010505005
|
9010505005
90105-05005 Bolt (For Transfer Relief Valve Plate) |
90105-05005 |
US $1.25 |
||
|
9010506053
|
9010506053
90105-06053 Bolt(For Sensor Rotor Adapter) |
90105-06053 |
US $1.25 |
||
|
9010506070
|
9010506070
90105-06070 New Genuine Part |
90105-06070 |
US $1.46 |
||
|
9010506071
|
9010506071
90105-06071 New Genuine Part |
90105-06071 |
US $1.46 |
||
|
9010506292
|
9010506292
90105-06292 New Genuine Part |
90105-06292 |
US $0.87 |
||
|
9011905023
|
9011905023
90119-05023 New Genuine Part |
90119-05023 |
US $1.02 |
||
