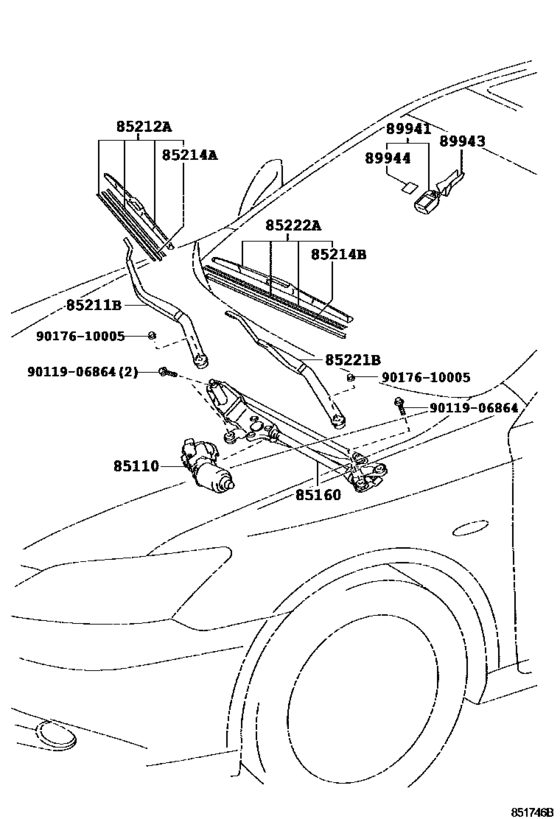

Windshield Wiper ([05.2006 - ] (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-33330
Motor Assy, Windshield Wiper
[08.2009 -] ACV40,GSV40 |
85110-33330 |
— | ||
|
85160
|
85160
85150-33240
Link Assy, Windshield Wiper
[08.2009 -] ACV40,GSV40 |
85150-33240 |
— | ||
|
85211B
|
85211B
85211-33300 Arm, Front Wiper, RhFR WIPER, RH [08.2009 -] ACV40,GSV40 |
85211-33300 |
US $59.40 |
||
|
85212A
|
85212A
85212-33231 Blade, Fr Wiper, RhFR WIPER, RH [08.2009 -] ACV40,GSV40 |
85212-33231 |
from US $39.41 |
||
|
85214A
|
85214A
85214-30390 Rubber, Wiper, LhWIPER, RH [08.2009 -] ACV40,GSV40 |
85214-30390 |
from US $13.13 |
||
|
85214B
|
85214B
85214-30380 Rubber, Wiper, Rh[08.2009 -] ACV40,GSV40 |
85214-30380 |
from US $14.19 |
||
|
85221B
|
85221B
85221-33290
Arm, Front Wiper, Lh
[08.2009 -] ACV40,GSV40..CHI |
85221-33290 |
— | ||
|
85222A
|
85222A
85222-33241 Blade, Fr Wiper, LhFR WIPER, LH [08.2009 -] ACV40,GSV40 |
85222-33241 |
from US $52.04 |
||
|
89941
|
89941
89941-42010 Sensor, Rain[08.2009 -] ACV40,GSV40..CHI |
89941-42010 |
US $220.80 |
||
|
89943
|
89943
89943-33050 Cover, Rain SensorRAIN SENSOR [08.2009 -] ACV40,GSV40 |
89943-33050 |
from US $15.16 |
||
|
89944
|
89944
89944-42010 Tape, Rain Sensor[08.2009 -] ACV40,GSV40 |
89944-42010 |
from US $12.29 |
||
|
9011906864
|
9011906864
90119-06864 BOLT W-WASHER |
90119-06864 |
US $1.43 |
||
|
9017610005
|
9017610005
90176-10005 Nut (For Front Wiper Arm Setting) |
90176-10005 |
from US $1.03 |
