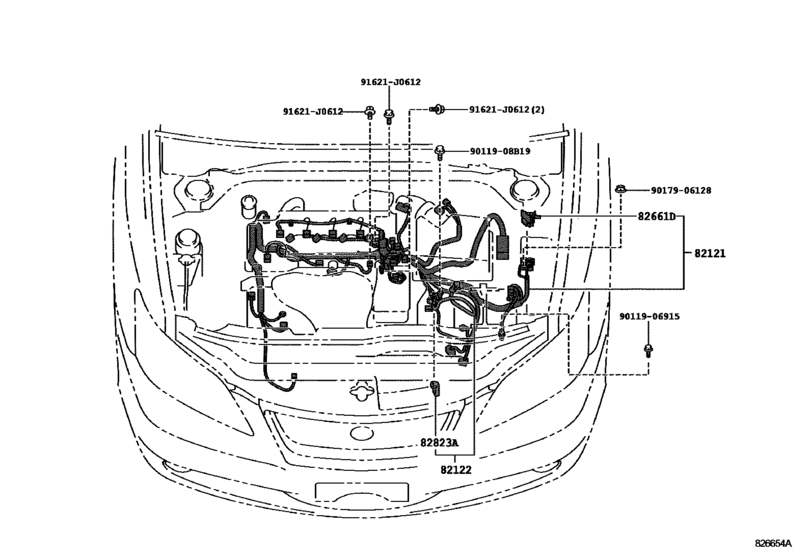

Wiring & Clamp ([08.2009 - ] ENGINE (0908- )ACV40) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-33C50
Wire, Engine
[08.2009 -] ACV40 |
82121-33C50 |
— | ||
|
82122
|
82122
82122-33080 Wire, Engine, No.2[08.2009 -] ACV40,GSV40 |
82122-33080 |
US $101.92 |
||
|
82661D
|
82661D
82661-33010 Cover, Relay Block, Side No.1[08.2009 -] ACV40,GSV40 |
82661-33010 |
US $9.17 |
||
|
82823A
|
82823A
82823-12090 Cap, Terminal, No.1[08.2009 -] ACV40,GSV40 |
82823-12090 |
US $11.15 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
9011908B19
|
9011908B19
90119-08B19 New Genuine Part |
90119-08B19 |
US $1.02 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9017906128
|
9017906128
90179-06128 NUT |
90179-06128 |
US $1.25 |
