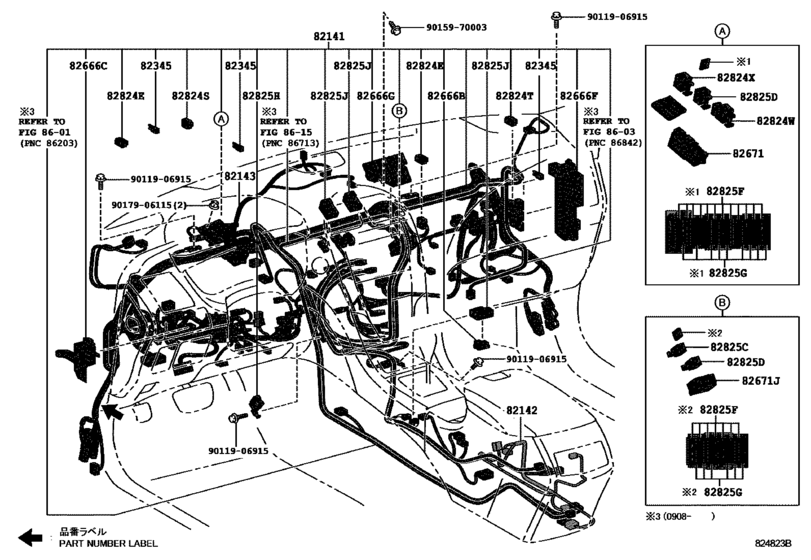

Wiring & Clamp ([05.2006 - ] INSTRUMENT PANEL (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82141
|
82141
82141-33T20
Wire, Instrument Panel
[08.2009 - 08.2010] ACV40;GSV40..GCC; ACV40;GSV40..GCC PART NUMBER LABEL=82141-33T20 |
82141-33T20 |
— | ||
|
82141
|
82141
82141-33T21
Wire, Instrument Panel
[08.2010 -] ACV40;GSV40..GCC; GSV40..CHI TAIWAN SPEC&AUDIO-AM/FM 6CD-CHANGER 8SP; GSV40..CHI AUDIO-AM/FM 6CD-CHANGER 8SP; GSV40..CHI RUSSIA SPEC&AUDIO-6CD-CHANGER BLUETOOTH 8SP; GSV40..CHI PART NUMBER LABEL=82141-33T21; ACV40;GSV40..GCC PART NUMBER LABEL= |
82141-33T21 |
— | ||
|
82141
|
82141
82141-33T31
Wire, Instrument Panel
[08.2010 -] GSV40..CHI TAIWAN SPEC; ACV40 TAIWAN SPEC&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; GSV40..CHI RUSSIA SPEC; GSV40..GCC PART NUMBER LABEL=82141-33T31; GSV40..CHI PART NUMBER LABEL=82141-33T31; ACV40 |
82141-33T31 |
— | ||
|
82141
|
82141
82141-33T41
Wire, Instrument Panel
[08.2010 -] ACV40,GSV40..CHI TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP; GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP; GSV40..CHI RUSSIA SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP; GSV40..GCC PART NUMBER LABEL=82141-33T41; GSV |
82141-33T41 |
— | ||
|
82141
|
82141
82141-33T50
Wire, Instrument Panel
[08.2009 - 08.2010] GSV40..CHI; ACV40 AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; GSV40..CHI PART NUMBER LABEL=82141-33T50; ACV40 PART NUMBER LABEL=82141-33T50 |
82141-33T50 |
— | ||
|
82141
|
82141
82141-33T51
Wire, Instrument Panel
[08.2010 -] GSV40..CHI; ACV40 AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; GSV40..CHI PART NUMBER LABEL=82141-33T51; ACV40 PART NUMBER LABEL=82141-33T51 |
82141-33T51 |
— | ||
|
82141
|
82141
82141-33T60
Wire, Instrument Panel
[08.2009 - 08.2010] ACV40,GSV40..CHI AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP; ACV40,GSV40..CHI PART NUMBER LABEL=82141-33T60 |
82141-33T60 |
— | ||
|
82141
|
82141
82141-33T61
Wire, Instrument Panel
[08.2010 -] ACV40,GSV40..CHI AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP; ACV40,GSV40..CHI PART NUMBER LABEL=82141-33T61 |
82141-33T61 |
— | ||
|
82142
|
82142
82142-33460
Wire, Instrument Panel, No.2
[08.2009 - 06.2012] ACV40,GSV40..CHI; GSV40..GCC AUDIO JACK-MINI JACK & USB |
82142-33460 |
— | ||
|
82143
|
82143
82143-33041
Wire, Instrument Panel, No.3
[08.2009 -] ACV40,GSV40 |
82143-33041 |
— | ||
|
82345
|
82345
82345-32010 Diode[08.2009 -] ACV40,GSV40 |
82345-32010 |
US $12.06 |
||
|
82666B
|
82666B
82666-26080 Holder, Connector No.3[08.2009 -] ACV40,GSV40 |
82666-26080 |
US $1.31 |
||
|
82666C
|
82666C
82666-33300
Holder, Connector No.2
[08.2009 -] ACV40,GSV40 |
82666-33300 |
— | ||
|
82666F
|
82666F
82666-33320
Holder, Connector No.4
[08.2009 -] ACV40,GSV40 |
82666-33320 |
— | ||
|
82666G
|
82666G
82666-42241
Holder, Connector No.5
[08.2009 -] ACV40,GSV40 |
82666-42241 |
— | ||
|
82671
|
82671
82671-33050
Block, Junction
[08.2009 -] ACV40,GSV40 |
82671-33050 |
— | ||
|
82671J
|
82671J
82671-33060
Block, Junction, No.2
[08.2009 -] ACV40,GSV40 |
82671-33060 |
— | ||
|
82824E
|
82824E
82824-12210 Block, Junction[08.2009 -] ACV40,GSV40 |
82824-12210 |
US $35.64 |
||
|
82824S
|
82824S
82824-20110 Connector, Wiring Harness[08.2009 -] ACV40,GSV40 |
82824-20110 |
US $19.42 |
||
|
82824T
|
82824T
82824-30170 Connector, Wiring Harness[08.2009 -] ACV40,GSV40 |
82824-30170 |
US $5.53 |
||
|
82824W
|
82824W
82824-33240 Connector, Wiring Harness[08.2009 -] ACV40,GSV40 |
82824-33240 |
US $43.24 |
||
|
82824X
|
82824X
82824-33250 Connector, Wiring Harness[08.2009 -] ACV40,GSV40 |
82824-33250 |
US $35.12 |
||
|
82825C
|
82825C
82824-42180 Connector, Wiring Harness[08.2009 -] ACV40,GSV40 |
82824-42180 |
US $20.24 |
||
|
82825D
|
82825D
82824-42190 Connector, Wiring Harness[08.2009 -] ACV40,GSV40 |
82824-42190 |
US $20.24 |
||
|
82825F
|
82825F
82824-42200 Connector, Wiring Harness[08.2009 -] ACV40,GSV40 |
82824-42200 |
US $3.20 |
||
|
82825G
|
82825G
82824-42210 Connector, Wiring Harness[08.2009 -] ACV40,GSV40 |
82824-42210 |
US $3.20 |
||
|
82825H
|
82825H
82824-48070 Connector, Wiring Harness[08.2009 -] ACV40,GSV40 |
82824-48070 |
US $27.66 |
||
|
82825J
|
82825J
82824-48080 Connector, Wiring Harness[08.2009 -] ACV40,GSV40 |
82824-48080 |
US $17.38 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
