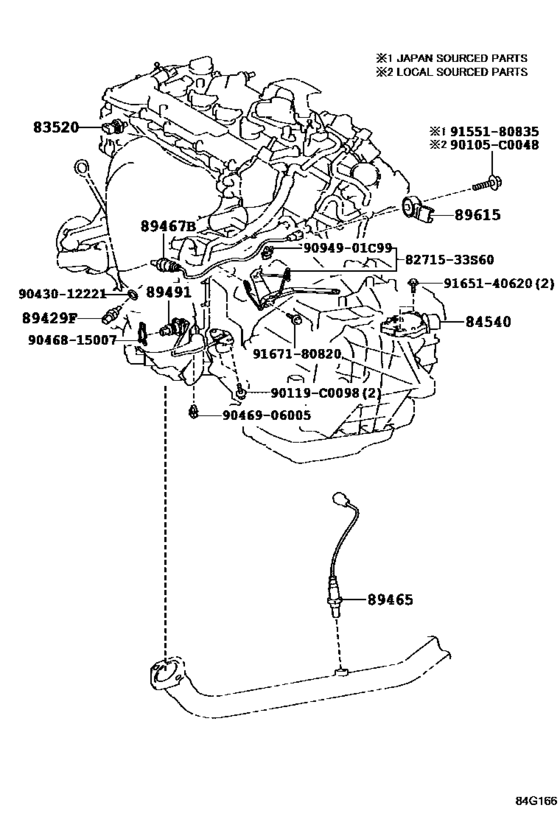

Switch & Relay & Computer ([07.2015 - ] ENGINE & TRANSMISSION (1507- )ASV61) Diagram Toyota LEXUS ES
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- ASV61
- body
- SED
- ENGINE
- 6ARFSE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- ES250
- From
- 07.2015
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- ES250
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83520
|
83520
83520-60060 Gage Assy, Oil Pressure Sender[07.2015 -] ASV61 |
83520-60060 |
from US $37.54 |
||
|
84540
|
84540
84540-33010 Switch Assy, Neutral Start[07.2015 -] ASV6#,GSV60 |
84540-33010 |
from US $112.48 |
||
|
89429F
|
89429F
89429-12010 Sensor, Temperature[07.2015 -] ASV61 |
89429-12010 |
from US $51.38 |
||
|
89465
|
89465
89465-33560 Sensor, Oxygen[07.2015 -] ASV6# |
89465-33560 |
from US $127.28 |
||
|
89467B
|
89467B
89467-06220
Sensor, Air Fuel Ratio
[07.2015 -] ASV61 |
89467-06220 |
— | ||
|
89491
|
89491
89491-33040
Sensor, Engine Oil Level
[07.2015 -] ASV61 |
89491-33040 |
— | ||
|
89615
|
89615
89615-20090 Sensor, Knock Control[07.2015 -] ASV6#,AVV60 |
89615-20090 |
from US $36.02 |
||
|
90105C0048
|
90105C0048
90105-C0048
New Genuine Part
|
90105-C0048 |
— | ||
|
90119C0098
|
90119C0098
90119-C0098
New Genuine Part
|
90119-C0098 |
— | ||
|
8271533S60
|
8271533S60
82715-33S60
Bracket,wiring Harness Clamp
|
82715-33S60 |
— | ||
|
9094901C99
|
9094901C99
90949-01C99 Clip, Radiator Hose, No.5 |
90949-01C99 |
US $1.31 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.13 |
||
|
9046815007
|
9046815007
90468-15007 New Genuine Part |
90468-15007 |
US $1.28 |
||
|
9046906005
|
9046906005
90469-06005 Clamp(For Hood Lock Control Cable) |
90469-06005 |
from US $1.28 |
||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.86 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.88 |
