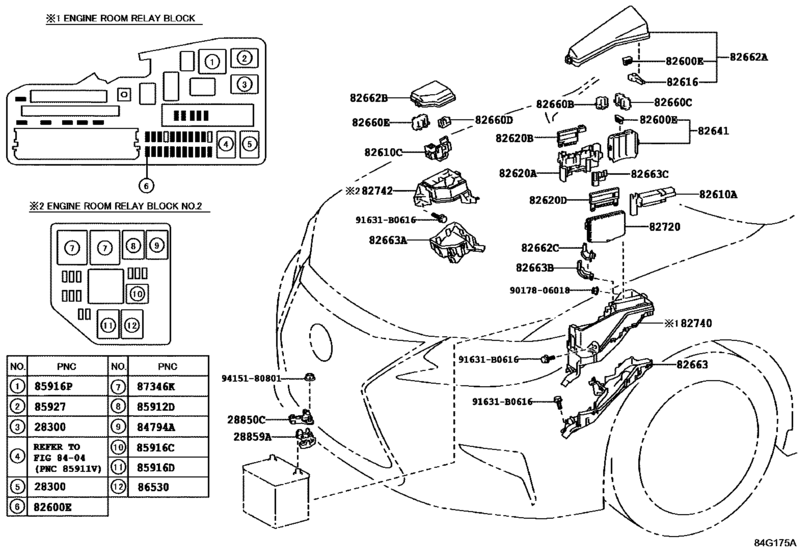

Switch & Relay & Computer ([07.2015 - ] ENGINE ROOM (1507- )ASV61) Diagram Toyota LEXUS ES
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- ASV61
- body
- SED
- ENGINE
- 6ARFSE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- ES250
- From
- 07.2015
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- ES250
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-21020 Relay Assy, Starter[07.2015 -] 6ARFSE..ASV61 |
28300-21020 |
from US $40.58 |
||
|
28850C
|
28850C
28850-36030 Sensor Assy, Battery State[07.2015 -] 6ARFSE..ASV61 |
28850-36030 |
from US $104.34 |
||
|
28859A
|
28859A
28859-36030
Holder, Battery Current Sensor
[07.2015 -] 6ARFSE..ASV61 |
28859-36030 |
— | ||
|
82600E
|
82600E
90982-09019 Instrument Panel Fuse[07.2015 -] ASV6#,AVV60,GSV60 5A,MINI FUSE |
90982-09019 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09020 Fusible Link[07.2015 -] ASV6#,AVV60,GSV60 7.5A,MINI FUSE |
90982-09020 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09021 Fusible Link[07.2015 -] ASV6#,AVV60,GSV60 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09022 Instrument Panel Fuse[07.2015 -] ASV6#,AVV60,GSV60 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09023 Instrument Panel Fuse[07.2015 -] ASV6#,AVV60,GSV60 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09024 Instrument Panel Fuse[07.2015 -] ASV6#,AVV60,GSV60 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09025 Instrument Panel Fuse[07.2015 -] ASV6#,AVV60,GSV60 30A,MINI FUSE |
90982-09025 |
from US $0.88 |
||
|
82610A
|
82610A
82610-33090 Block Assy, Fuse[07.2015 -] ASV6#,AVV60,GSV60 |
82610-33090 |
US $20.53 |
||
|
82610C
|
82610C
82610-33100 Block Assy, Fuse[07.2015 -] ASV6#,AVV60,GSV60 |
82610-33100 |
US $23.73 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[07.2015 -] ASV6#,AVV60,GSV60 |
82616-58010 |
from US $2.40 |
||
|
82620A
|
82620A
82620-33050 Block Assy, Fusible Link[07.2015 -] ASV6#,AVV60,GSV60 |
82620-33050 |
US $52.85 |
||
|
82620B
|
82620B
82620-33070 Block Assy, Fusible Link[07.2015 -] ASV6#,AVV60,GSV60 |
82620-33070 |
from US $11.17 |
||
|
82620D
|
82620D
82620-28260 Block Assy, Fusible Link[07.2015 -] ASV61 |
82620-28260 |
US $12.25 |
||
|
82641
|
82641
82641-33180 Relay, Integration No.1[07.2015 -] ASV61,AVV60 |
82641-33180 |
from US $107.74 |
||
|
82660B
|
82660B
82660-48030 Block Assy, RelayRELAY [07.2015 -] ASV6#,AVV60,GSV60 |
82660-48030 |
from US $5.82 |
||
|
82660C
|
82660C
82660-33030
Block Assy, Relay
[07.2015 -] ASV6# |
82660-33030 |
— | ||
|
82660D
|
82660D
82660-48020 Block Assy, Relay, Engine RoomRELAY [07.2015 -] ASV61 |
82660-48020 |
from US $7.68 |
||
|
82660E
|
82660E
82660-33040 Block Assy, Relay[07.2015 -] ASV61 |
82660-33040 |
from US $13.98 |
||
|
82662A
|
82662A
82662-33A20
Cover, Relay Block, Upper, No.1
[07.2015 -] ASV61 |
82662-33A20 |
— | ||
|
82662B
|
82662B
82662-33A30
Cover, Relay Block, Upper, No.2
[07.2015 -] ASV61 |
82662-33A30 |
— | ||
|
82662C
|
82662C
82662-33450
Cover, Relay Block, Upper, No.2
[07.2015 -] ASV61 |
82662-33450 |
— | ||
|
82663
|
82663
82663-33130
Cover, Relay Block, Lower
[07.2015 -] ASV61 |
82663-33130 |
— | ||
|
82663A
|
82663A
82663-33200
Cover, Relay Block, Lower, No.2
[07.2015 -] ASV6#,GSV60 |
82663-33200 |
— | ||
|
82663B
|
82663B
82663-33190
Cover, Relay Block, Lower, No.2
[07.2015 -] ASV61 |
82663-33190 |
— | ||
|
82663C
|
82663C
82663-33170 Cover, Relay Block, Lower, No.3[07.2015 -] ASV6#,AVV60,GSV60 |
82663-33170 |
from US $2.62 |
||
|
82720
|
82720
82720-33411 Block Assy, Engine Room Junction[07.2015 -] ASV6#..ARL,CHI,GEN |
82720-33411 |
US $203.58 |
||
|
82740
|
82740
82740-33070
Block Assy, Engine Room Relay
[07.2015 -] ASV61 |
82740-33070 |
— | ||
|
82742
|
82742
82742-33030
Block, Engine Room Relay, No.2
[07.2015 -] ASV61,AVV60 |
82742-33030 |
— | ||
|
84794A
|
84794A
90987-02027 Relay[07.2015 -] ASV6#,GSV60..LHD INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT) |
90987-02027 |
from US $33.62 |
||
|
85912D
|
85912D
90987-02027 Relay[07.2015 -] ASV6#..ARL,CHI,GCC;AVV60,GSV60..GCC,GEN PRE-COLLISION SYSTEM-WITH |
90987-02027 |
from US $33.62 |
||
|
85916C
|
85916C
90987-02027 Relay[07.2015 -] ASV6#,GSV60 |
90987-02027 |
from US $33.62 |
||
|
85916D
|
85916D
90987-02027 Relay[07.2015 -] ASV61 |
90987-02027 |
from US $33.62 |
||
|
85916P
|
85916P
90987-02025 Relay[07.2015 -] ASV6#,AVV60,GSV60 |
90987-02025 |
from US $44.54 |
||
|
85927
|
85927
90987-04004 Relay, Starter Cut[07.2015 -] ASV6# |
90987-04004 |
US $42.71 |
||
|
86530
|
86530
90987-02027 Relay[07.2015 -] ASV6#,AVV60,GSV60 |
90987-02027 |
from US $33.62 |
||
|
87346K
|
87346K
90987-02025 Relay[07.2015 -] ASV61,AVV60 |
90987-02025 |
from US $44.54 |
||
|
91631B0616
|
91631B0616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.70 |
||
|
9017806018
|
9017806018
90178-06018 NUT,FLANGE |
90178-06018 |
from US $0.74 |
||
|
9415180801
|
9415180801
94151-80801 NUT FLANGE |
94151-80801 |
from US $0.80 |
