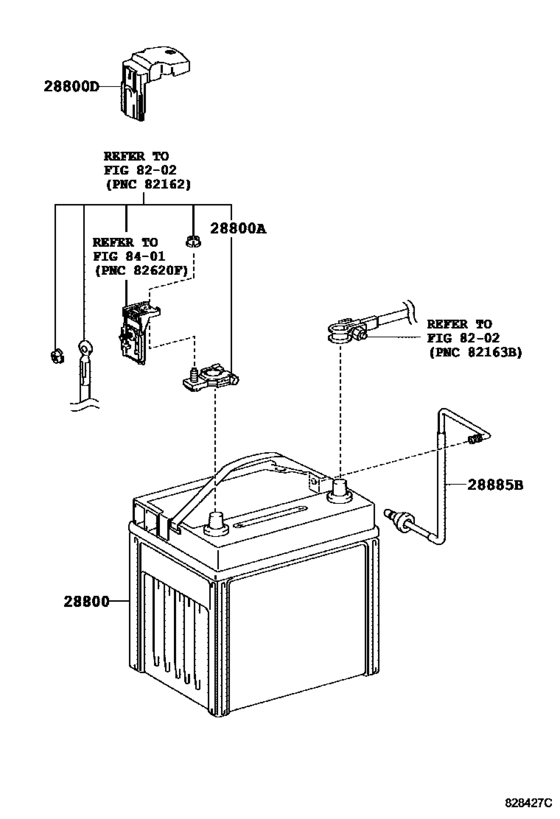

Battery & Battery Cable ([06.2012 - ] 12V BATTERY (1206- )AVV60) Diagram Toyota LEXUS ES
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- AVV60
- body
- SED
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- Model
- ES300 Hybrid
- From
- 06.2012
- No.of Doors
- 4D
- Vehicle Model
- ES300 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28800
|
28800
28800-36050
Battery
[06.2012 - 07.2015] 2ARFXE..AVV60 S65D26R |
28800-36050 |
— | ||
|
28800A
|
28800A
90982-05061 Terminal, Battery Positive[06.2012 - 07.2015] 2ARFXE..AVV60 |
90982-05061 |
from US $15.23 |
||
|
28800D
|
28800D
82821-47110 Cover, Connector(For Battery Terminal)CONNECTOR [06.2012 - 07.2015] 2ARFXE..AVV60 |
82821-47110 |
US $9.50 |
||
|
28885B
|
28885B
28885-36020
Hose, Battery
[06.2012 - 07.2015] 2ARFXE..AVV60 |
28885-36020 |
— |
