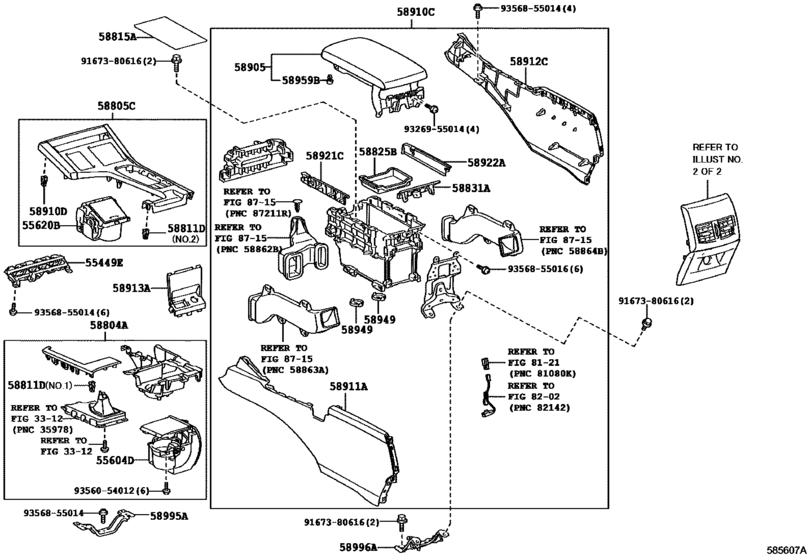

Console Box & Bracket ([07.2015 - ] (1507- )) Diagram Toyota LEXUS ES
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- AVV60
- body
- SED
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- Model
- ES300 Hybrid
- From
- 06.2012
- No.of Doors
- 4D
- Vehicle Model
- ES300 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55449E
|
55449E
55618-33040
Base, Switch
[06.2012 - 08.2013] AVV60,GSV60 STEERING WHEEL-3-SPOKE,LEATHER & WOOD, WITH(HEATER)&SUN SHADE-WITH(BACK WINDOW)&SE AT HEATER-WITH(HEATER (DRIVER & PASSENGER)); AVV60,GSV60 STEERING WHEEL-3-SPOKE,LEATHER & WOOD, WITH(HEATER)&SUN SHADE-WITH(BACK WINDOW & R |
55618-33040 |
— | ||
|
55449E
|
55449E
55618-33050
Base, Switch
[06.2012 - 08.2013] AVV60,GSV60 STEERING WHEEL-3-SPOKE,LEATHER & WOOD, WITH(HEATER)&SEAT HEATER-WITH(HEATER (DRIVE R & PASSENGER)); AVV60 STEERING WHEEL-3-SPOKE,LETHER & BAMBOO WITH(HEATER)&SEAT HEATER-WITH(HEATER (DRIVE R & PASSENGER)); AVV60,GSV60 SUN S |
55618-33050 |
— | ||
|
55449E
|
55449E
55618-33060
Base, Switch
[06.2012 - 08.2013] AVV60,GSV60 SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER)) |
55618-33060 |
— | ||
|
55449E
|
55449E
55618-33070
Base, Switch
[06.2012 - 07.2015] AVV60,GSV60 |
55618-33070 |
— | ||
|
55449E
|
55449E
55618-33130
Base, Switch
[08.2013 - 07.2015] AVV60,GSV60 SUN SHADE-WITH(BACK WINDOW); AVV60,GSV60 SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW) |
55618-33130 |
— | ||
|
55604D
|
55604D
55604-33050
Holder Sub-Assy, Instrument Panel Cup
[06.2012 - 07.2015] AVV60,GSV60 |
55604-33050 |
— | ||
|
55604D
|
55604D
55604-33080
Holder Sub-Assy, Instrument Panel Cup
[06.2012 - 08.2013] AVV60,GSV60 C PACKAGE&CUP HOLDER(CENTER CONSOLE)-WOOD(BAMBOO); AVV60,GSV60 D PACKAGE&CUP HOLDER(CENTER CONSOLE)-WOOD(BAMBOO); AVV60,GSV60 B PACKAGE&CUP HOLDER(CENTER CONSOLE)-WOOD(BAMBOO) |
55604-33080 |
— | ||
|
55604D
|
55604D
55604-33090
Holder Sub-Assy, Instrument Panel Cup
[06.2012 - 08.2013] AVV60,GSV60 C PACKAGE&CUP HOLDER(CENTER CONSOLE)-WOOD(BIRDS EYE MAPLE); AVV60,GSV60 D PACKAGE&CUP HOLDER(CENTER CONSOLE)-WOOD(BIRDS EYE MAPLE); AVV60,GSV60 B PACKAGE&CUP HOLDER(CENTER CONSOLE)-WOOD(BIRDS EYE MAPLE) |
55604-33090 |
— | ||
|
55604D
|
55604D
55604-33120-C0
Holder Sub-Assy, Instrument Panel Cup
[07.2015 -] AVV60 BLACK METALLIC,TRIM0#,1#,2#,5# |
55604-33120-C0 |
— | ||
|
55604D
|
55604D
55604-33130-E1
Holder Sub-Assy, Instrument Panel Cup
[07.2015 -] AVV60,GSV60 CONSOLE BOX ORNAMENT-WOOD,BROWN(BAMBOO),TRIM02,12,22,52 |
55604-33130-E1 |
— | ||
|
55604D
|
55604D
55604-33130-E3
Holder Sub-Assy, Instrument Panel Cup
[07.2015 -] AVV60 CONSOLE BOX ORNAMENT-WOOD,DK.BROWN(EBONY),TRIM03,13,23,53 |
55604-33130-E3 |
— | ||
|
55604D
|
55604D
55604-33130-E4
Holder Sub-Assy, Instrument Panel Cup
[07.2015 -] AVV60,GSV60 CONSOLE BOX ORNAMENT-WOOD,DK.BROWN(WOOD),TRIM01,11,21,51 |
55604-33130-E4 |
— | ||
|
55620B
|
55620B
55620-33160-A0
Holder, Instrument Panel Cup
[06.2012 - 07.2015] AVV60,GSV60 ECRU,TRIM00 |
55620-33160-A0 |
— | ||
|
55620B
|
55620B
55620-33160-A1 Holder, Instrument Panel Cup[06.2012 - 07.2015] AVV60,GSV60 IVORY,TRIM01 |
55620-33160-A1 |
US $100.60 |
||
|
55620B
|
55620B
55620-33160-C0
Holder, Instrument Panel Cup
[06.2012 - 07.2015] GSV60 BLACK,TRIM1#,2#,3#; AVV60 BLACK,TRIM1#,2# |
55620-33160-C0 |
— | ||
|
55620B
|
55620B
55620-33160-F0
Holder, Instrument Panel Cup
[07.2015 -] AVV60 TOPAZ BROWN,TRIM5# |
55620-33160-F0 |
— | ||
|
58804A
|
58804A
58804-33730
Panel Sub-Assy, Console, Upper
[06.2012 - 04.2014] AVV60,GSV60 |
58804-33730 |
— | ||
| replacement | |||||
|
58804A
|
58804A
58804-33732
Panel Sub-Assy, Console, Upper
[06.2012 - 04.2014] AVV60,GSV60 |
58804-33732 |
— | ||
|
58804A
|
58804A
58804-33731
Panel Sub-Assy, Console, Upper
[05.2014 - 01.2015] AVV60,GSV60 |
58804-33731 |
— | ||
| replacement | |||||
|
58804A
|
58804A
58804-33732
Panel Sub-Assy, Console, Upper
[05.2014 - 01.2015] AVV60,GSV60 |
58804-33732 |
— | ||
|
58804A
|
58804A
58804-33732
Panel Sub-Assy, Console, Upper
[02.2015 - 07.2015] AVV60,GSV60 |
58804-33732 |
— | ||
|
58804A
|
58804A
58804-33740
Panel Sub-Assy, Console, Upper
[06.2012 - 08.2013] AVV60,GSV60 C PACKAGE&CUP HOLDER(CENTER CONSOLE)-WOOD(BAMBOO); AVV60,GSV60 D PACKAGE&CUP HOLDER(CENTER CONSOLE)-WOOD(BAMBOO); AVV60,GSV60 B PACKAGE&CUP HOLDER(CENTER CONSOLE)-WOOD(BAMBOO) |
58804-33740 |
— | ||
| replacement | |||||
|
58804A
|
58804A
58804-33742
Panel Sub-Assy, Console, Upper
[06.2012 - 08.2013] AVV60,GSV60 C PACKAGE&CUP HOLDER(CENTER CONSOLE)-WOOD(BAMBOO); AVV60,GSV60 D PACKAGE&CUP HOLDER(CENTER CONSOLE)-WOOD(BAMBOO); AVV60,GSV60 B PACKAGE&CUP HOLDER(CENTER CONSOLE)-WOOD(BAMBOO) |
58804-33742 |
— | ||
|
58804A
|
58804A
58804-33741
Panel Sub-Assy, Console, Upper
[05.2014 - 01.2015] AVV60 CUP HOLDER(CENTER CONSOLE)-WOOD(BAMBOO) |
58804-33741 |
— | ||
| replacement | |||||
|
58804A
|
58804A
58804-33742
Panel Sub-Assy, Console, Upper
[05.2014 - 01.2015] AVV60 CUP HOLDER(CENTER CONSOLE)-WOOD(BAMBOO) |
58804-33742 |
— | ||
|
58804A
|
58804A
58804-33742
Panel Sub-Assy, Console, Upper
[02.2015 - 07.2015] AVV60,GSV60 CUP HOLDER(CENTER CONSOLE)-WOOD(BAMBOO) |
58804-33742 |
— | ||
|
58804A
|
58804A
58804-33750
Panel Sub-Assy, Console, Upper
[06.2012 - 08.2013] AVV60,GSV60 C PACKAGE&CUP HOLDER(CENTER CONSOLE)-WOOD(BIRDS EYE MAPLE); AVV60,GSV60 D PACKAGE&CUP HOLDER(CENTER CONSOLE)-WOOD(BIRDS EYE MAPLE); AVV60,GSV60 B PACKAGE&CUP HOLDER(CENTER CONSOLE)-WOOD(BIRDS EYE MAPLE) |
58804-33750 |
— | ||
| replacement | |||||
|
58804A
|
58804A
58804-33752
Panel Sub-Assy, Console, Upper
[06.2012 - 08.2013] AVV60,GSV60 C PACKAGE&CUP HOLDER(CENTER CONSOLE)-WOOD(BIRDS EYE MAPLE); AVV60,GSV60 D PACKAGE&CUP HOLDER(CENTER CONSOLE)-WOOD(BIRDS EYE MAPLE); AVV60,GSV60 B PACKAGE&CUP HOLDER(CENTER CONSOLE)-WOOD(BIRDS EYE MAPLE) |
58804-33752 |
— | ||
|
58804A
|
58804A
58804-33751
Panel Sub-Assy, Console, Upper
[05.2014 - 01.2015] AVV60 CUP HOLDER(CENTER CONSOLE)-WOOD(BIRDS EYE MAPLE) |
58804-33751 |
— | ||
| replacement | |||||
|
58804A
|
58804A
58804-33752
Panel Sub-Assy, Console, Upper
[05.2014 - 01.2015] AVV60 CUP HOLDER(CENTER CONSOLE)-WOOD(BIRDS EYE MAPLE) |
58804-33752 |
— | ||
|
58804A
|
58804A
58804-33752
Panel Sub-Assy, Console, Upper
[02.2015 - 07.2015] AVV60,GSV60 CUP HOLDER(CENTER CONSOLE)-WOOD(BIRDS EYE MAPLE) |
58804-33752 |
— | ||
|
58804A
|
58804A
58804-33890-C2
Panel Sub-Assy, Console, Upper
[07.2015 - 02.2016] AVV60 BK METALLIC/NOBLE BROWN,TRIM0#,5# |
58804-33890-C2 |
— | ||
| replacement | |||||
|
58804A
|
58804A
58804-33891-C2
Panel Sub-Assy, Console, Upper
[07.2015 - 02.2016] AVV60 BK METALLIC/NOBLE BROWN,TRIM0#,5# |
58804-33891-C2 |
— | ||
|
58804A
|
58804A
58804-33890-C3
Panel Sub-Assy, Console, Upper
[07.2015 - 02.2016] AVV60 BK METALLIC/BLACK,TRIM1#,2# |
58804-33890-C3 |
— | ||
| replacement | |||||
|
58804A
|
58804A
58804-33891-C3
Panel Sub-Assy, Console, Upper
[07.2015 - 02.2016] AVV60 BK METALLIC/BLACK,TRIM1#,2# |
58804-33891-C3 |
— | ||
|
58804A
|
58804A
58804-33891-C2
Panel Sub-Assy, Console, Upper
[03.2016 -] AVV60 BK METALLIC/NOBLE BROWN,TRIM0#,5# |
58804-33891-C2 |
— | ||
|
58804A
|
58804A
58804-33891-C3
Panel Sub-Assy, Console, Upper
[03.2016 -] AVV60 BK METALLIC/BLACK,TRIM1#,2# |
58804-33891-C3 |
— | ||
|
58804A
|
58804A
58804-33A00-E5
Panel Sub-Assy, Console, Upper
[07.2015 - 02.2016] AVV60 CONSOLE BOX ORNAMENT-WOOD,DK.BRO(EBONY)/NOBLE BROWN,TRIM03,53 |
58804-33A00-E5 |
— | ||
| replacement | |||||
|
58804A
|
58804A
58804-33A01-E5
Panel Sub-Assy, Console, Upper
[07.2015 - 02.2016] AVV60 CONSOLE BOX ORNAMENT-WOOD,DK.BRO(EBONY)/NOBLE BROWN,TRIM03,53 |
58804-33A01-E5 |
— | ||
|
58804A
|
58804A
58804-33A00-E7
Panel Sub-Assy, Console, Upper
[07.2015 - 02.2016] AVV60 CONSOLE BOX ORNAMENT-WOOD,BROWN(BAMBOO)/NOBLE BROWN,TRIM02,52 |
58804-33A00-E7 |
— | ||
| replacement | |||||
|
58804A
|
58804A
58804-33A01-E7
Panel Sub-Assy, Console, Upper
[07.2015 - 02.2016] AVV60 CONSOLE BOX ORNAMENT-WOOD,BROWN(BAMBOO)/NOBLE BROWN,TRIM02,52 |
58804-33A01-E7 |
— | ||
|
58804A
|
58804A
58804-33A00-L0
Panel Sub-Assy, Console, Upper
[07.2015 - 02.2016] AVV60 CONSOLE BOX ORNAMENT-WOOD,DK.BROWN(WOOD)/BLACK,TRIM11,21 |
58804-33A00-L0 |
— | ||
| replacement | |||||
|
58804A
|
58804A
58804-33A01-L0
Panel Sub-Assy, Console, Upper
[07.2015 - 02.2016] AVV60 CONSOLE BOX ORNAMENT-WOOD,DK.BROWN(WOOD)/BLACK,TRIM11,21 |
58804-33A01-L0 |
— | ||
|
58804A
|
58804A
58804-33A00-L1
Panel Sub-Assy, Console, Upper
[07.2015 - 02.2016] AVV60 CONSOLE BOX ORNAMENT-WOOD,DK.BRO(WOOD)/NOBLE BROWN,TRIM01,51 |
58804-33A00-L1 |
— | ||
| replacement | |||||
|
58804A
|
58804A
58804-33A01-L1
Panel Sub-Assy, Console, Upper
[07.2015 - 02.2016] AVV60 CONSOLE BOX ORNAMENT-WOOD,DK.BRO(WOOD)/NOBLE BROWN,TRIM01,51 |
58804-33A01-L1 |
— | ||
|
58804A
|
58804A
58804-33A00-L2
Panel Sub-Assy, Console, Upper
[07.2015 - 02.2016] AVV60 CONSOLE BOX ORNAMENT-WOOD,DK.BROWN(EBONY)/BLACK,TRIM13,23 |
58804-33A00-L2 |
— | ||
| replacement | |||||
|
58804A
|
58804A
58804-33A01-L2
Panel Sub-Assy, Console, Upper
[07.2015 - 02.2016] AVV60 CONSOLE BOX ORNAMENT-WOOD,DK.BROWN(EBONY)/BLACK,TRIM13,23 |
58804-33A01-L2 |
— | ||
|
58804A
|
58804A
58804-33A00-L3
Panel Sub-Assy, Console, Upper
[07.2015 - 02.2016] AVV60 CONSOLE BOX ORNAMENT-WOOD,BROWN(BAMBOO)/BLACK,TRIM12,22 |
58804-33A00-L3 |
— | ||
| replacement | |||||
|
58804A
|
58804A
58804-33A01-L3
Panel Sub-Assy, Console, Upper
[07.2015 - 02.2016] AVV60 CONSOLE BOX ORNAMENT-WOOD,BROWN(BAMBOO)/BLACK,TRIM12,22 |
58804-33A01-L3 |
— | ||
|
58804A
|
58804A
58804-33A01-E5
Panel Sub-Assy, Console, Upper
[03.2016 -] AVV60 CONSOLE BOX ORNAMENT-WOOD,DK.BRO(EBONY)/NOBLE BROWN,TRIM03,53 |
58804-33A01-E5 |
— | ||
|
58804A
|
58804A
58804-33A01-E7
Panel Sub-Assy, Console, Upper
[03.2016 -] AVV60 CONSOLE BOX ORNAMENT-WOOD,BROWN(BAMBOO)/NOBLE BROWN,TRIM02,52 |
58804-33A01-E7 |
— | ||
|
58804A
|
58804A
58804-33A01-L0
Panel Sub-Assy, Console, Upper
[03.2016 -] AVV60 CONSOLE BOX ORNAMENT-WOOD,DK.BROWN(WOOD)/BLACK,TRIM11,21 |
58804-33A01-L0 |
— | ||
|
58804A
|
58804A
58804-33A01-L1
Panel Sub-Assy, Console, Upper
[03.2016 -] AVV60 CONSOLE BOX ORNAMENT-WOOD,DK.BRO(WOOD)/NOBLE BROWN,TRIM01,51 |
58804-33A01-L1 |
— | ||
|
58804A
|
58804A
58804-33A01-L2
Panel Sub-Assy, Console, Upper
[03.2016 -] AVV60 CONSOLE BOX ORNAMENT-WOOD,DK.BROWN(EBONY)/BLACK,TRIM13,23 |
58804-33A01-L2 |
— | ||
|
58804A
|
58804A
58804-33A01-L3
Panel Sub-Assy, Console, Upper
[03.2016 -] AVV60 CONSOLE BOX ORNAMENT-WOOD,BROWN(BAMBOO)/BLACK,TRIM12,22 |
58804-33A01-L3 |
— | ||
|
58805C
|
58805C
58805-33240-A0
Panel Sub-Assy, Console, Upper Rear
[06.2012 - 07.2015] AVV60,GSV60 ECRU,TRIM00 |
58805-33240-A0 |
— | ||
|
58805C
|
58805C
58805-33240-A1 Panel Sub-Assy, Console, Upper Rear[06.2012 - 07.2015] AVV60,GSV60 IVORY,TRIM01 |
58805-33240-A1 |
US $311.47 |
||
|
58805C
|
58805C
58805-33240-C0 Panel Sub-Assy, Console, Upper Rear[06.2012 - 07.2015] GSV60 BLACK,TRIM1#,2#,3#; AVV60 BLACK,TRIM1#,2# |
58805-33240-C0 |
US $176.18 |
||
|
58805C
|
58805C
58805-33260-A2
Panel Sub-Assy, Console, Upper Rear
[07.2015 - 02.2016] AVV60,GSV60 IVORY,TRIM0# |
58805-33260-A2 |
— | ||
| replacement | |||||
|
58805C
|
58805C
58805-33261-A2
Panel Sub-Assy, Console, Upper Rear
[07.2015 - 02.2016] AVV60,GSV60 IVORY,TRIM0# |
58805-33261-A2 |
— | ||
|
58805C
|
58805C
58805-33260-C7
Panel Sub-Assy, Console, Upper Rear
[07.2015 - 02.2016] AVV60,GSV60 BLACK,TRIM1#,2# |
58805-33260-C7 |
— | ||
| replacement | |||||
|
58805C
|
58805C
58805-33261-C7
Panel Sub-Assy, Console, Upper Rear
[07.2015 - 02.2016] AVV60,GSV60 BLACK,TRIM1#,2# |
58805-33261-C7 |
— | ||
|
58805C
|
58805C
58805-33260-F2
Panel Sub-Assy, Console, Upper Rear
[07.2015 - 02.2016] AVV60,GSV60 TOPAZ BROWN,TRIM5# |
58805-33260-F2 |
— | ||
| replacement | |||||
|
58805C
|
58805C
58805-33261-F2 Panel Sub-Assy, Console, Upper Rear[07.2015 - 02.2016] AVV60,GSV60 TOPAZ BROWN,TRIM5# |
58805-33261-F2 |
US $436.84 |
||
|
58805C
|
58805C
58805-33261-A2
Panel Sub-Assy, Console, Upper Rear
[03.2016 -] AVV60,GSV60 IVORY,TRIM0# |
58805-33261-A2 |
— | ||
|
58805C
|
58805C
58805-33261-C7
Panel Sub-Assy, Console, Upper Rear
[03.2016 -] GSV60 BLACK,TRIM1#,2#,40; AVV60 BLACK,TRIM1#,2# |
58805-33261-C7 |
— | ||
|
58805C
|
58805C
58805-33261-F2 Panel Sub-Assy, Console, Upper Rear[03.2016 -] GSV60 TOPAZ BROWN,TRIM41,5#; AVV60 TOPAZ BROWN,TRIM5# |
58805-33261-F2 |
US $436.84 |
||
|
58811D
|
58811D
90467-10203 Direct[06.2012 - 07.2015] AVV60,GSV60 NO.1:REFER ILLUST. |
90467-10203 |
from US $0.64 |
||
|
58811D
|
58811D
90467-12080 Clip(For Panel, Instrument Cluster Finish)[10.2012 - 07.2015] AVV60,GSV60 NO.2:REFER ILLUST. |
90467-12080 |
from US $0.76 |
||
|
58815A
|
58815A
58815-33160
Carpet, Console Box
[06.2012 - 07.2015] AVV60,GSV60 |
58815-33160 |
— | ||
|
58825B
|
58825B
58825-33040
Pocket, Console Box
[06.2012 - 07.2015] AVV60,GSV60 |
58825-33040 |
— | ||
|
58831A
|
58831A
58831-33150
Garnish, Console Upper Panel, Front
[06.2012 - 07.2015] AVV60,GSV60 |
58831-33150 |
— | ||
|
58905
|
58905
58905-33470-A2
Door Sub-Assy, Console Compartment
[06.2012 - 08.2013] AVV60,GSV60 D PACKAGE,IVORY,TRIM0# |
58905-33470-A2 |
— | ||
|
58905
|
58905
58905-33470-C1
Door Sub-Assy, Console Compartment
[06.2012 - 08.2013] AVV60,GSV60 D PACKAGE,BLACK,TRIM1#,2# |
58905-33470-C1 |
— | ||
|
58905
|
58905
58905-33480-A2
Door Sub-Assy, Console Compartment
[06.2012 - 07.2015] AVV60,GSV60 IVORY,TRIM0# |
58905-33480-A2 |
— | ||
|
58905
|
58905
58905-33480-B0
Door Sub-Assy, Console Compartment
[07.2015 -] AVV60,GSV60 MOON STONE,TRIM1# |
58905-33480-B0 |
— | ||
|
58905
|
58905
58905-33480-C1
Door Sub-Assy, Console Compartment
[06.2012 - 07.2015] AVV60,GSV60 BLACK,TRIM1#,2# |
58905-33480-C1 |
— | ||
|
58905
|
58905
58905-33480-F1
Door Sub-Assy, Console Compartment
[07.2015 -] AVV60 TOPAZ BROWN,TRIM5# |
58905-33480-F1 |
— | ||
|
58910C
|
58910C
58910-33450-A1
Box Assy, Console, Rear
[06.2012 - 08.2013] AVV60,GSV60 D PACKAGE,IVORY,TRIM0# |
58910-33450-A1 |
— | ||
|
58910C
|
58910C
58910-33450-C1
Box Assy, Console, Rear
[06.2012 - 08.2013] AVV60,GSV60 D PACKAGE,BLACK,TRIM1#,2# |
58910-33450-C1 |
— | ||
|
58910C
|
58910C
58910-33460-A1
Box Assy, Console, Rear
[06.2012 - 02.2014] AVV60,GSV60 IVORY,TRIM0# |
58910-33460-A1 |
— | ||
| replacement | |||||
|
58910C
|
58910C
58910-33462-A1
Box Assy, Console, Rear
[06.2012 - 02.2014] AVV60,GSV60 IVORY,TRIM0# |
58910-33462-A1 |
— | ||
|
58910C
|
58910C
58910-33460-C1
Box Assy, Console, Rear
[06.2012 - 02.2014] AVV60,GSV60 BLACK,TRIM1#,2# |
58910-33460-C1 |
— | ||
| replacement | |||||
|
58910C
|
58910C
58910-33462-C5
Box Assy, Console, Rear
[06.2012 - 02.2014] AVV60,GSV60 BLACK,TRIM1#,2# |
58910-33462-C5 |
— | ||
|
58910C
|
58910C
58910-33461-A1
Box Assy, Console, Rear
[03.2014 - 07.2015] AVV60,GSV60 IVORY,TRIM0# |
58910-33461-A1 |
— | ||
| replacement | |||||
|
58910C
|
58910C
58910-33462-A1
Box Assy, Console, Rear
[03.2014 - 07.2015] AVV60,GSV60 IVORY,TRIM0# |
58910-33462-A1 |
— | ||
|
58910C
|
58910C
58910-33461-A2
Box Assy, Console, Rear
[07.2015 - 02.2016] AVV60,GSV60 IVORY/LT.BROWN,TRIM0# |
58910-33461-A2 |
— | ||
| replacement | |||||
|
58910C
|
58910C
58910-33462-A2
Box Assy, Console, Rear
[07.2015 - 02.2016] AVV60,GSV60 IVORY/LT.BROWN,TRIM0# |
58910-33462-A2 |
— | ||
|
58910C
|
58910C
58910-33461-C1
Box Assy, Console, Rear
[03.2014 - 07.2015] AVV60,GSV60 BLACK,TRIM1#,2# |
58910-33461-C1 |
— | ||
| replacement | |||||
|
58910C
|
58910C
58910-33462-C5
Box Assy, Console, Rear
[03.2014 - 07.2015] AVV60,GSV60 BLACK,TRIM1#,2# |
58910-33462-C5 |
— | ||
|
58910C
|
58910C
58910-33461-C5
Box Assy, Console, Rear
[07.2015 - 02.2016] AVV60,GSV60 BLACK/LT.GRAY,TRIM2# |
58910-33461-C5 |
— | ||
| replacement | |||||
|
58910C
|
58910C
58910-33462-C5
Box Assy, Console, Rear
[07.2015 - 02.2016] AVV60,GSV60 BLACK/LT.GRAY,TRIM2# |
58910-33462-C5 |
— | ||
|
58910C
|
58910C
58910-33461-C6
Box Assy, Console, Rear
[07.2015 - 02.2016] AVV60,GSV60 MOON STONE/BLACK,TRIM1# |
58910-33461-C6 |
— | ||
| replacement | |||||
|
58910C
|
58910C
58910-33462-C6
Box Assy, Console, Rear
[07.2015 - 02.2016] AVV60,GSV60 MOON STONE/BLACK,TRIM1# |
58910-33462-C6 |
— | ||
|
58910C
|
58910C
58910-33461-F0
Box Assy, Console, Rear
[07.2015 - 02.2016] AVV60,GSV60 TOPAZ BROWN/IVORY,TRIM5# |
58910-33461-F0 |
— | ||
| replacement | |||||
|
58910C
|
58910C
58910-33462-F0
Box Assy, Console, Rear
[07.2015 - 02.2016] AVV60,GSV60 TOPAZ BROWN/IVORY,TRIM5# |
58910-33462-F0 |
— | ||
|
58910C
|
58910C
58910-33462-A2
Box Assy, Console, Rear
[03.2016 -] AVV60,GSV60 IVORY/LT.BROWN,TRIM0# |
58910-33462-A2 |
— | ||
|
58910C
|
58910C
58910-33462-C5
Box Assy, Console, Rear
[03.2016 -] GSV60 BLACK/LT.GRAY,TRIM2#,40; AVV60 BLACK/LT.GRAY,TRIM2# |
58910-33462-C5 |
— | ||
|
58910C
|
58910C
58910-33462-C6
Box Assy, Console, Rear
[03.2016 -] AVV60,GSV60 MOON STONE/BLACK,TRIM1# |
58910-33462-C6 |
— | ||
|
58910C
|
58910C
58910-33462-F0
Box Assy, Console, Rear
[03.2016 -] GSV60 TOPAZ BROWN/IVORY,TRIM41,5#; AVV60 TOPAZ BROWN/IVORY,TRIM5# |
58910-33462-F0 |
— | ||
|
58910D
|
58910D
90467-12080 Clip(For Panel, Instrument Cluster Finish)[06.2012 - 07.2015] AVV60,GSV60 |
90467-12080 |
from US $0.76 |
||
|
58911A
|
58911A
58901-33050-A0
Panel, Box Side, No.1
[06.2012 - 08.2013] AVV60,GSV60 D PACKAGE,IVORY,TRIM01 |
58901-33050-A0 |
— | ||
|
58911A
|
58911A
58901-33050-C0
Panel, Box Side, No.1
[06.2012 - 07.2015] GSV60 BLACK,TRIM1#,2#,3#; AVV60 BLACK,TRIM1#,2# |
58901-33050-C0 |
— | ||
|
58911A
|
58911A
58901-33050-E0
Panel, Box Side, No.1
[06.2012 - 08.2013] AVV60,GSV60 D PACKAGE,ORCHID BROWN,TRIM00 |
58901-33050-E0 |
— | ||
|
58911A
|
58911A
58901-33050-E1
Panel, Box Side, No.1
[07.2015 -] AVV60 NOBLE BROWN/TOPAZ BROWN,TRIM5# |
58901-33050-E1 |
— | ||
|
58911A
|
58911A
58901-33050-E2
Panel, Box Side, No.1
[07.2015 -] AVV60,GSV60 NOBLE BROWN/IVORY,TRIM0# |
58901-33050-E2 |
— | ||
|
58912C
|
58912C
58901-33060-A0
Panel, Box Side, No.2
[06.2012 - 08.2013] AVV60,GSV60 D PACKAGE,IVORY,TRIM01 |
58901-33060-A0 |
— | ||
|
58912C
|
58912C
58901-33060-C0
Panel, Box Side, No.2
[06.2012 - 07.2015] GSV60 BLACK,TRIM1#,2#,3#; AVV60 BLACK,TRIM1#,2# |
58901-33060-C0 |
— | ||
|
58912C
|
58912C
58901-33060-E0
Panel, Box Side, No.2
[06.2012 - 08.2013] AVV60,GSV60 D PACKAGE,ORCHID BROWN,TRIM00 |
58901-33060-E0 |
— | ||
|
58912C
|
58912C
58901-33060-E1
Panel, Box Side, No.2
[07.2015 -] AVV60 NOBLE BROWN/TOPAZ BROWN,TRIM5# |
58901-33060-E1 |
— | ||
|
58912C
|
58912C
58901-33060-E2
Panel, Box Side, No.2
[07.2015 -] AVV60,GSV60 NOBLE BROWN/IVORY,TRIM0# |
58901-33060-E2 |
— | ||
|
58913A
|
58913A
58913-33090
Panel, Box, No.3
[06.2012 - 08.2014] AVV60,GSV60 |
58913-33090 |
— | ||
|
58913A
|
58913A
58913-33100
Panel, Box, No.3
[08.2014 - 07.2015] AVV60,GSV60 |
58913-33100 |
— | ||
|
58921C
|
58921C
58921-33140
Plate, Box, Upper No.1
[06.2012 - 07.2015] AVV60,GSV60 |
58921-33140 |
— | ||
|
58922A
|
58922A
58922-33050
Plate, Box, Upper No.2
[06.2012 - 07.2015] AVV60,GSV60 |
58922-33050 |
— | ||
|
58949
|
58949
58217-33010
Plate, Console Box
[06.2012 - 07.2015] AVV60,GSV60 |
58217-33010 |
— | ||
|
58959B
|
58959B
58959-60060 Cushion, Instrument Panel[06.2012 - 07.2015] AVV60,GSV60 |
58959-60060 |
from US $1.29 |
||
|
58995A
|
58995A
58995-33100
Bracket, Console Box Mounting, No.1
[06.2012 - 07.2015] AVV60,GSV60 |
58995-33100 |
— | ||
|
58996A
|
58996A
58996-33090
Bracket, Console Box Mounting, No.2
[06.2012 - 07.2015] AVV60,GSV60 |
58996-33090 |
— | ||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9326955014
|
9326955014
93269-55014 New Genuine Part |
93269-55014 |
US $2.15 |
||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.66 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
