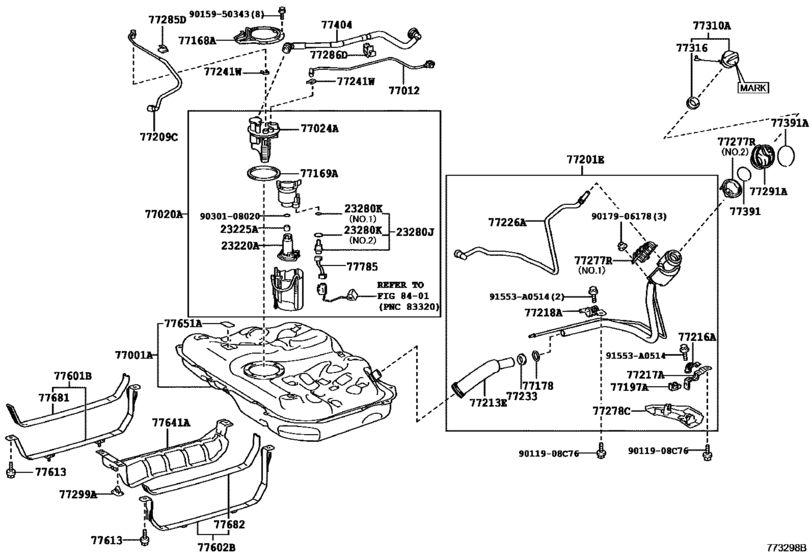

Fuel Tank & Tube ([06.2012 - ] FUEL TANK (1206- )AVV60) Diagram Toyota LEXUS ES
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- AVV60
- body
- SED
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- Model
- ES300 Hybrid
- From
- 06.2012
- No.of Doors
- 4D
- Vehicle Model
- ES300 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23220A
|
23220A
23220-28181 Pump, Fuel[06.2012 - 07.2015] 2ARFXE..AVV60 |
23220-28181 |
from US $316.50 |
||
|
23225A
|
23225A
23225-21020 Spacer, Fuel Pump[06.2012 - 07.2015] 2ARFXE..AVV60 |
23225-21020 |
from US $1.21 |
||
|
23280J
|
23280J
23280-21010 Regulator Assy, Fuel Pressure[06.2012 - 07.2015] 2ARFXE..AVV60 |
23280-21010 |
from US $52.77 |
||
|
23280K
|
23280K
90301-04013 Ring, O(For Fuel Pump)[06.2012 - 07.2015] 2ARFXE,2GRFE..AVV60,GSV60 NO.1:REFER ILLUST. |
90301-04013 |
from US $2.16 |
||
|
23280K
|
23280K
90301-15024 Ring, O(For Fuel Pump)[06.2012 - 07.2015] 2ARFXE,2GRFE..AVV60,GSV60 NO.2:REFER ILLUST. |
90301-15024 |
from US $2.15 |
||
|
77001A
|
77001A
77001-33250
Tank Sub-Assy, Fuel
[06.2012 - 07.2015] AVV60,GSV60 |
77001-33250 |
— | ||
|
77012
|
77012
77203-33070
Tube Sub-Assy, Fuel Tank Breather
[06.2012 - 07.2015] AVV60,GSV60 |
77203-33070 |
— | ||
|
77020A
|
77020A
77020-33370
Tube Assy, Fuel Suction W/pump & Gage
[06.2012 - 01.2015] AVV60 |
77020-33370 |
— | ||
| replacement | |||||
|
77020A
|
77020A
77020-33373
Tube Assy, Fuel Suction W/pump & Gage
[06.2012 - 01.2015] AVV60 |
77020-33373 |
— | ||
|
77020A
|
77020A
77020-33373
Tube Assy, Fuel Suction W/pump & Gage
[01.2015 - 07.2015] AVV60 |
77020-33373 |
— | ||
|
77024A
|
77024A
77024-33140
Plate Sub-Assy, Fuel Suction
[06.2012 - 01.2015] AVV60 |
77024-33140 |
— | ||
| replacement | |||||
|
77024A
|
77024A
77024-33142 Plate Sub-Assy, Fuel Suction[06.2012 - 01.2015] AVV60 |
77024-33142 |
US $100.68 |
||
|
77024A
|
77024A
77024-33142 Plate Sub-Assy, Fuel Suction[01.2015 - 07.2015] AVV60 |
77024-33142 |
US $100.68 |
||
|
77168A
|
77168A
77168-33070
Plate, Fuel Tank Vent Tube Set
[06.2012 - 07.2015] AVV60,GSV60 |
77168-33070 |
— | ||
|
77169A
|
77169A
77169-53010 Gasket, Fuel Suction Tube Set[06.2012 - 07.2015] AVV60,GSV60 |
77169-53010 |
from US $15 |
||
|
77178
|
77178
77178-33020
Gasket, Fuel Tank Filler Pipe, Lower
[06.2012 - 07.2015] AVV60,GSV60 |
77178-33020 |
— | ||
|
77197A
|
77197A
77197-42020 Clamp, Evaporation Vent Tube, No.2EVAPORATION VENT TUBE, NO.2 [06.2012 - 07.2015] AVV60,GSV60 |
77197-42020 |
US $4.22 |
||
|
77201E
|
77201E
77210-33420
Pipe Sub-Assy, Fuel Tank Filler
[06.2012 - 12.2012] AVV60 |
77210-33420 |
— | ||
| replacement | |||||
|
77201E
|
77201E
77210-33421
Pipe Sub-Assy, Fuel Tank Filler
[06.2012 - 12.2012] AVV60 |
77210-33421 |
— | ||
|
77201E
|
77201E
77210-33421
Pipe Sub-Assy, Fuel Tank Filler
[01.2013 - 07.2015] AVV60 |
77210-33421 |
— | ||
|
77209C
|
77209C
77209-33090
Tube Sub-Assy, Fuel Tank Main
[06.2012 - 07.2015] AVV60,GSV60 |
77209-33090 |
— | ||
|
77213E
|
77213E
77213-33110
Hose, Fuel Tank To Filler Pipe
[06.2012 - 07.2015] AVV60,GSV60 |
77213-33110 |
— | ||
|
77216A
|
77216A
77216-33110
Support, Fuel Tank Filler Pipe, No.1
[06.2012 - 07.2015] AVV60,GSV60 |
77216-33110 |
— | ||
|
77217A
|
77217A
77217-33050
Support, Fuel Tank Filler Pipe, No.2
[06.2012 - 07.2015] AVV60,GSV60 |
77217-33050 |
— | ||
|
77218A
|
77218A
77218-33030
Support, Fuel Tank Filler Pipe, No.3
[06.2012 - 12.2012] AVV60,GSV60 |
77218-33030 |
— | ||
| replacement | |||||
|
77218A
|
77218A
77218-33031
Support, Fuel Tank Filler Pipe, No.3
[06.2012 - 12.2012] AVV60,GSV60 |
77218-33031 |
— | ||
|
77218A
|
77218A
77218-33031
Support, Fuel Tank Filler Pipe, No.3
[01.2013 - 07.2015] AVV60,GSV60 |
77218-33031 |
— | ||
|
77226A
|
77226A
77226-33100
Tube, Fuel Tank Breather, No.6
[06.2012 - 07.2015] AVV60 |
77226-33100 |
— | ||
|
77233
|
77233
77233-33050
Joint, Fuel Hose
[06.2012 - 07.2015] AVV60,GSV60 |
77233-33050 |
— | ||
|
77241W
|
77241W
77241-33011 Clip, Tube Joint[06.2012 - 07.2015] AVV60,GSV60 |
77241-33011 |
from US $0.88 |
||
|
77277R
|
77277R
77277-33080
Protector, Fuel Tank Filler Pipe
[06.2012 - 07.2015] AVV60,GSV60 NO.1:REFER ILLUST. |
77277-33080 |
— | ||
|
77277R
|
77277R
77277-33100 Protector, Fuel Tank Filler Pipe[06.2012 - 07.2015] AVV60,GSV60 NO.2:REFER ILLUST. |
77277-33100 |
US $17.47 |
||
|
77278C
|
77278C
77278-33040
Protector, Fuel Tank Filler Pipe, No.2
[06.2012 - 07.2015] AVV60,GSV60 |
77278-33040 |
— | ||
|
77285D
|
77285D
77285-33110 Clamp, Fuel Tube, No.1[06.2012 - 07.2015] AVV60,GSV60 |
77285-33110 |
US $3.23 |
||
|
77286D
|
77286D
77286-33080
Clamp, Fuel Tube, No.2
[06.2012 - 07.2015] AVV60,GSV60 |
77286-33080 |
— | ||
|
77291A
|
77291A
77291-33120
Shield, Fuel Tank Filler Pipe
[06.2012 - 07.2015] AVV60,GSV60 |
77291-33120 |
— | ||
|
77299A
|
77299A
77299-52010 Clamp, Fuel Tube, No.5[06.2012 - 07.2015] AVV60,GSV60 |
77299-52010 |
US $2.33 |
||
|
77310A
|
77310A
77300-47040 Cap Assy, Fuel Tank[06.2012 - 08.2013] AVV60 MARK B:REFER ILLUST. |
77300-47040 |
US $24.61 |
||
|
77310A
|
77310A
77300-53030 Cap Assy, Fuel Tank[08.2013 - 07.2015] AVV60 MARK V:REFER ILLUST. |
77300-53030 |
US $32.93 |
||
|
77316
|
77316
77316-75020 Gasket, Fuel Tank Cap[06.2012 - 07.2015] AVV60 |
77316-75020 |
US $3.58 |
||
|
77391
|
77391
77391-12020 Ring, Fuel Inlet Box[06.2012 - 07.2015] AVV60,GSV60 |
77391-12020 |
from US $1.97 |
||
|
77391A
|
77391A
77391-30020 Ring, Fuel Inlet Box[06.2012 - 07.2015] AVV60,GSV60 |
77391-30020 |
US $3.58 |
||
|
77404
|
77404
77404-33180
Hose Sub-Assy, Fuel Tank Vent
[06.2012 - 07.2015] AVV60,GSV60 |
77404-33180 |
— | ||
|
77601B
|
77601B
77601-33120
Band Sub-Assy, Fuel Tank, No.1 Rh
[06.2012 - 11.2014] AVV60,GSV60 |
77601-33120 |
— | ||
|
77601B
|
77601B
77601-33140
Band Sub-Assy, Fuel Tank, No.1 Rh
[12.2014 - 07.2015] AVV60,GSV60 |
77601-33140 |
— | ||
|
77602B
|
77602B
77602-33120
Band Sub-Assy, Fuel Tank, No.1 Lh
[06.2012 - 11.2014] AVV60,GSV60 |
77602-33120 |
— | ||
|
77602B
|
77602B
77602-33150
Band Sub-Assy, Fuel Tank, No.1 Lh
[12.2014 - 07.2015] AVV60,GSV60 |
77602-33150 |
— | ||
|
77613
|
77613
90119-10971 Bolt, Fuel Tank Band Set[06.2012 - 07.2015] AVV60,GSV60 |
90119-10971 |
US $2.15 |
||
|
77641A
|
77641A
77641-06010
Protector, Fuel Tank, No.1
[06.2012 - 07.2015] AVV60,GSV60 |
77641-06010 |
— | ||
|
77651A
|
77651A
77651-20090 Cushion, Fuel Tank, No.1[06.2012 - 07.2015] AVV60,GSV60 |
77651-20090 |
US $4.48 |
||
|
77681
|
77681
77681-33030
Seat, Fuel Tank Band, Rh
[06.2012 - 07.2015] AVV60,GSV60 |
77681-33030 |
— | ||
|
77682
|
77682
77681-33030
Seat, Fuel Tank Band, Rh
[06.2012 - 07.2015] AVV60,GSV60 |
77681-33030 |
— | ||
|
77785
|
77785
77785-12010 Harness, Fuel Pump[06.2012 - 07.2015] AVV60 |
77785-12010 |
US $15.59 |
||
|
91553A0514
|
91553A0514
91553-A0514 BOLT FLANGE |
91553-A0514 |
US $0.73 |
||
|
9011908C76
|
9011908C76
90119-08C76 New Genuine Part |
90119-08C76 |
US $1.02 |
||
|
9015950343
|
9015950343
90159-50343 SCREW, W-WASHER |
90159-50343 |
from US $0.68 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.78 |
||
|
9030108020
|
9030108020
90301-08020 Ring, O(For Fuel Pump) |
90301-08020 |
from US $2.65 |
||
