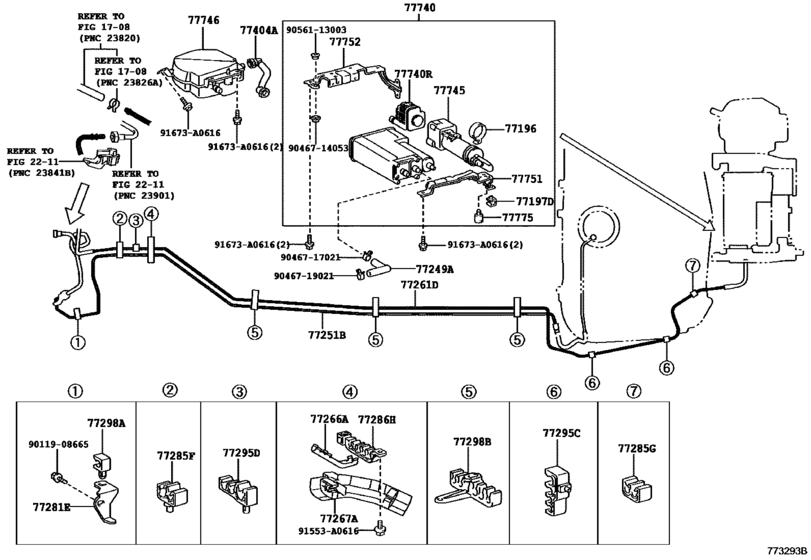

Fuel Tank & Tube ([06.2012 - ] FUEL TUBE (1206- )AVV60) Diagram Toyota LEXUS ES
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- AVV60
- body
- SED
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- Model
- ES300 Hybrid
- From
- 06.2012
- No.of Doors
- 4D
- Vehicle Model
- ES300 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77196
|
77196
77196-33030
Clamp, Evaporation Vent Tube, No.1
[06.2012 - 07.2015] AVV60 |
77196-33030 |
— | ||
|
77197D
|
77197D
77197-42020 Clamp, Evaporation Vent Tube, No.2EVAPORATION VENT TUBE, NO.2 [06.2012 - 07.2015] AVV60 |
77197-42020 |
US $4.22 |
||
|
77249A
|
77249A
77249-33110
Hose, Fuel Emission
[06.2012 - 07.2015] AVV60 |
77249-33110 |
— | ||
|
77251B
|
77251B
77251-33220
Tube, Fuel Main
[06.2012 - 07.2015] AVV60 |
77251-33220 |
— | ||
|
77261D
|
77261D
77261-33210
Tube, Fuel Tank To Canister
[06.2012 - 07.2015] AVV60 |
77261-33210 |
— | ||
|
77266A
|
77266A
77266-33050 Protector, Fuel Tube, No.1[06.2012 - 07.2015] AVV60,GSV60 |
77266-33050 |
US $4.37 |
||
|
77267A
|
77267A
77267-33040 Protector, Fuel Tube, No.2[06.2012 - 07.2015] AVV60 |
77267-33040 |
from US $7.57 |
||
|
77281E
|
77281E
77281-33030 Bracket, Fuel Main Tube, No.1[06.2012 - 07.2015] AVV60,GSV60 |
77281-33030 |
from US $2.16 |
||
|
77285F
|
77285F
77286-75010 Clamp, Fuel Tube, No.2FUEL TUBE, NO.2 [06.2012 - 07.2015] AVV60 |
77286-75010 |
US $5.38 |
||
|
77285G
|
77285G
77285-33100
Clamp, Fuel Tube, No.1
[06.2012 - 07.2015] AVV60 |
77285-33100 |
— | ||
|
77286H
|
77286H
77286-33060
Clamp, Fuel Tube, No.3
[06.2012 - 07.2015] AVV60 |
77286-33060 |
— | ||
|
77295C
|
77295C
77295-33040
Grommet, Fuel Tube
[06.2012 - 07.2015] AVV60 |
77295-33040 |
— | ||
|
77295D
|
77295D
77295-33040
Grommet, Fuel Tube
[06.2012 - 07.2015] AVV60 |
77295-33040 |
— | ||
|
77298A
|
77298A
77298-30170 Clamp, Fuel Tube, No.3[06.2012 - 07.2015] AVV60,GSV60 |
77298-30170 |
US $4.84 |
||
|
77298B
|
77298B
77298-33080
Clamp, Fuel Tube, No.4
[06.2012 - 07.2015] AVV60 |
77298-33080 |
— | ||
|
77404A
|
77404A
77404-33190
Hose Sub-Assy,fuel Tank Vent
[06.2012 - 07.2015] AVV60 |
77404-33190 |
— | ||
|
77740
|
77740
77740-33200
Canister Assy, Charcoal
[06.2012 - 07.2015] AVV60 |
77740-33200 |
— | ||
|
77740R
|
77740R
90910-14005
Leak Detection Pump Sub-Assy, Charcoal Canister
[06.2012 - 04.2015] AVV60,GSV60 |
90910-14005 |
— | ||
| replacement | |||||
|
77740R
|
77740R
90910-14008
Leak Detection Pump Sub-Assy, Charcoal Canister
[06.2012 - 04.2015] AVV60,GSV60 |
90910-14008 |
— | ||
|
77740R
|
77740R
90910-14008
Leak Detection Pump Sub-Assy, Charcoal Canister
[05.2015 - 07.2015] AVV60,GSV60 |
90910-14008 |
— | ||
|
77745
|
77745
77745-33030
Filter, Charcoal Canister, No.1
[06.2012 - 07.2015] AVV60 |
77745-33030 |
— | ||
|
77746
|
77746
77746-33020
Filter, Charcoal Canister, No.2
[06.2012 - 07.2015] AVV60 |
77746-33020 |
— | ||
|
77751
|
77751
77751-33130
Bracket, Charcoal Canister Base
[06.2012 - 07.2015] AVV60 |
77751-33130 |
— | ||
|
77752
|
77752
77752-33060
Bracket, Charcoal Canister Support
[06.2012 - 07.2015] AVV60 |
77752-33060 |
— | ||
|
77775
|
77775
77775-47010
Guide, Charcoal Canister Outlet
[06.2012 - 07.2015] AVV60,GSV60 |
77775-47010 |
— | ||
|
91553A0616
|
91553A0616
91553-A0616 New Genuine Part |
91553-A0616 |
US $1.08 |
||
|
91673A0616
|
91673A0616
91673-A0616 BOLT, FLANGE |
91673-A0616 |
from US $0.64 |
||
|
9011908665
|
9011908665
90119-08665 BOLT |
90119-08665 |
US $1.61 |
||
|
9046714053
|
9046714053
90467-14053 Clip, No.1(For Floor Under Cover) |
90467-14053 |
from US $1.13 |
||
|
9046717021
|
9046717021
90467-17021 Clamp Or Clip, Hose(For Water By-Pass Hose) |
90467-17021 |
US $2.15 |
||
|
9046719021
|
9046719021
90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose) |
90467-19021 |
from US $1.48 |
||
|
9056113003
|
9056113003
90561-13003 Clip, No.4(For Floor Under Cover) |
90561-13003 |
US $1.25 |
||
