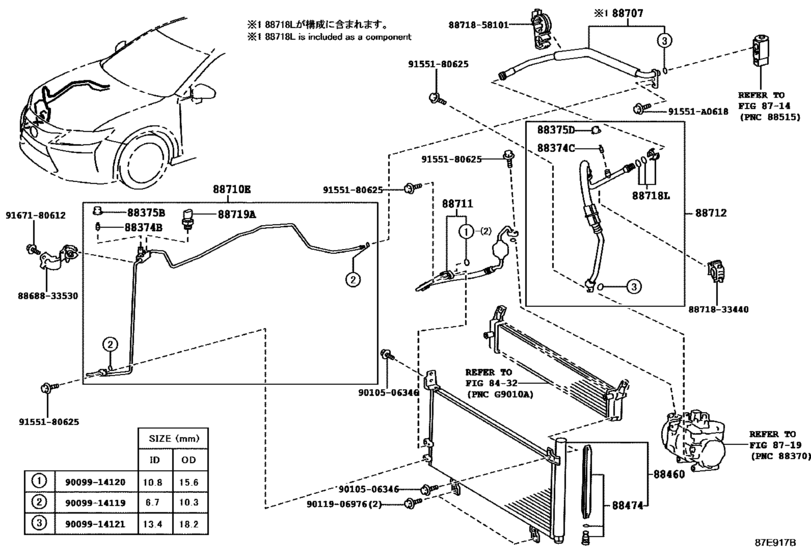

Heating & Air Conditioning - Cooler Piping ([06.2012 - ] (1206- )AVV60) Diagram Toyota LEXUS ES
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- AVV60
- body
- SED
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- Model
- ES300 Hybrid
- From
- 06.2012
- No.of Doors
- 4D
- Vehicle Model
- ES300 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88374-30010 Valve, Service, No.1[06.2012 - 07.2015] AVV60,GSV60 |
88374-30010 |
from US $3.12 |
||
|
88374C
|
88374C
88374-30010 Valve, Service, No.1[06.2012 - 07.2015] AVV60,GSV60 |
88374-30010 |
from US $3.12 |
||
|
88375B
|
88375B
88375-30280 Cap, Service Valve (For Cooler Pipe)[06.2012 - 07.2015] AVV60,GSV60 |
88375-30280 |
from US $0.98 |
||
|
88375D
|
88375D
88375-30290 Cap, Service Valve (For Cooler Pipe)[06.2012 - 07.2015] AVV60,GSV60 |
88375-30290 |
from US $0.88 |
||
|
88460
|
88460
88460-33160 Condenser Assy, Cooler[06.2012 - 07.2015] AVV60 |
88460-33160 |
US $670.49 |
||
|
88474
|
88474
88474-47030 Dryer, Cooler[06.2012 - 07.2015] AVV60 |
88474-47030 |
US $72.68 |
||
|
88707
|
88707
88707-33070
Pipe Sub-Assy, Suction
[06.2012 - 07.2015] AVV60 |
88707-33070 |
— | ||
|
88710E
|
88710E
88710-33310
Tube & Accessory Assy, Air Conditioner
[06.2012 - 07.2015] AVV60 |
88710-33310 |
— | ||
|
88711
|
88711
88711-33280 Hose, Cooler Refrigerant Discharge, No.1[06.2012 - 07.2015] AVV60 |
88711-33280 |
US $119.39 |
||
|
88712
|
88712
88712-33310 Hose, Cooler Refrigerant Suction, No.1[06.2012 - 07.2015] AVV60 |
88712-33310 |
US $141.23 |
||
|
88718L
|
88718L
88718-52280 Clamp, Piping[06.2012 - 07.2015] AVV60,GSV60 |
88718-52280 |
from US $7.86 |
||
|
88719A
|
88719A
88719-33020 Sensor, Airconditioner Pressure[06.2012 - 07.2015] AVV60,GSV60 |
88719-33020 |
from US $124.05 |
||
|
91551A0618
|
91551A0618
91551-A0618 BOLT FLANGE |
91551-A0618 |
from US $0.78 |
||
|
8868833530
|
8868833530
88688-33530
Bracket, Cooler Diaphragm
|
88688-33530 |
— | ||
|
8871833440
|
8871833440
88718-33440
Pipe, Cooler Refrigerant Suction, No.2
|
88718-33440 |
— | ||
|
8871858101
|
8871858101
88718-58101
Clamp(For Cooler Refrigerant Hose), No.2
|
88718-58101 |
— | ||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.66 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.68 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.83 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9010506346
|
9010506346
90105-06346
New Genuine Part
|
90105-06346 |
— | ||
|
9011906976
|
9011906976
90119-06976 New Genuine Part |
90119-06976 |
US $0.73 |
||
|
9155180625
|
9155180625
91551-80625 Bolt(For Camshaft Housing Set) |
91551-80625 |
from US $0.64 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.66 |
||
