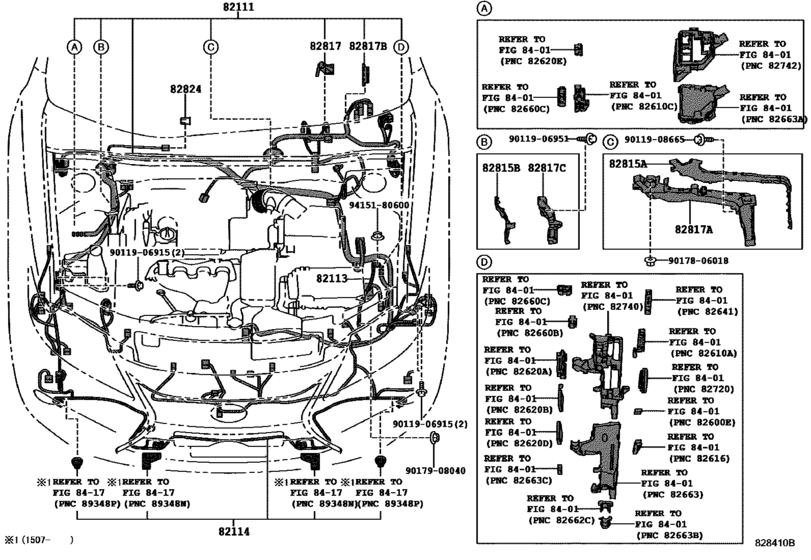

Wiring & Clamp ([06.2012 - ] ENGINE ROOM (1206- )AVV60) Diagram Toyota LEXUS ES
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- AVV60
- body
- SED
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- Model
- ES300 Hybrid
- From
- 06.2012
- No.of Doors
- 4D
- Vehicle Model
- ES300 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-33S50
Wire, Engine Room Main
[06.2012 - 10.2012] AVV60 |
82111-33S50 |
— | ||
| replacement | |||||
|
82111
|
82111
82111-33S51
Wire, Engine Room Main
[06.2012 - 10.2012] AVV60 |
82111-33S51 |
— | ||
|
82111
|
82111
82111-33S51
Wire, Engine Room Main
[11.2012 - 08.2013] AVV60 |
82111-33S51 |
— | ||
|
82111
|
82111
82111-33S52
Wire, Engine Room Main
[08.2013 - 08.2014] AVV60 |
82111-33S52 |
— | ||
|
82111
|
82111
82111-33S53
Wire, Engine Room Main
[08.2014 - 11.2014] AVV60 |
82111-33S53 |
— | ||
| replacement | |||||
|
82111
|
82111
82111-33S54
Wire, Engine Room Main
[08.2014 - 11.2014] AVV60 |
82111-33S54 |
— | ||
|
82111
|
82111
82111-33S54
Wire, Engine Room Main
[12.2014 - 07.2015] AVV60 |
82111-33S54 |
— | ||
|
82111
|
82111
82111-33S60
Wire, Engine Room Main
[06.2012 - 10.2012] AVV60 CLEARANCE & BACK SONAR-WITH |
82111-33S60 |
— | ||
| replacement | |||||
|
82111
|
82111
82111-33S61
Wire, Engine Room Main
[06.2012 - 10.2012] AVV60 CLEARANCE & BACK SONAR-WITH |
82111-33S61 |
— | ||
|
82111
|
82111
82111-33S61
Wire, Engine Room Main
[11.2012 - 08.2013] AVV60 CLEARANCE & BACK SONAR-WITH |
82111-33S61 |
— | ||
|
82111
|
82111
82111-33S62
Wire, Engine Room Main
[08.2013 - 08.2014] AVV60 CLEARANCE & BACK SONAR-WITH |
82111-33S62 |
— | ||
|
82111
|
82111
82111-33S63
Wire, Engine Room Main
[08.2014 - 11.2014] AVV60 CLEARANCE & BACK SONAR-WITH |
82111-33S63 |
— | ||
| replacement | |||||
|
82111
|
82111
82111-33S64
Wire, Engine Room Main
[08.2014 - 11.2014] AVV60 CLEARANCE & BACK SONAR-WITH |
82111-33S64 |
— | ||
|
82111
|
82111
82111-33S64
Wire, Engine Room Main
[12.2014 - 07.2015] AVV60 CLEARANCE & BACK SONAR-WITH |
82111-33S64 |
— | ||
|
82111
|
82111
82111-33S70
Wire, Engine Room Main
[06.2012 - 10.2012] AVV60 HAWAII SPEC&C PACKAGE&HEAD LAMP-DISCHARGE & *AHB & *DRL&AUDIO-*DA & CD & 8SPEAKER; AVV60 HAWAII SPEC&C PACKAGE&HEAD LAMP-DISCHARGE & *AHB & *DRL&AUDIO-EMVN & DVD & 8SPEAKE R; AVV60 HAWAII SPEC&C PACKAGE&HEAD LAMP-DISCHARGE & *AHB |
82111-33S70 |
— | ||
| replacement | |||||
|
82111
|
82111
82111-33S71
Wire, Engine Room Main
[06.2012 - 10.2012] AVV60 HAWAII SPEC&C PACKAGE&HEAD LAMP-DISCHARGE & *AHB & *DRL&AUDIO-*DA & CD & 8SPEAKER; AVV60 HAWAII SPEC&C PACKAGE&HEAD LAMP-DISCHARGE & *AHB & *DRL&AUDIO-EMVN & DVD & 8SPEAKE R; AVV60 HAWAII SPEC&C PACKAGE&HEAD LAMP-DISCHARGE & *AHB |
82111-33S71 |
— | ||
|
82111
|
82111
82111-33S71
Wire, Engine Room Main
[11.2012 - 08.2013] AVV60 HAWAII SPEC&C PACKAGE&HEAD LAMP-DISCHARGE & *AHB & *DRL&AUDIO-*DA & CD & 8SPEAKER; AVV60 HAWAII SPEC&C PACKAGE&HEAD LAMP-DISCHARGE & *AHB & *DRL&AUDIO-EMVN & DVD & 8SPEAKE R; AVV60 HAWAII SPEC&C PACKAGE&HEAD LAMP-DISCHARGE & *AHB |
82111-33S71 |
— | ||
|
82111
|
82111
82111-33S72
Wire, Engine Room Main
[08.2013 - 08.2014] AVV60 HAWAII SPEC&C PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-DISCHARGE & *AHB & *DRL&AUDIO-*DA & CD & 8SPEAKER; AVV60 HAWAII SPEC&C PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAM |
82111-33S72 |
— | ||
|
82111
|
82111
82111-33S73
Wire, Engine Room Main
[08.2014 - 11.2014] AVV60 C PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-DISCHAR GE & *AHB & *DRL; AVV60 D PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-DISCHAR GE & *AHB & *DRL; AVV60 D PACKAGE&INTER |
82111-33S73 |
— | ||
| replacement | |||||
|
82111
|
82111
82111-33S74
Wire, Engine Room Main
[08.2014 - 11.2014] AVV60 C PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-DISCHAR GE & *AHB & *DRL; AVV60 D PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-DISCHAR GE & *AHB & *DRL; AVV60 D PACKAGE&INTER |
82111-33S74 |
— | ||
|
82111
|
82111
82111-33S74
Wire, Engine Room Main
[12.2014 - 07.2015] AVV60 C PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-DISCHAR GE & *AHB & *DRL; AVV60 D PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-DISCHAR GE & *AHB & *DRL; AVV60 D PACKAGE&INTER |
82111-33S74 |
— | ||
|
82111
|
82111
82111-33S80
Wire, Engine Room Main
[06.2012 - 10.2012] AVV60 HAWAII SPEC&C PACKAGE&HEAD LAMP-DISCHARGE & *AHB & *DRL&AUDIO-*DA & CD & 8SPEAKER& CLEARANCE & BACK SONAR-WITH; AVV60 HAWAII SPEC&C PACKAGE&HEAD LAMP-DISCHARGE & *AHB & *DRL&AUDIO-EMVN & DVD & 8SPEAKE R&CLEARANCE & BACK SONAR-WIT |
82111-33S80 |
— | ||
| replacement | |||||
|
82111
|
82111
82111-33S81
Wire, Engine Room Main
[06.2012 - 10.2012] AVV60 HAWAII SPEC&C PACKAGE&HEAD LAMP-DISCHARGE & *AHB & *DRL&AUDIO-*DA & CD & 8SPEAKER& CLEARANCE & BACK SONAR-WITH; AVV60 HAWAII SPEC&C PACKAGE&HEAD LAMP-DISCHARGE & *AHB & *DRL&AUDIO-EMVN & DVD & 8SPEAKE R&CLEARANCE & BACK SONAR-WIT |
82111-33S81 |
— | ||
|
82111
|
82111
82111-33S81
Wire, Engine Room Main
[11.2012 - 08.2013] AVV60 HAWAII SPEC&C PACKAGE&HEAD LAMP-DISCHARGE & *AHB & *DRL&AUDIO-*DA & CD & 8SPEAKER& CLEARANCE & BACK SONAR-WITH; AVV60 HAWAII SPEC&C PACKAGE&HEAD LAMP-DISCHARGE & *AHB & *DRL&AUDIO-EMVN & DVD & 8SPEAKE R&CLEARANCE & BACK SONAR-WIT |
82111-33S81 |
— | ||
|
82111
|
82111
82111-33S82
Wire, Engine Room Main
[08.2013 - 08.2014] AVV60 HAWAII SPEC&C PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-DISCHARGE & *AHB & *DRL&AUDIO-*DA & CD & 8SPEAKER&CLEARANCE & BACK SONAR-WITH; AVV60 HAWAII SPEC&C PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR |
82111-33S82 |
— | ||
|
82111
|
82111
82111-33S83
Wire, Engine Room Main
[08.2014 - 11.2014] AVV60 C PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-DISCHAR GE & *AHB & *DRL&CLEARANCE & BACK SONAR-WITH; AVV60 D PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-DISCHAR GE & *AHB & |
82111-33S83 |
— | ||
| replacement | |||||
|
82111
|
82111
82111-33S84
Wire, Engine Room Main
[08.2014 - 11.2014] AVV60 C PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-DISCHAR GE & *AHB & *DRL&CLEARANCE & BACK SONAR-WITH; AVV60 D PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-DISCHAR GE & *AHB & |
82111-33S84 |
— | ||
|
82111
|
82111
82111-33S84
Wire, Engine Room Main
[12.2014 - 07.2015] AVV60 C PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-DISCHAR GE & *AHB & *DRL&CLEARANCE & BACK SONAR-WITH; AVV60 D PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-DISCHAR GE & *AHB & |
82111-33S84 |
— | ||
|
82111
|
82111
82111-33T00
Wire, Engine Room Main
[06.2012 - 10.2012] AVV60 HAWAII SPEC&C PACKAGE&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSO R & TIME ADJUSTMENT)&HEAD LAMP-DISCHARGE & *AHB & *DRL&AUDIO-EMVN & DVD & 8SPEAKER &CLEARANCE & BACK SONAR-WITH&BLIND SPOT MONITOR-WITH & WITH(REA |
82111-33T00 |
— | ||
| replacement | |||||
|
82111
|
82111
82111-33T01
Wire, Engine Room Main
[06.2012 - 10.2012] AVV60 HAWAII SPEC&C PACKAGE&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSO R & TIME ADJUSTMENT)&HEAD LAMP-DISCHARGE & *AHB & *DRL&AUDIO-EMVN & DVD & 8SPEAKER &CLEARANCE & BACK SONAR-WITH&BLIND SPOT MONITOR-WITH & WITH(REA |
82111-33T01 |
— | ||
|
82111
|
82111
82111-33T01
Wire, Engine Room Main
[11.2012 - 08.2013] AVV60 HAWAII SPEC&C PACKAGE&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSO R & TIME ADJUSTMENT)&HEAD LAMP-DISCHARGE & *AHB & *DRL&AUDIO-EMVN & DVD & 8SPEAKER &CLEARANCE & BACK SONAR-WITH&BLIND SPOT MONITOR-WITH & WITH(REA |
82111-33T01 |
— | ||
|
82111
|
82111
82111-33T02
Wire, Engine Room Main
[08.2013 - 08.2014] AVV60 HAWAII SPEC&C PACKAGE&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSO R & TIME ADJUSTMENT)&HEAD LAMP-DISCHARGE & *AHB & *DRL&AUDIO-EMVN & DVD & 8SPEAKER &CLEARANCE & BACK SONAR-WITH&BLIND SPOT MONITOR-WITH & WITH(REA |
82111-33T02 |
— | ||
|
82111
|
82111
82111-33T03
Wire, Engine Room Main
[08.2014 - 11.2014] AVV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJ USTMENT)&HEAD LAMP-DISCHARGE & *AHB & *DRL&CLEARANCE & BACK SONAR-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT); AVV60 C PACKAGE&P |
82111-33T03 |
— | ||
| replacement | |||||
|
82111
|
82111
82111-33T04
Wire, Engine Room Main
[08.2014 - 11.2014] AVV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJ USTMENT)&HEAD LAMP-DISCHARGE & *AHB & *DRL&CLEARANCE & BACK SONAR-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT); AVV60 C PACKAGE&P |
82111-33T04 |
— | ||
|
82111
|
82111
82111-33T04
Wire, Engine Room Main
[12.2014 - 07.2015] AVV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJ USTMENT)&HEAD LAMP-DISCHARGE & *AHB & *DRL&CLEARANCE & BACK SONAR-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT); AVV60 C PACKAGE&P |
82111-33T04 |
— | ||
|
82111
|
82111
82111-33T30
Wire, Engine Room Main
[06.2012 - 10.2012] AVV60 KOREA SPEC&C PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & WOOD&HEAD LAMP-DISCHARGE & * DRL&AUDIO-EMVN & DVD & 8SPEAKER&CLEARANCE & BACK SONAR-WITH; AVV60 KOREA SPEC&C PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & WOOD&HEAD LAMP-DISCHARGE |
82111-33T30 |
— | ||
| replacement | |||||
|
82111
|
82111
82111-33T31
Wire, Engine Room Main
[06.2012 - 10.2012] AVV60 KOREA SPEC&C PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & WOOD&HEAD LAMP-DISCHARGE & * DRL&AUDIO-EMVN & DVD & 8SPEAKER&CLEARANCE & BACK SONAR-WITH; AVV60 KOREA SPEC&C PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & WOOD&HEAD LAMP-DISCHARGE |
82111-33T31 |
— | ||
|
82111
|
82111
82111-33T31
Wire, Engine Room Main
[11.2012 - 08.2013] AVV60 KOREA SPEC&C PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & WOOD&HEAD LAMP-DISCHARGE & * DRL&AUDIO-EMVN & DVD & 8SPEAKER&CLEARANCE & BACK SONAR-WITH; AVV60 KOREA SPEC&C PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & WOOD&HEAD LAMP-DISCHARGE |
82111-33T31 |
— | ||
|
82111
|
82111
82111-33T32
Wire, Engine Room Main
[08.2013 - 08.2014] AVV60 KOREA SPEC&C PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & WOOD&HEAD LAMP-DISCHARGE & * DRL&AUDIO-EMVN & DVD & 8SPEAKER&CLEARANCE & BACK SONAR-WITH; AVV60 KOREA SPEC&C PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & WOOD&HEAD LAMP-DISCHARGE |
82111-33T32 |
— | ||
|
82111
|
82111
82111-33T33
Wire, Engine Room Main
[08.2014 - 11.2014] AVV60 KOREA SPEC&HEAD LAMP-DISCHARGE & *DRL&AUDIO-*DA & CD & 8SPEAKER&CLEARANCE & BACK S ONAR-WITH; AVV60 KOREA SPEC&C PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & WOOD&HEAD LAMP-DISCHARGE & * DRL&AUDIO-*DA & CD & 8SPEAKER&CLEARANCE & BACK |
82111-33T33 |
— | ||
| replacement | |||||
|
82111
|
82111
82111-33T34
Wire, Engine Room Main
[08.2014 - 11.2014] AVV60 KOREA SPEC&HEAD LAMP-DISCHARGE & *DRL&AUDIO-*DA & CD & 8SPEAKER&CLEARANCE & BACK S ONAR-WITH; AVV60 KOREA SPEC&C PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & WOOD&HEAD LAMP-DISCHARGE & * DRL&AUDIO-*DA & CD & 8SPEAKER&CLEARANCE & BACK |
82111-33T34 |
— | ||
|
82111
|
82111
82111-33T34
Wire, Engine Room Main
[12.2014 - 07.2015] AVV60 KOREA SPEC&HEAD LAMP-DISCHARGE & *DRL&AUDIO-*DA & CD & 8SPEAKER&CLEARANCE & BACK S ONAR-WITH; AVV60 KOREA SPEC&C PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & WOOD&HEAD LAMP-DISCHARGE & * DRL&AUDIO-*DA & CD & 8SPEAKER&CLEARANCE & BACK |
82111-33T34 |
— | ||
|
82111
|
82111
82111-33X40
Wire, Engine Room Main
[07.2015 - 08.2016] AVV60 |
82111-33X40 |
— | ||
|
82111
|
82111
82111-33X41
Wire, Engine Room Main
[08.2016 - 08.2017] AVV60 |
82111-33X41 |
— | ||
|
82111
|
82111
82111-33X50
Wire, Engine Room Main
[07.2015 - 08.2016] AVV60 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
82111-33X50 |
— | ||
|
82111
|
82111
82111-33X51
Wire, Engine Room Main
[08.2016 - 08.2017] AVV60 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
82111-33X51 |
— | ||
|
82111
|
82111
82111-33X60
Wire, Engine Room Main
[07.2015 - 08.2016] AVV60 B PACKAGE&HEAD LAMP-HI(LED); AVV60 C PACKAGE&HEAD LAMP-HI(LED); AVV60 D PACKAGE&HEAD LAMP-HI(LED); AVV60 D PACKAGE&HEAD LAMP-HI(LED) & WITH(AFS) |
82111-33X60 |
— | ||
|
82111
|
82111
82111-33X61
Wire, Engine Room Main
[08.2016 - 08.2017] AVV60 B PACKAGE&HEAD LAMP-HI(LED); AVV60 HAWAII SPEC&D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&INTERMITTENT WIPER-WI TH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED); AVV60 HAWAII SPEC&D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHE |
82111-33X61 |
— | ||
|
82111
|
82111
82111-33X70
Wire, Engine Room Main
[07.2015 - 08.2016] AVV60 B PACKAGE&HEAD LAMP-HI(LED)&CLEARANCE & BACK SONAR-WITH; AVV60 C PACKAGE&HEAD LAMP-HI(LED)&CLEARANCE & BACK SONAR-WITH; AVV60 D PACKAGE&HEAD LAMP-HI(LED)&CLEARANCE & BACK SONAR-WITH; AVV60 D PACKAGE&HEAD LAMP-HI(LED) & WITH(AFS)& |
82111-33X70 |
— | ||
|
82111
|
82111
82111-33X71
Wire, Engine Room Main
[08.2016 - 08.2017] AVV60 B PACKAGE&HEAD LAMP-HI(LED)&CLEARANCE & BACK SONAR-WITH; AVV60 HAWAII SPEC&D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&INTERMITTENT WIPER-WI TH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED)&CLEARANCE & BACK SONAR-WITH; AV |
82111-33X71 |
— | ||
|
82111
|
82111
82111-33Y20
Wire, Engine Room Main
[07.2015 - 08.2016] AVV60 B PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB); AVV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB); AVV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(AFS & *AHB); AVV60 D |
82111-33Y20 |
— | ||
|
82111
|
82111
82111-33Y21
Wire, Engine Room Main
[08.2016 - 08.2017] AVV60 HAWAII SPEC&D PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WI TH(*AHB); AVV60 HAWAII SPEC&D PACKAGE&PRE-COLLISION SYSTEM-WITH& |
82111-33Y21 |
— | ||
|
82111
|
82111
82111-33Y30
Wire, Engine Room Main
[07.2015 - 08.2016] AVV60 B PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BAC K SONAR-WITH; AVV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BAC K SONAR-WITH; AVV60 C PACKAGE&PRE-COLLISION |
82111-33Y30 |
— | ||
|
82111
|
82111
82111-33Y31
Wire, Engine Room Main
[08.2016 - 08.2017] AVV60 HAWAII SPEC&D PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WI TH(*AHB)&CLEARANCE & BACK SONAR-WITH; AVV60 HAWAII SPEC&D PACKAG |
82111-33Y31 |
— | ||
|
82111
|
82111
82111-33Y40
Wire, Engine Room Main
[07.2015 - 08.2016] AVV60 PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(HALOGEN) & WITH(*AHB) |
82111-33Y40 |
— | ||
|
82111
|
82111
82111-33Y41
Wire, Engine Room Main
[08.2016 - 08.2017] AVV60 PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&H EAD LAMP-HI(HALOGEN) & WITH(*AHB) |
82111-33Y41 |
— | ||
|
82111
|
82111
82111-33Y50
Wire, Engine Room Main
[07.2015 - 08.2016] AVV60 PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(HALOGEN) & WITH(*AHB)&CLEARANCE & BACK SONA R-WITH |
82111-33Y50 |
— | ||
|
82111
|
82111
82111-33Y51
Wire, Engine Room Main
[08.2016 - 08.2017] AVV60 PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&H EAD LAMP-HI(HALOGEN) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
82111-33Y51 |
— | ||
|
82111
|
82111
82111-3TK50
Wire, Engine Room Main
[07.2015 - 08.2016] AVV60 CLEARANCE & BACK SONAR-WITH |
82111-3TK50 |
— | ||
|
82111
|
82111
82111-3TK51
Wire, Engine Room Main
[08.2016 - 08.2017] AVV60 CLEARANCE & BACK SONAR-WITH |
82111-3TK51 |
— | ||
|
82111
|
82111
82111-3TM00
Wire, Engine Room Main
[07.2015 - 08.2016] AVV60 KOREA SPEC&C PACKAGE&HEAD LAMP-HI(LED)&CLEARANCE & BACK SONAR-WITH; AVV60 KOREA SPEC&D PACKAGE&HEAD LAMP-HI(LED)&CLEARANCE & BACK SONAR-WITH |
82111-3TM00 |
— | ||
|
82111
|
82111
82111-3TM01
Wire, Engine Room Main
[08.2016 - 08.2017] AVV60 KOREA SPEC&C PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&HEAD LAMP-HI(LED)&CLEA RANCE & BACK SONAR-WITH; AVV60 KOREA SPEC&C PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&HEAD LAM P-HI(LED)&CLEARANCE & BACK SONAR |
82111-3TM01 |
— | ||
|
82113
|
82113
82113-33040 Wire, Engine Room, No.3[06.2012 - 07.2015] AVV60 |
82113-33040 |
US $36.11 |
||
|
82114
|
82114
82114-33030
Wire, Engine Room, No.4
[06.2012 - 07.2015] AVV60,GSV60 CLEARANCE & BACK SONAR-WITH |
82114-33030 |
— | ||
|
82114
|
82114
82114-33031
Wire, Engine Room, No.4
[07.2015 -] AVV60,GSV60 CLEARANCE & BACK SONAR-WITH |
82114-33031 |
— | ||
|
82815A
|
82815A
82815-33620
Cover, Wiring Harness Protector
[06.2012 - 07.2015] AVV60 |
82815-33620 |
— | ||
|
82815B
|
82815B
82815-33630
Cover, Wiring Harness Protector
[06.2012 - 07.2015] AVV60 |
82815-33630 |
— | ||
|
82817
|
82817
82817-33K00
Protector, Wiring Harness, No.1
[06.2012 - 07.2015] AVV60,GSV60 |
82817-33K00 |
— | ||
|
82817A
|
82817A
82817-33F90
Protector, Wiring Harness, No.2
[06.2012 - 07.2015] AVV60 |
82817-33F90 |
— | ||
|
82817B
|
82817B
82817-33L80
Protector, Wiring Harness, No.3
[06.2012 - 07.2015] AVV60,GSV60 |
82817-33L80 |
— | ||
|
82817C
|
82817C
82817-33G00
Protector, Wiring Harness, No.4
[06.2012 - 07.2015] AVV60 |
82817-33G00 |
— | ||
|
82824
|
82824
82824-33600
Connector, Wiring Harness
[06.2012 - 07.2015] AVV60,GSV60; AVV60,GSV60 HAWAII SPEC&C PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-DISCHARGE & *AHB & *DRL&AUDIO-*DA & CD & 8SPEAKER; GSV60 HAWAII SPEC&C PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME A |
82824-33600 |
— | ||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
US $1.43 |
||
|
9011908665
|
9011908665
90119-08665 BOLT |
90119-08665 |
US $1.61 |
||
|
9017806018
|
9017806018
90178-06018 NUT,FLANGE |
90178-06018 |
from US $0.74 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.03 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
