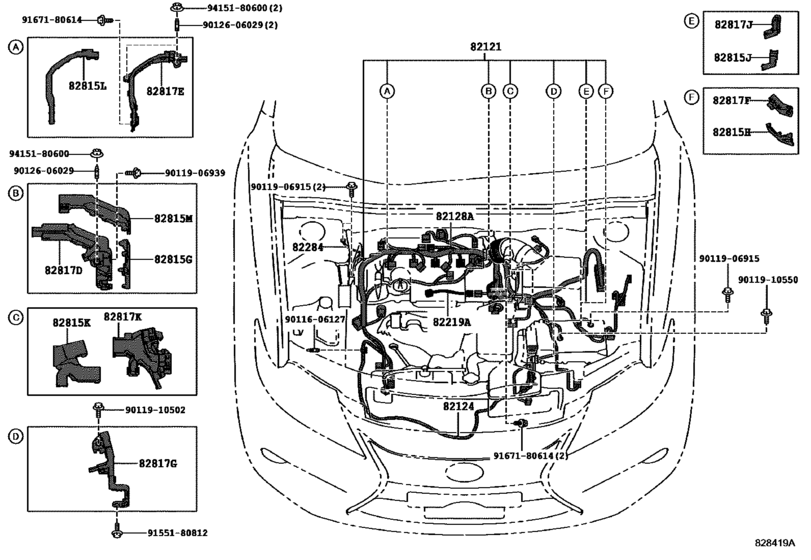

Wiring & Clamp ([06.2012 - ] ENGINE (1206- )AVV60) Diagram Toyota LEXUS ES
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- AVV60
- body
- SED
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- Model
- ES300 Hybrid
- From
- 06.2012
- No.of Doors
- 4D
- Vehicle Model
- ES300 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-33E30
Wire, Engine
[06.2012 - 07.2015] AVV60 |
82121-33E30 |
— | ||
|
82124
|
82124
82124-33090 Wire, Engine, No.4[06.2012 - 07.2015] AVV60 |
82124-33090 |
US $52.42 |
||
|
82128A
|
82128A
82128-33010 Wire, Engine, No.8[06.2012 - 07.2015] AVV60 |
82128-33010 |
US $9.61 |
||
|
82219A
|
82219A
82219-33060 Wire, Sensor[06.2012 - 07.2015] AVV60 |
82219-33060 |
US $4.80 |
||
|
82284
|
82284
82284-33070
Wire, Earth
[06.2012 - 07.2015] AVV60 |
82284-33070 |
— | ||
|
82815G
|
82815G
82815-33500 Cover, Wiring Harness Protector No.5[06.2012 - 07.2015] AVV60 |
82815-33500 |
US $9.76 |
||
|
82815H
|
82815H
82815-33510 Cover, Wiring Harness Protector No.6[06.2012 - 07.2015] AVV60 |
82815-33510 |
US $4.95 |
||
|
82815J
|
82815J
82815-33520 Cover, Wiring Harness Protector, No.7[06.2012 - 07.2015] AVV60 |
82815-33520 |
US $5.39 |
||
|
82815K
|
82815K
82815-33680 Cover, Wiring Harness Protector, No.8[06.2012 - 07.2015] AVV60 |
82815-33680 |
US $6.55 |
||
|
82815L
|
82815L
82815-33730 Cover, Wiring Harness Protector, No.9[06.2012 - 07.2015] AVV60 |
82815-33730 |
US $14.85 |
||
|
82815M
|
82815M
82815-33750 Cover, Wiring Harness Protector, No.10[06.2012 - 07.2015] AVV60 |
82815-33750 |
US $13.54 |
||
|
82817D
|
82817D
82817-33D80 Protector, Wiring Harness, No.5[06.2012 - 07.2015] AVV60 |
82817-33D80 |
US $19.66 |
||
|
82817E
|
82817E
82817-33E10 Protector, Wiring Harness, No.8[06.2012 - 07.2015] AVV60 |
82817-33E10 |
US $15.14 |
||
|
82817F
|
82817F
82817-33D90 Protector, Wiring Harness, No.6[06.2012 - 07.2015] AVV60 |
82817-33D90 |
US $6.99 |
||
|
82817G
|
82817G
82817-33E00 Protector, Wiring Harness, No.7[06.2012 - 07.2015] AVV60 |
82817-33E00 |
US $11.50 |
||
|
82817J
|
82817J
82817-33E20 Protector, Wiring Harness, No.9[06.2012 - 07.2015] AVV60 |
82817-33E20 |
US $7.13 |
||
|
82817K
|
82817K
82817-33G70 Protector, Wiring Harness, No.10[06.2012 - 07.2015] AVV60 |
82817-33G70 |
US $10.48 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.78 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9011906939
|
9011906939
90119-06939 Bolt, Hood Lock |
90119-06939 |
from US $0.64 |
||
|
9011910502
|
9011910502
90119-10502 BOLT WWASHER |
90119-10502 |
US $2.69 |
||
|
9011910550
|
9011910550
90119-10550 New Genuine Part |
90119-10550 |
US $1.79 |
||
|
9012606029
|
9012606029
90126-06029 Bolt, Stud(For Vacuum Transmitting Pipe) |
90126-06029 |
from US $0.66 |
||
|
9155180812
|
9155180812
91551-80812 BOLT FLANGE |
91551-80812 |
US $1.43 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.64 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
