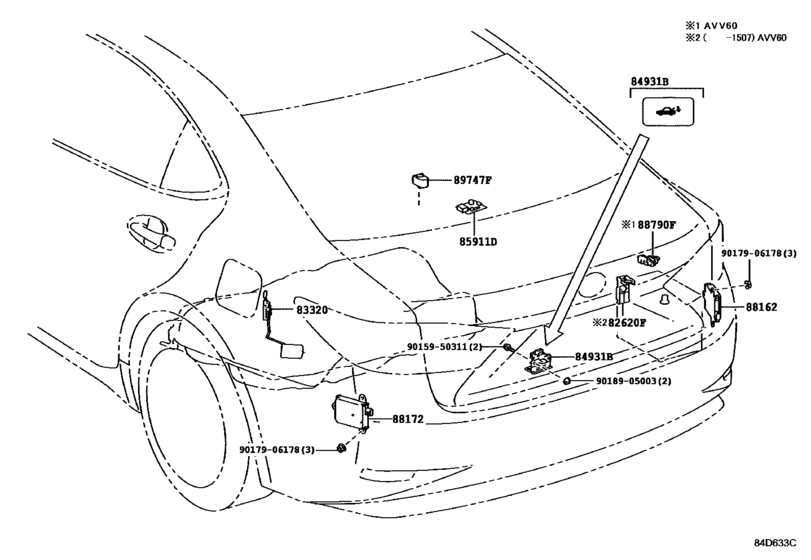

Switch & Relay & Computer ([06.2012 - ] FLOOR & LUGGAGE (1206- )) Diagram Toyota LEXUS ES
- Year
- 2012 - 2015
- Sales region
- Europe
- Frame
- AVV60
- body
- SED
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- Model
- ES300 Hybrid
- From
- 06.2012
- To
- 07.2015
- No.of Doors
- 4D
- Vehicle Model
- ES300 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82620F
|
82620F
82620-47070 Block Assy, Fusible LinkFUSIBLE LINK [06.2012 - 07.2015] AVV60 |
82620-47070 |
US $6.81 |
||
|
83320
|
83320
83320-33140 Gage Assy, Fuel Sender[06.2012 - 12.2014] ASV60,AVV60,GSV60 |
83320-33140 |
US $57.97 |
||
|
83320
|
83320
83320-33141
Gage Assy, Fuel Sender
[01.2015 - 07.2015] ASV60,AVV60,GSV60 |
83320-33141 |
— | ||
|
84931B
|
84931B
84930-50050 Switch, Door Control[06.2012 - 07.2015] AVV60,GSV60 EASY CLOSER DOOR-WITH(DOOR & TRUNK) & POWER TRUNK LID |
84930-50050 |
US $50.90 |
||
|
85911D
|
85911D
85911-30020 Relay, Rear Sunshade[06.2012 - 08.2013] AVV60 DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION); AVV60 DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION) |
85911-30020 |
US $235.87 |
||
|
88162
|
88162
88162-0W030
Sensor, Blind Spot Monitor, Rh
[06.2012 - 08.2013] ASV60,AVV60,GSV60 BLIND SPOT MONITOR-WITH |
88162-0W030 |
— | ||
|
88162
|
88162
88162-0W180
Sensor, Blind Spot Monitor, Rh
[08.2013 - 08.2014] ASV60,AVV60,GSV60 BLIND SPOT MONITOR-WITH |
88162-0W180 |
— | ||
|
88162
|
88162
88162-0W280
Sensor, Blind Spot Monitor, Rh
[08.2014 - 07.2015] ASV60,AVV60,GSV60 BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
88162-0W280 |
— | ||
|
88172
|
88172
88162-0W030
Sensor, Blind Spot Monitor, Rh
[06.2012 - 08.2013] ASV60,AVV60,GSV60 BLIND SPOT MONITOR-WITH |
88162-0W030 |
— | ||
|
88172
|
88172
88162-0W180
Sensor, Blind Spot Monitor, Rh
[08.2013 - 08.2014] ASV60,AVV60,GSV60 BLIND SPOT MONITOR-WITH |
88162-0W180 |
— | ||
|
88172
|
88172
88162-0W280
Sensor, Blind Spot Monitor, Rh
[08.2014 - 07.2015] ASV60,AVV60,GSV60 BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
88162-0W280 |
— | ||
|
88790F
|
88790F
88790-22131 Thermistor, Cooler[06.2012 - 07.2015] AVV60 |
88790-22131 |
from US $24.39 |
||
|
89747F
|
89747F
89747-52010 Buzzer, Wireless Door Lock[08.2014 - 07.2015] ASV60,AVV60,GSV60 BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
89747-52010 |
from US $29.60 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.72 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.78 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.13 |
