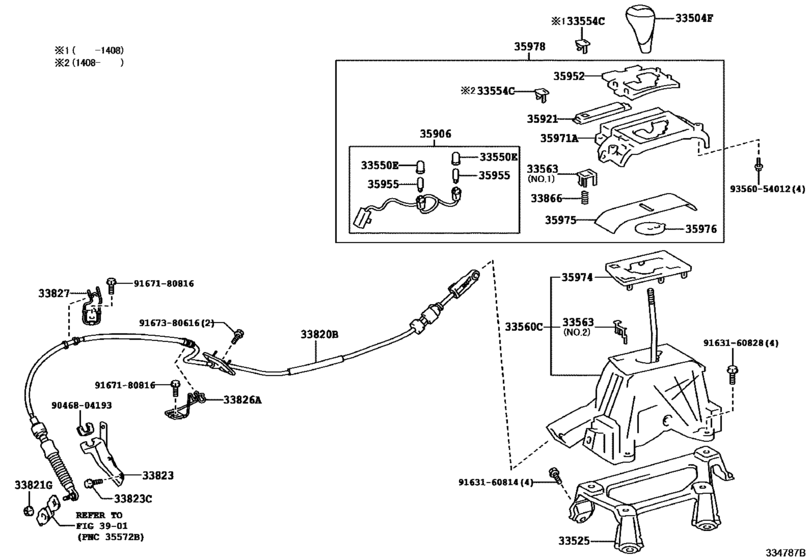

Shift Lever & Retainer ([08.2013 - 07.2015] (1308-1507)AVV60..RHD) Diagram Toyota LEXUS ES
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- AVV60
- body
- SED
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- ES300 Hybrid
- From
- 08.2013
- No.of Doors
- 4D
- Vehicle Model
- ES300 Hybrid
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-30341-C2 Knob Sub-Assy, Shift Lever[06.2012 - 07.2015] GSV60..GCC BLACK,TRIM0#,1#,2#,3#; GSV60..ARL;ASV60,AVV60..ARL,CHI,GCC BLACK,TRIM0#,1#,2#; GSV60..CHI;ASV60,AVV60..GEN STEERING WHEEL-3-SPOKE,LEATHER & BAMBOO,BLACK,TRIM0#,1#,2# |
33504-30341-C2 |
from US $91.76 |
||
|
33504F
|
33504F
33504-30352-25 Knob Sub-Assy, Shift Lever[07.2012 - 07.2015] GSV60..CHI;ASV60,AVV60..GEN BLACK & DK.BROWN,TRIM0#,1#,2#; GSV60..ARL,GCC;ASV60,AVV60..ARL,CHI,GCC STEERING WHEEL-3-SPOKE,LEATHER & WOOD,BLACK & DK.BROWN,TRIM0#,1#,2# |
33504-30352-25 |
US $240.24 |
||
|
33504F
|
33504F
33504-48110-C0 Knob Sub-Assy, Shift Lever[02.2017 -] ASV60,AVV60,GSV60 BLACK,TRIM1#,2#; ASV61 BLACK,TRIM1#,2#,40 |
33504-48110-C0 |
from US $64.75 |
||
|
33504F
|
33504F
33504-48110-E0 Knob Sub-Assy, Shift Lever[02.2017 -] ASV60,AVV60,GSV60 NOBLE BROWN,TRIM0#,5#; ASV61 NOBLE BROWN,TRIM0#,41,5# |
33504-48110-E0 |
US $76.96 |
||
|
33504F
|
33504F
33504-53110-C1 Knob Sub-Assy, Shift Lever[07.2015 - 01.2017] ASV60,AVV60,GSV60 BLACK,TRIM1#,2#; ASV61 BLACK,TRIM1#,2#,40 |
33504-53110-C1 |
US $77.34 |
||
|
33504F
|
33504F
33504-53110-E0 Knob Sub-Assy, Shift Lever[07.2015 - 01.2017] ASV60,AVV60,GSV60 NOBLE BROWN,TRIM0#,5#; ASV61 NOBLE BROWN,TRIM0#,41,5# |
33504-53110-E0 |
US $61.30 |
||
| replacement | |||||
|
33504F
|
33504F
33504-48110-E0 Knob Sub-Assy, Shift Lever[07.2015 - 01.2017] ASV60,AVV60,GSV60 NOBLE BROWN,TRIM0#,5#; ASV61 NOBLE BROWN,TRIM0#,41,5# |
33504-48110-E0 |
US $76.96 |
||
|
33525
|
33525
58123-33010 Support, Shift Lever[08.2013 - 07.2015] ASV60,AVV60,GSV60..RHD |
58123-33010 |
US $23 |
||
|
33550E
|
33550E
35956-48010 Cap, Position Indicator LampPOSITION INDICATOR LAMP [06.2012 - 07.2015] ASV60,AVV60,GSV60 |
35956-48010 |
US $1.92 |
||
|
33554C
|
33554C
33554-33110
Cover, Shift Lock Release Button
[08.2013 - 07.2015] ASV60,AVV60,GSV60..RHD |
33554-33110 |
— | ||
|
33554C
|
33554C
33554-48090 Cover, Shift Lock Release Button[07.2015 -] ASV6#,AVV60,GSV60 |
33554-48090 |
US $0.64 |
||
|
33560C
|
33560C
33560-33340
Lever Assy, Shift, Lower
[08.2013 - 07.2015] ASV60,AVV60,GSV60..RHD |
33560-33340 |
— | ||
|
33560C
|
33560C
33560-33360
Lever Assy, Shift, Lower
[07.2015 -] ASV60,AVV60,GSV60..RHD |
33560-33360 |
— | ||
|
33563
|
33563
33563-33340
Button, Shift Lock Release
[08.2013 - 07.2015] ASV60,AVV60,GSV60..RHD NO.2 |
33563-33340 |
— | ||
|
33563
|
33563
33563-33350
Button, Shift Lock Release
[08.2013 - 07.2015] ASV60,AVV60,GSV60..RHD NO.1 |
33563-33350 |
— | ||
|
33820B
|
33820B
33820-33350 Cable Assy, Transmission Control[06.2012 - 07.2015] AVV60 |
33820-33350 |
US $180.54 |
||
|
33821G
|
33821G
90179-08040 Nut, Cap(For Cylinder Head Cover)[01.2014 - 07.2015] ASV60,AVV60,GSV60 |
90179-08040 |
from US $1.13 |
||
|
33821G
|
33821G
90179-08054 Nut (For Connecting Rod Swivel)[07.2012 - 12.2013] AVV60 |
90179-08054 |
US $1.60 |
||
|
33823
|
33823
33823-33060 Bracket, Transmission Control Cable, No.1TRANSMISSION CONTROL CABLE, NO.1 [06.2012 - 07.2015] AVV60 |
33823-33060 |
US $12.67 |
||
|
33823C
|
33823C
91611-60814 Bolt[06.2012 - 07.2015] AVV60 |
91611-60814 |
from US $1.60 |
||
|
33823C
|
33823C
91671-80816 Bolt (For Transmission Control Cable Bracket)[07.2015 -] AVV60 |
91671-80816 |
from US $0.88 |
||
|
33826A
|
33826A
33826-33060 Bracket, Transmission Control Cable, No.2TRANSMISSION CONTROL CABLE, NO.2 [06.2012 - 07.2015] AVV60 |
33826-33060 |
US $3.79 |
||
|
33827
|
33827
33827-33050 Bracket, Transmission Control Cable, No.3[06.2012 - 07.2015] AVV60 |
33827-33050 |
US $2.91 |
||
|
33866
|
33866
33866-42020 Spring, Shift Lock Release[06.2012 - 07.2015] ASV60,AVV60,GSV60 |
33866-42020 |
from US $0.58 |
||
|
35906
|
35906
35906-33170
Wire Sub-Assy, Indicator Lamp
[06.2012 - 07.2015] ASV60,AVV60,GSV60 |
35906-33170 |
— | ||
|
35921
|
35921
35921-33260
Plate, Control Position Indicator
[08.2013 - 07.2015] ASV60,AVV60,GSV60..RHD |
35921-33260 |
— | ||
|
35952
|
35952
35952-33080
Lens, Position Indicator
[08.2013 - 07.2015] ASV60,AVV60,GSV60..RHD |
35952-33080 |
— | ||
|
35955
|
35955
35955-20010 Bulb, Position Indicator LampPOSITION INDICATOR LAMP [06.2012 - 07.2015] ASV60,AVV60,GSV60 |
35955-20010 |
US $4.64 |
||
|
35971A
|
35971A
35971-33220
Housing, Position Indicator, Upper
[08.2013 - 07.2015] ASV60,AVV60,GSV60..RHD |
35971-33220 |
— | ||
|
35974
|
35974
35974-33210
Housing, Position Indicator, Lower
[08.2013 - 07.2015] ASV60,AVV60,GSV60..RHD |
35974-33210 |
— | ||
|
35974
|
35974
35974-33230
Housing, Position Indicator, Lower
[07.2015 -] ASV60,AVV60,GSV60..RHD |
35974-33230 |
— | ||
|
35975
|
35975
35975-33150
Cover, Slide (For Position Indicator)
[06.2012 - 07.2015] ASV60,AVV60,GSV60 |
35975-33150 |
— | ||
|
35976
|
35976
35976-33160 Cover, Slide, No.2 (For Position Indicator)[06.2012 - 07.2015] ASV60,AVV60,GSV60 |
35976-33160 |
US $9.32 |
||
|
35978
|
35978
35978-33090
Indicator, Shift Position
[08.2013 - 07.2015] ASV60,AVV60,GSV60..RHD |
35978-33090 |
— | ||
|
35978
|
35978
35978-33170-C1
Indicator, Shift Position
[07.2015 -] AVV60..RHD BLACK,TRIM1#,2# |
35978-33170-C1 |
— | ||
|
35978
|
35978
35978-33170-E0
Indicator, Shift Position
[07.2015 -] AVV60..RHD NOBLE BROWN,TRIM0#,5# |
35978-33170-E0 |
— | ||
|
9046804193
|
9046804193
90468-04193 CLIP |
90468-04193 |
US $2.56 |
||
|
9163160814
|
9163160814
91631-60814 New Genuine Part |
91631-60814 |
US $1.28 |
||
|
9163160828
|
9163160828
91631-60828 BOLT WWASHER |
91631-60828 |
US $1.16 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.88 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.70 |
||
