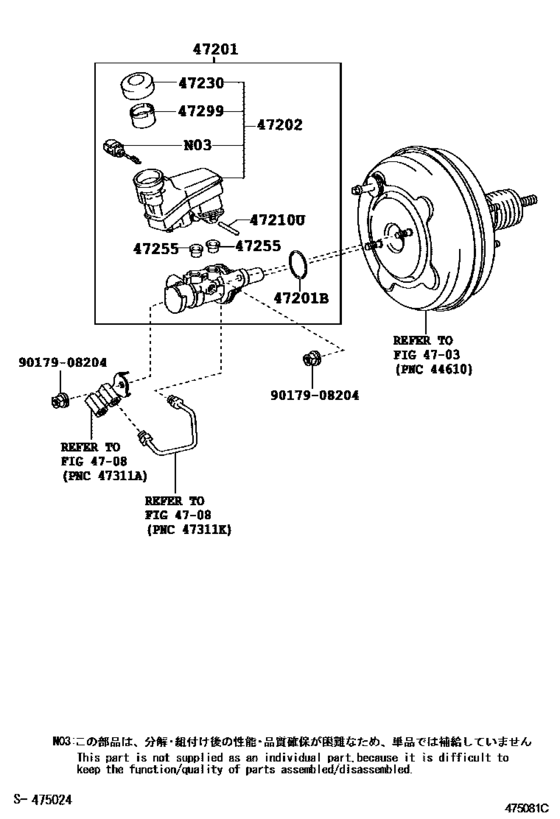

Brake Master Cylinder ([03.2006 - ] (0603- )) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- U.S.A.
- Frame
- GSV40
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- Model
- ES350
- From
- 03.2006
- To
- 06.2012
- Vehicle Model
- ES350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47201
|
47201
47201-33470 Cylinder Sub-Assy, Brake MasterBRAKE MASTER [03.2006 - 08.2009] GSV40 |
47201-33470 |
US $470.29 |
||
|
47201B
|
47201B
90015-AH001 Ring, O(For Brake Master Cylinder)[03.2006 - 08.2009] GSV40 |
90015-AH001 |
from US $1.16 |
||
|
47202
|
47202
47220-33060
Reservoir Sub-Assy, Brake Master Cylinder
[03.2006 - 08.2009] GSV40 |
47220-33060 |
— | ||
|
47210U
|
47210U
90015-AE401 Ring Pin, Brake Master Cylinder[03.2006 - 08.2009] GSV40 |
90015-AE401 |
US $3.20 |
||
|
47230
|
47230
47230-48090 Cap Assy, Brake Master Cylinder Reservoir Filler[03.2006 - 08.2009] GSV40 |
47230-48090 |
US $11.21 |
||
| replacement | |||||
|
47230
|
47230
47230-48091 Cap Assy, Brake Master Cylinder Reservoir Filler[03.2006 - 08.2009] GSV40 |
47230-48091 |
from US $5.21 |
||
|
47255
|
47255
90015-AT001 Grommet, Master Cylinder Reservoir[03.2006 - 08.2009] GSV40 |
90015-AT001 |
US $9.32 |
||
|
47299
|
47299
47299-52110 Strainer, Brake Master Cylinder Reservoir[03.2006 - 08.2009] GSV40 |
47299-52110 |
US $6.99 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
