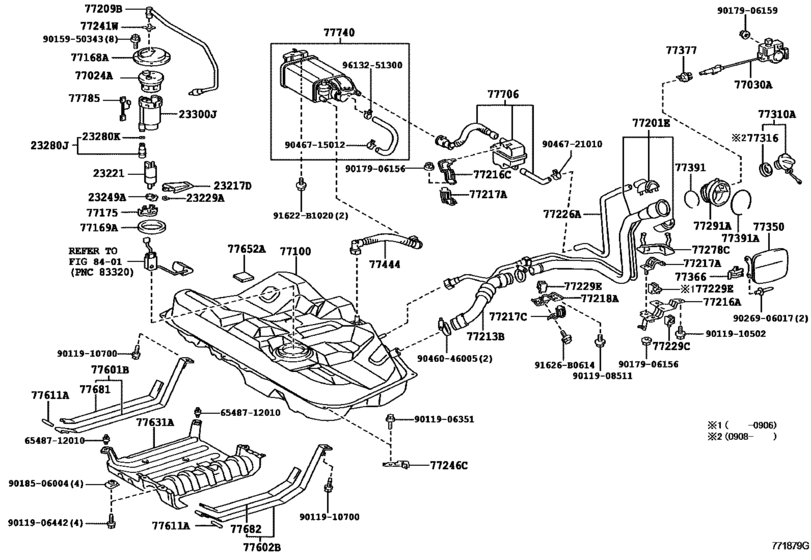

Fuel Tank & Tube ([03.2006 - ] FUEL TANK (0603- )) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- U.S.A.
- Frame
- GSV40
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- Model
- ES350
- From
- 03.2006
- To
- 06.2012
- Vehicle Model
- ES350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23217D
|
23217D
23217-0C010 Filter, Fuel Pump[03.2006 - 08.2009] 2GRFE..GSV40 |
23217-0C010 |
from US $10.53 |
||
|
23221
|
23221
23221-0A040 Pump Assy, Fuel[03.2006 - 08.2009] 2GRFE..GSV40 |
23221-0A040 |
from US $370.18 |
||
|
23229A
|
23229A
23219-03010 Clip(For Fuel Pump Filter)[03.2006 - 08.2009] 2GRFE..GSV40 |
23219-03010 |
US $2.55 |
||
|
23249A
|
23249A
23249-46180 Rubber, Cushion(For Fuel Pump)[03.2006 - 08.2009] 2GRFE..GSV40 |
23249-46180 |
from US $9.18 |
||
|
23280J
|
23280J
23280-20060 Regulator Assy, Fuel Pressure[03.2006 - 08.2009] 2GRFE..GSV40 |
23280-20060 |
from US $50.64 |
||
|
23280K
|
23280K
90301-07020 Ring, O(For Fuel Pressure Regulator)[03.2006 - 08.2009] 2GRFE..GSV40 |
90301-07020 |
from US $2.53 |
||
|
23300J
|
23300J
23300-21010 Filter Assy, Fuel[03.2006 - 08.2009] 2GRFE..GSV40 |
23300-21010 |
from US $60.61 |
||
|
77024A
|
77024A
77024-33030 Plate Sub-Assy, Fuel Suction[03.2006 - 08.2009] GSV40 |
77024-33030 |
from US $27.93 |
||
|
77030A
|
77030A
77030-33050 Lock Sub-Assy, Fuel Filler Opening Lid[03.2006 - 08.2009] GSV40 |
77030-33050 |
US $553.61 |
||
|
77100
|
77100
77001-33220
Tank Assy, Fuel
[03.2006 - 12.2006] GSV40 |
77001-33220 |
— | ||
| replacement | |||||
|
77100
|
77100
77001-33222
Tank Assy, Fuel
[03.2006 - 12.2006] GSV40 |
77001-33222 |
— | ||
|
77100
|
77100
77001-33221
Tank Assy, Fuel
[01.2007 - 09.2007] GSV40 |
77001-33221 |
— | ||
| replacement | |||||
|
77100
|
77100
77001-33222
Tank Assy, Fuel
[01.2007 - 09.2007] GSV40 |
77001-33222 |
— | ||
|
77100
|
77100
77001-33222
Tank Assy, Fuel
[10.2007 - 08.2009] GSV40 |
77001-33222 |
— | ||
|
77168A
|
77168A
77168-33050 Plate, Fuel Tank Vent Tube Set[03.2006 - 08.2009] GSV40 |
77168-33050 |
from US $18.91 |
||
|
77169A
|
77169A
77169-33020 Gasket, Fuel Pump Bracket[03.2006 - 08.2009] GSV40 |
77169-33020 |
from US $7.88 |
||
|
77175
|
77175
77175-33020 Support, Fuel Suction, No.2[03.2006 - 08.2009] GSV40 |
77175-33020 |
US $11.94 |
||
|
77201E
|
77201E
77201-33270
Pipe Sub-Assy, Fuel Tank Filler
[03.2006 - 08.2007] GSV40 |
77201-33270 |
— | ||
| replacements | |||||
|
77201E
|
77201E
77201-33271
Pipe Sub-Assy, Fuel Tank Filler
[03.2006 - 08.2007] GSV40 |
77201-33271 |
— | ||
|
77201E
|
77201E
77218-33061
Support, Fuel Tank Filler Pipe, No.3
[03.2006 - 08.2007] GSV40 |
77218-33061 |
— | ||
|
77201E
|
77201E
77201-33271
Pipe Sub-Assy, Fuel Tank Filler
[08.2007 - 08.2009] GSV40 |
77201-33271 |
— | ||
|
77209B
|
77209B
77209-33070
Tube Sub-Assy, Fuel Pump
[03.2006 - 08.2009] GSV40 |
77209-33070 |
— | ||
|
77213B
|
77213B
77213-33100 Hose, Fuel Tank To Filler PipeFUEL TANK TO FILLER PIPE [03.2006 - 07.2007] GSV40 |
77213-33100 |
US $39.17 |
||
|
77216A
|
77216A
77216-33020
Support, Fuel Tank Filler Pipe, No.1
[03.2006 - 07.2007] GSV40 |
77216-33020 |
— | ||
|
77216C
|
77216C
77216-33070
Support, Fuel Tank Filler Pipe, No.1
[03.2006 - 07.2007] GSV40 |
77216-33070 |
— | ||
|
77217A
|
77217A
77217-33020 Support, Fuel Tank Filler Pipe, No.2[03.2006 - 07.2007] GSV40 |
77217-33020 |
US $13.62 |
||
|
77217C
|
77217C
77217-33030 Support, Fuel Tank Filler Pipe, No.2[03.2006 - 07.2007] GSV40 |
77217-33030 |
US $10.19 |
||
|
77218A
|
77218A
77218-33060 Support, Fuel Tank Filler Pipe, No.3[03.2006 - 08.2007] GSV40 |
77218-33060 |
US $11.21 |
||
| replacements | |||||
|
77218A
|
77218A
77201-33250 Pipe Sub-Assy, Fuel Tank Inlet[03.2006 - 08.2007] GSV40 |
77201-33250 |
US $243.15 |
||
|
77218A
|
77218A
77201-33271
Pipe Sub-Assy, Fuel Tank Filler
[03.2006 - 08.2007] GSV40 |
77201-33271 |
— | ||
|
77218A
|
77218A
77218-33061
Support, Fuel Tank Filler Pipe, No.3
[03.2006 - 08.2007] GSV40 |
77218-33061 |
— | ||
|
77218A
|
77218A
77218-33061
Support, Fuel Tank Filler Pipe, No.3
[08.2007 - 08.2009] GSV40 |
77218-33061 |
— | ||
|
77226A
|
77226A
77226-33030
Tube, Fuel Tank Breather, No.6
[03.2006 - 07.2007] GSV40 |
77226-33030 |
— | ||
|
77229C
|
77229C
77229-33070
Clamp, Breather Tube
[03.2006 - 07.2007] GSV40 |
77229-33070 |
— | ||
|
77229E
|
77229E
77229-33060 Clamp, Breather Tube[06.2009 - 08.2009] GSV40 |
77229-33060 |
US $2.62 |
||
|
77241W
|
77241W
77241-33011 Clip, Tube Joint[03.2006 - 08.2009] GSV40 |
77241-33011 |
from US $0.84 |
||
|
77246C
|
77246C
77246-33020 Support, Fuel Main Tube[03.2006 - 08.2009] GSV40 |
77246-33020 |
US $5.53 |
||
|
77278C
|
77278C
77278-33020
Protector, Fuel Tank Filler Pipe, No.2
[03.2006 - 07.2007] GSV40 |
77278-33020 |
— | ||
|
77291A
|
77291A
77291-33080
Shield, Fuel Tank Filler Pipe
[03.2006 - 08.2009] GSV40 |
77291-33080 |
— | ||
|
77310A
|
77310A
77300-52040 Cap Assy, Fuel TankFUEL TANK [03.2006 - 08.2009] GSV40 |
77300-52040 |
from US $25.71 |
||
|
77316
|
77316
77316-52040 Gasket, Fuel Tank Cap[08.2009 -] GSV40 |
77316-52040 |
from US $4.12 |
||
|
77350
|
77350
77350-33200 Lid Assy, Fuel Filler OpeningFUEL FILLER OPENING [03.2006 - 08.2009] GSV40 |
77350-33200 |
from US $45.28 |
||
|
77366
|
77366
77360-30070 Spring, Fuel Filler Opening Lid Hinge[03.2006 - 08.2009] GSV40 |
77360-30070 |
from US $3.40 |
||
| replacement | |||||
|
77366
|
77366
77360-0R010 Spring Assy, Charging Port Opening Lid[03.2006 - 08.2009] GSV40 |
77360-0R010 |
US $8.45 |
||
|
77377
|
77377
77377-12050 Bracket, Fuel Lid Lock Control[03.2006 - 08.2009] GSV40 |
77377-12050 |
from US $3.76 |
||
|
77391
|
77391
77391-12020 Ring, Fuel Inlet Box[03.2006 - 08.2009] GSV40 |
77391-12020 |
from US $1.92 |
||
|
77391A
|
77391A
77391-35020 Ring, Fuel Inlet Box[03.2006 - 08.2009] GSV40 |
77391-35020 |
US $3.20 |
||
|
77444
|
77444
77404-33060
Hose, Fuel Tank Vent
[03.2006 - 08.2009] GSV40 |
77404-33060 |
— | ||
|
77601B
|
77601B
77601-33040 Band Sub-Assy, Fuel Tank, No.1 Rh[03.2006 - 08.2009] GSV40 |
77601-33040 |
US $25.79 |
||
|
77602B
|
77602B
77602-33050 Band Sub-Assy, Fuel Tank, No.1 Lh[03.2006 - 08.2009] GSV40 |
77602-33050 |
US $26.91 |
||
|
77611A
|
77611A
90250-08019 Pin (For Fuel Tank Band)[03.2006 - 08.2009] GSV40 |
90250-08019 |
US $2.62 |
||
|
77631A
|
77631A
77631-33070
Protector, Fuel Tank, Lower Center
[03.2006 - 08.2009] GSV40 |
77631-33070 |
— | ||
|
77652A
|
77652A
77652-33020 Cushion, Fuel Tank, No.2[03.2006 - 08.2009] GSV40 |
77652-33020 |
US $5.24 |
||
|
77681
|
77681
77681-32060 Seat, Fuel Tank Band, Rh[03.2006 - 08.2009] GSV40 |
77681-32060 |
US $38.30 |
||
|
77682
|
77682
77681-32060 Seat, Fuel Tank Band, Rh[03.2006 - 08.2009] GSV40 |
77681-32060 |
US $38.30 |
||
|
77706
|
77706
77706-33040
Filter Sub-Assy, Charcoal Canister
[03.2006 - 07.2007] GSV40 |
77706-33040 |
— | ||
|
77740
|
77740
77740-33170 Canister Assy, CharcoalCHARCOAL [03.2006 - 08.2009] GSV40 |
77740-33170 |
US $1,154.14 |
||
|
77785
|
77785
77785-52020 Harness, Fuel Pump[03.2006 - 08.2009] GSV40 |
77785-52020 |
from US $3.80 |
||
|
91622B1020
|
91622B1020
91622-B1020 Bolt(For Transaxle & Engine Setting) |
91622-B1020 |
US $2.15 |
||
|
91626B0614
|
91626B0614
91626-B0614 BOLT, W/WASHER |
91626-B0614 |
US $1.08 |
||
|
6548712010
|
6548712010
65487-12010 Clip, Corner Protector |
65487-12010 |
US $4.95 |
||
|
9011906351
|
9011906351
90119-06351 New Genuine Part |
90119-06351 |
US $0.96 |
||
|
9011906442
|
9011906442
90119-06442 BOLT WWASHER |
90119-06442 |
from US $0.89 |
||
|
9011908511
|
9011908511
90119-08511 BOLT |
90119-08511 |
US $6.09 |
||
|
9011910502
|
9011910502
90119-10502 BOLT WWASHER |
90119-10502 |
US $2.69 |
||
|
9011910700
|
9011910700
90119-10700 New Genuine Part |
90119-10700 |
US $2.34 |
||
|
9015950343
|
9015950343
90159-50343 SCREW, W-WASHER |
90159-50343 |
from US $0.67 |
||
|
9017906156
|
9017906156
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.63 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9018506004
|
9018506004
90185-06004
New Genuine Part
|
90185-06004 |
— | ||
|
9026906017
|
9026906017
90269-06017 RIVET |
90269-06017 |
from US $1.12 |
||
|
9046046005
|
9046046005
90460-46005 Clamp (For Fuel Filler Pipe) |
90460-46005 |
from US $2.62 |
||
|
9046715012
|
9046715012
90467-15012 Clip Or Clamp(For Ventilation Hose) |
90467-15012 |
US $3.58 |
||
|
9046721010
|
9046721010
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.43 |
||
|
9613251300
|
9613251300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
