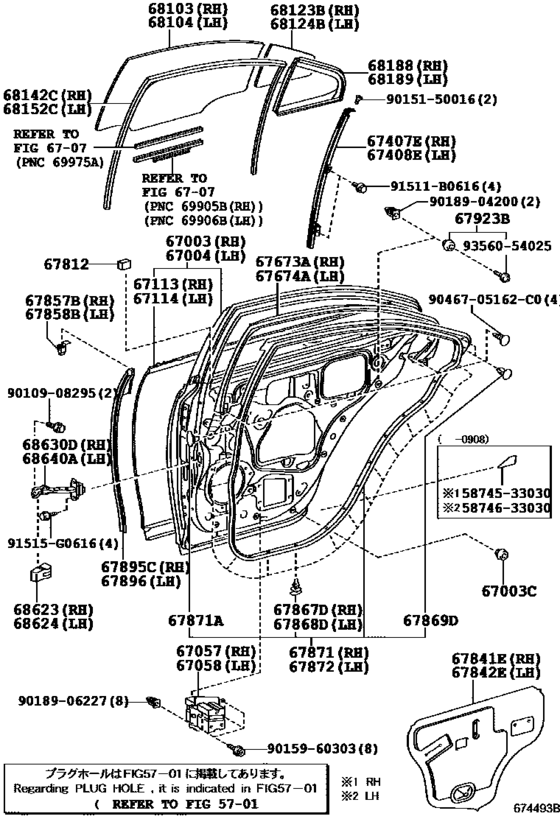

Rear Door Panel & Glass ([03.2006 - ] DOOR PANEL (0603- )) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- U.S.A.
- Frame
- GSV40
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- Model
- ES350
- From
- 03.2006
- To
- 06.2012
- Vehicle Model
- ES350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
67003-33180 Panel Sub-Assy, Rear Door, RhREAR DOOR, RH [08.2010 - 06.2012] GSV40 |
67003-33180 |
from US $959.92 |
||
|
67003
|
67003
67003-33190
Panel Sub-Assy, Rear Door, Rh
[03.2006 - 08.2009] GSV40 |
67003-33190 |
— | ||
| replacement | |||||
|
67003
|
67003
67003-33180 Panel Sub-Assy, Rear Door, RhREAR DOOR, RH [03.2006 - 08.2009] GSV40 |
67003-33180 |
from US $959.92 |
||
|
67003C
|
67003C
90541-09069 Cushion, Hood Bumper[03.2006 - 08.2009] GSV40 |
90541-09069 |
from US $2.17 |
||
|
67004
|
67004
67004-33180 Panel Sub-Assy, Rear Door, LhREAR DOOR, LH [08.2010 - 06.2012] GSV40 |
67004-33180 |
US $970.27 |
||
|
67004
|
67004
67004-33190
Panel Sub-Assy, Rear Door, Lh
[03.2006 - 08.2009] GSV40 |
67004-33190 |
— | ||
| replacement | |||||
|
67004
|
67004
67004-33180 Panel Sub-Assy, Rear Door, LhREAR DOOR, LH [03.2006 - 08.2009] GSV40 |
67004-33180 |
US $970.27 |
||
|
67057
|
67057
67057-33030
Reinforce Sub-Assy, Rear Door Inside Panel, Rh
[03.2006 - 08.2009] GSV40 |
67057-33030 |
— | ||
|
67058
|
67058
67058-33020
Reinforce Sub-Assy, Rear Door Inside Panel, Lh
[03.2006 - 08.2009] GSV40 |
67058-33020 |
— | ||
|
67113
|
67113
67113-33090 Panel, Rear Door, Outer RhREAR DOOR, OUTER RH [03.2006 - 08.2009] GSV40 |
67113-33090 |
US $334.13 |
||
|
67114
|
67114
67114-33090 Panel, Rear Door, Outer LhREAR DOOR, OUTER LH [03.2006 - 08.2009] GSV40 |
67114-33090 |
US $334.13 |
||
|
67407E
|
67407E
67407-33080
Bar Sub-Assy, Rear Door Window Division, Rh
[03.2006 - 08.2009] GSV40 |
67407-33080 |
— | ||
|
67408E
|
67408E
67408-33080
Bar Sub-Assy, Rear Door Window Division, Lh
[03.2006 - 08.2009] GSV40 |
67408-33080 |
— | ||
|
67673A
|
67673A
67673-33110
Garnish, Rear Door Frame, Rh
[03.2006 - 08.2009] GSV40 |
67673-33110 |
— | ||
|
67674A
|
67674A
67674-33110
Garnish, Rear Door Frame, Lh
[03.2006 - 08.2009] GSV40 |
67674-33110 |
— | ||
|
67812
|
67812
67812-33080
Pad, Rear Door Silencer
[03.2006 - 08.2009] GSV40 |
67812-33080 |
— | ||
|
67841E
|
67841E
67841-33090
Cover, Rear Door Service Hole, Rh
[03.2006 - 08.2009] GSV40 |
67841-33090 |
— | ||
|
67842E
|
67842E
67842-33090
Cover, Rear Door Service Hole, Lh
[03.2006 - 08.2009] GSV40 |
67842-33090 |
— | ||
|
67857B
|
67857B
67857-33050 Protector, Rear Door Panel, RhREAR DOOR PANEL, RH [03.2006 - 08.2009] GSV40 |
67857-33050 |
from US $2.51 |
||
|
67858B
|
67858B
67858-33050 Protector, Rear Door Panel, LhREAR DOOR PANEL, LH [03.2006 - 08.2009] GSV40 |
67858-33050 |
US $2.62 |
||
|
67867D
|
67867D
67867-12150 Clip(For Hood Air Intake Duct Seal)[03.2006 - 08.2009] GSV40 |
67867-12150 |
from US $1.79 |
||
|
67868D
|
67868D
67867-12150 Clip(For Hood Air Intake Duct Seal)[03.2006 - 08.2009] GSV40 |
67867-12150 |
from US $1.79 |
||
|
67869D
|
67869D
90467-06084 Clip(For Headlamp Cover Seal)[03.2006 - 08.2009] GSV40 |
90467-06084 |
from US $0.99 |
||
|
67871
|
67871
67871-33090
Weatherstrip, Rear Door, Rh
[03.2006 - 08.2009] GSV40 |
67871-33090 |
— | ||
|
67871A
|
67871A
90467-04034 Clip[03.2006 - 08.2009] GSV40 |
90467-04034 |
US $1.08 |
||
|
67872
|
67872
67872-33090 Weatherstrip, Rear Door, LhREAR DOOR, LH [03.2006 - 08.2009] GSV40 |
67872-33090 |
US $107.74 |
||
|
67895C
|
67895C
67895-33020 Weatherstrip, Rear Door, No.3 RhREAR DOOR, NO.3 RH [03.2006 - 08.2009] GSV40 |
67895-33020 |
from US $11.76 |
||
|
67896
|
67896
67896-33020 Weatherstrip, Rear Door, No.3 LhREAR DOOR, NO.3 LH [03.2006 - 08.2009] GSV40 |
67896-33020 |
from US $10.93 |
||
|
67923B
|
67923B
67923-24030 Cushion, Front Door Stiffener, No.1[03.2006 - 08.2009] GSV40 |
67923-24030 |
from US $5.89 |
||
|
67923B
|
67923B
67923-48060 Cushion, Front Door Stiffener, No.1FRONT DOOR STIFFENER, NO.1 [08.2009 -] GSV40 |
67923-48060 |
from US $2.39 |
||
|
68103
|
68103
68113-33160
Glass Sub-Assy, Rear Door, Rh
[03.2006 - 08.2009] GSV40 *UVCT,T=4.0,GREEN |
68113-33160 |
— | ||
|
68103
|
68103
68113-33250
Glass Sub-Assy, Rear Door, Rh
[04.2012 - 05.2012] GSV40 *UVCT,T=4.0,GREEN,BRAZIL SPEC |
68113-33250 |
— | ||
|
68104
|
68104
68114-33160
Glass Sub-Assy, Rear Door, Lh
[03.2006 - 08.2009] GSV40 *UVCT,T=4.0,GREEN |
68114-33160 |
— | ||
|
68104
|
68104
68114-33250
Glass Sub-Assy, Rear Door, Lh
[04.2012 - 05.2012] GSV40 *UVCT,T=4.0,GREEN,BRAZIL SPEC |
68114-33250 |
— | ||
|
68123B
|
68123B
68123-33070
Glass, Rear Door Quarter Window, Rh
[03.2006 - 08.2009] GSV40 *UVCT,T=4.0,GREEN |
68123-33070 |
— | ||
| replacement | |||||
|
68123B
|
68123B
68123-33071
Glass, Rear Door Quarter Window, Rh
[03.2006 - 08.2009] GSV40 *UVCT,T=4.0,GREEN |
68123-33071 |
— | ||
|
68123B
|
68123B
68123-33071
Glass, Rear Door Quarter Window, Rh
[08.2010 - 05.2012] GSV40 *UVCT,T=4.0,GREEN |
68123-33071 |
— | ||
|
68123B
|
68123B
68123-33150
Glass, Rear Door Quarter Window, Rh
[04.2012 - 05.2012] GSV40 *UVCT,T=4.0,GREEN,BRAZIL SPEC |
68123-33150 |
— | ||
|
68124B
|
68124B
68124-33070
Glass, Rear Door Quarter Window, Lh
[03.2006 - 08.2009] GSV40 *UVCT,T=4.0,GREEN |
68124-33070 |
— | ||
| replacement | |||||
|
68124B
|
68124B
68124-33071
Glass, Rear Door Quarter Window, Lh
[03.2006 - 08.2009] GSV40 *UVCT,T=4.0,GREEN |
68124-33071 |
— | ||
|
68124B
|
68124B
68124-33071
Glass, Rear Door Quarter Window, Lh
[08.2010 - 05.2012] GSV40 *UVCT,T=4.0,GREEN |
68124-33071 |
— | ||
|
68124B
|
68124B
68124-33150
Glass, Rear Door Quarter Window, Lh
[04.2012 - 05.2012] GSV40 *UVCT,T=4.0,GREEN,BRAZIL SPEC |
68124-33150 |
— | ||
|
68142C
|
68142C
68142-33100
Run, Rear Door Glass, Rh
[03.2006 - 08.2009] GSV40 |
68142-33100 |
— | ||
|
68152C
|
68152C
68152-33100
Run, Rear Door Glass, Lh
[03.2006 - 08.2009] GSV40 |
68152-33100 |
— | ||
|
68188
|
68188
68188-33050
Weatherstrip, Rear Door Quarter Window, Rh
[03.2006 - 08.2009] GSV40 |
68188-33050 |
— | ||
|
68189
|
68189
68189-33050
Weatherstrip, Rear Door Quarter Window, Lh
[03.2006 - 08.2009] GSV40 |
68189-33050 |
— | ||
|
68623
|
68623
68621-53010 Cover, Front Door Check, Rh[03.2006 - 08.2009] GSV40 |
68621-53010 |
from US $2.20 |
||
|
68624
|
68624
68622-53010 Cover, Front Door Check, Lh[03.2006 - 08.2009] GSV40 |
68622-53010 |
from US $2.20 |
||
|
68630D
|
68630D
68630-33080
Check Assy, Rear Door, Rh
[03.2006 - 08.2009] GSV40 |
68630-33080 |
— | ||
| replacement | |||||
|
68630D
|
68630D
68630-33081
Check Assy, Rear Door, Rh
[03.2006 - 08.2009] GSV40 |
68630-33081 |
— | ||
|
68630D
|
68630D
68630-33081
Check Assy, Rear Door, Rh
[06.2010 -] GSV40 |
68630-33081 |
— | ||
|
68640A
|
68640A
68640-33080
Check Assy, Rear Door, Lh
[03.2006 - 08.2009] GSV40 |
68640-33080 |
— | ||
| replacement | |||||
|
68640A
|
68640A
68640-33081 Check Assy, Rear Door, Lh[03.2006 - 08.2009] GSV40 |
68640-33081 |
US $103.36 |
||
|
68640A
|
68640A
68640-33081 Check Assy, Rear Door, Lh[06.2010 -] GSV40 |
68640-33081 |
US $103.36 |
||
|
91511B0616
|
91511B0616
91511-B0616 BOLTFLANGE |
91511-B0616 |
from US $0.84 |
||
| replacement | |||||
|
91511B0616
|
91511B0616
90080-10164 New Genuine Part |
90080-10164 |
US $2.67 |
||
|
91515G0616
|
91515G0616
91515-G0616 New Genuine Part |
91515-G0616 |
US $1.16 |
||
|
5874533030
|
5874533030
58745-33030 Protector, Quarter Panel, Front Rh |
58745-33030 |
from US $9.03 |
||
|
5874633030
|
5874633030
58746-33030 Protector, Quarter Panel, Front Lh |
58746-33030 |
US $10.92 |
||
|
9010908295
|
9010908295
90109-08295 BOLT |
90109-08295 |
from US $0.76 |
||
|
9015150016
|
9015150016
90151-50016 New Genuine Part |
90151-50016 |
US $1.43 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9018904200
|
9018904200
90189-04200 GROMMET SCREW |
90189-04200 |
from US $0.65 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.67 |
||
|
9046705162C0
|
9046705162C0
90467-05162-C0 Clip, Heater To Register Duct |
90467-05162-C0 |
from US $0.65 |
||
|
9356054025
|
9356054025
93560-54025 SCREW |
93560-54025 |
US $0.52 |
||
