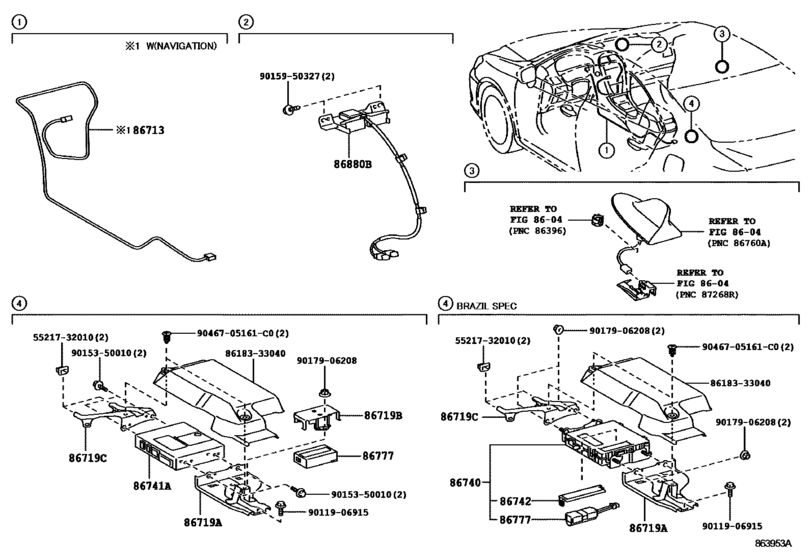

Telephone & Mayday ([08.2009 - 06.2012] (0908-1206)) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- U.S.A.
- Frame
- GSV40
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- Model
- ES350
- From
- 03.2006
- To
- 06.2012
- Vehicle Model
- ES350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86713
|
86713
86713-33020
Wire, Telephone Computer
[08.2009 -] GSV40 AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS); GSV40 AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP&MAYDAY SYSTEM-WITH(TELEMATICS) |
86713-33020 |
— | ||
|
86719A
|
86719A
86719-33080
Bracket, Telephone No.1
[08.2009 - 06.2012] GSV40 AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS); GSV40 AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP&MAYDAY SYSTEM-WITH(TELEMATICS); GSV40 MAYDAY SYSTEM-WITH(TELEMATICS) |
86719-33080 |
— | ||
|
86719B
|
86719B
86719-33090
Bracket, Telephone No.2
[08.2009 - 06.2012] GSV40 AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS); GSV40 AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP&MAYDAY SYSTEM-WITH(TELEMATICS); GSV40 MAYDAY SYSTEM-WITH(TELEMATICS) |
86719-33090 |
— | ||
|
86719C
|
86719C
86719-33100
Bracket, Telephone No.3
[08.2009 - 06.2012] GSV40 AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS); GSV40 AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP&MAYDAY SYSTEM-WITH(TELEMATICS); GSV40 MAYDAY SYSTEM-WITH(TELEMATICS) |
86719-33100 |
— | ||
|
86740
|
86740
86740-33040
Transceiver Assy, Telephone
[04.2011 - 06.2012] GSV40 BRAZIL SPEC&ANTI-THEFT SYSTEM-WITH(TRACKING & BLOCKING) |
86740-33040 |
— | ||
|
86741A
|
86741A
86741-53020
Transceiver, Telematics
[08.2009 - 10.2009] GSV40 AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS); GSV40 AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP&MAYDAY SYSTEM-WITH(TELEMATICS) |
86741-53020 |
— | ||
| replacement | |||||
|
86741A
|
86741A
86741-33050
Transceiver, Telematics
[08.2009 - 10.2009] GSV40 AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS); GSV40 AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP&MAYDAY SYSTEM-WITH(TELEMATICS) |
86741-33050 |
— | ||
|
86741A
|
86741A
86741-53021
Transceiver, Telematics
[11.2009 - 11.2010] GSV40 AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS); GSV40 AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP&MAYDAY SYSTEM-WITH(TELEMATICS) |
86741-53021 |
— | ||
| replacement | |||||
|
86741A
|
86741A
86741-33050
Transceiver, Telematics
[11.2009 - 11.2010] GSV40 AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS); GSV40 AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP&MAYDAY SYSTEM-WITH(TELEMATICS) |
86741-33050 |
— | ||
|
86741A
|
86741A
86741-53022
Transceiver, Telephone
[12.2010 - 06.2012] GSV40 AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS); GSV40 AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP&MAYDAY SYSTEM-WITH(TELEMATICS) |
86741-53022 |
— | ||
| replacement | |||||
|
86741A
|
86741A
86741-33050
Transceiver, Telematics
[12.2010 - 06.2012] GSV40 AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS); GSV40 AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP&MAYDAY SYSTEM-WITH(TELEMATICS) |
86741-33050 |
— | ||
|
86741A
|
86741A
86741-53030
Transceiver, Telematics
[08.2009 - 10.2009] GSV40 MAYDAY SYSTEM-WITH(TELEMATICS) |
86741-53030 |
— | ||
| replacement | |||||
|
86741A
|
86741A
86741-33040
Transceiver, Telematics
[08.2009 - 10.2009] GSV40 MAYDAY SYSTEM-WITH(TELEMATICS) |
86741-33040 |
— | ||
|
86741A
|
86741A
86741-53031
Computer Assy, Mayday
[11.2009 - 11.2010] GSV40 MAYDAY SYSTEM-WITH(TELEMATICS) |
86741-53031 |
— | ||
| replacement | |||||
|
86741A
|
86741A
86741-33040
Transceiver, Telematics
[11.2009 - 11.2010] GSV40 MAYDAY SYSTEM-WITH(TELEMATICS) |
86741-33040 |
— | ||
|
86741A
|
86741A
86741-53032
Computer Assy, Mayday
[12.2010 - 06.2012] GSV40 MAYDAY SYSTEM-WITH(TELEMATICS) |
86741-53032 |
— | ||
| replacement | |||||
|
86741A
|
86741A
86741-33040
Transceiver, Telematics
[12.2010 - 06.2012] GSV40 MAYDAY SYSTEM-WITH(TELEMATICS) |
86741-33040 |
— | ||
|
86742
|
86742
86742-02020
Cover, Transceiver
[04.2011 - 06.2012] GSV40 BRAZIL SPEC&ANTI-THEFT SYSTEM-WITH(TRACKING & BLOCKING) |
86742-02020 |
— | ||
|
86777
|
86777
86777-02010
Battery, Mayday
[04.2011 - 06.2012] GSV40 BRAZIL SPEC&ANTI-THEFT SYSTEM-WITH(TRACKING & BLOCKING) |
86777-02010 |
— | ||
|
86777
|
86777
86777-0W060
Battery, Mayday
[08.2009 - 06.2012] GSV40 AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS); GSV40 AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP&MAYDAY SYSTEM-WITH(TELEMATICS); GSV40 MAYDAY SYSTEM-WITH(TELEMATICS) |
86777-0W060 |
— | ||
| replacement | |||||
|
86777
|
86777
86777-76040 Battery, Mayday[08.2009 - 06.2012] GSV40 AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS); GSV40 AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP&MAYDAY SYSTEM-WITH(TELEMATICS); GSV40 MAYDAY SYSTEM-WITH(TELEMATICS) |
86777-76040 |
US $327.60 |
||
|
86880B
|
86880B
86880-0W050
Antenna Assy, Instrument Panel Integration
[04.2011 - 06.2012] GSV40 BRAZIL SPEC&ANTI-THEFT SYSTEM-WITH(TRACKING & BLOCKING) |
86880-0W050 |
— | ||
|
5521732010
|
5521732010
55217-32010 Retainer, Dash Panel Silencer |
55217-32010 |
US $1.60 |
||
|
8618333040
|
8618333040
86183-33040
Cover, Audio Rack
|
86183-33040 |
— | ||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
||
|
9017906208
|
9017906208
90179-06208 NUT |
90179-06208 |
US $1.25 |
||
|
9046705161C0
|
9046705161C0
90467-05161-C0 Clip |
90467-05161-C0 |
from US $0.86 |
||
